LED TV Studio Fresnel 60W Mini Theatre Stage Light

Customization:	Available
Kind:	Spot Light
Emitting Color:	Warm White

Basic Info

Model NO. FS-F60

Application Stage, Dance Effect Lights, Film and Television, Theatre

IP Rating IP20

Certification CE, RoHS, GS, CCC

Production Name LED TV Studio Fresnel 60W Mini Theatre Stage Light

Light Source 60W

LED Color Cool White/Warm White

Zooming Scale 35-50 Degree (Manual Zoom)

Voltage AC 100-240V

LED Lamp Imported LED

Color Rendering Index(CRI) Ra>=90

Cooling System No Noise Fan

Guarantee 2 Years Warranty

LED Lifetime Over 50000 Hours

Housing Color Black

Control Channels 1/3CH (Single Color)

Body Material Die-Casting Aluminum

Gross Weight 3.5 Kgs

Transport Package Flight Case or Carton

Specification Die-casting Aluminum

Origin China

HS Code 9405990000

Production Capacity 1000PCS/Month

Technical Parameter

Parameter	Specification Details
Product name:	Led TV Studio Fresnel 60w Mini Theatre Stage Light
Product Model:	FS-F60
Voltage:	AC100V-240V
Frequency:	50-60Hz
Power Consumption:	78W
Light Source:	60W
LED QTY':	1 piece
Light Color:	single WW or CW(100W)
LED Lamp:	Imported Led
Color Rendering Index(CRI):	Ra≥90
Lifetime:	Over 50,000 hours
DMX Channel:	1/3CH (Single color)
Control mode:	DMX 512, master and slave, auto running, sound mode
Environment Temperature:	-10°C-40°C
Cooling system:	No noise fan
Light body:	Die-casting Aluminum
Body color:	Black
IP Grade:	IP20
Guarantee:	2 years warranty
Net Weight:	3.5kg
Certification:	CE, RoHS

Production Features

Versatile Lighting Control: LED Fresnel Spotlight is a soft-edged spotlight with more control over beam angle than floods, but less control than profiles. It's from 35 ~50 degree. Go green and make a significant reduction in dimmer energy and air-conditioning power consumption.

Soft and Bright Effects: The fresnel spotlight lense is thread lens, make the light effect soft and bright. We have model of 60W LED. Control of the unit is facilitated via a 4 button menu and LCD display. The whole fixture is enclosed in a robust chassis, and is supplied with filter frame and barndoor.

Natural Color Temperature Mimicry: Fresnel spotlight color temperature produces the cool and warm color (3200 or 5600K), and the 2in1 version can be from 3200K to 5600K variable-white light that looks just like natural sunlight and mimics the performance of tungsten fixtures. And the beam angle can be manually adjusted between 35° and 50°. Their temperatures and tints can be tweaked to perfectly illuminate individual skin tones, so they look great in person and on camera. Both arrays output an incredible amount of lumens, for the brightest light in their respective color-temperature ranges.

High Quality Components & Quiet Operation: We use imported Led Lamp, with high CRI and bright effect. The power supply is from 100~240V with PFC protect, can protect the power well, for the theater use, we choose a better fan of copper tube which is without any noise, it's very quiet and hardly to hear any voice.

Adjustable Manual Zoom & Beam Shaping: Manual Zoom Led Fresnel Spotlight size of the beam can be adjusted by moving the lamp and reflector closer to or farther from the lens, by our designed of manual zoom function, push the button on the High Quality Led Fresnel Spotlight body to change zoom. Fresnel Stage Light beam can be shaped by the four barndoors attached to the front of the lantern.

Production Pictures

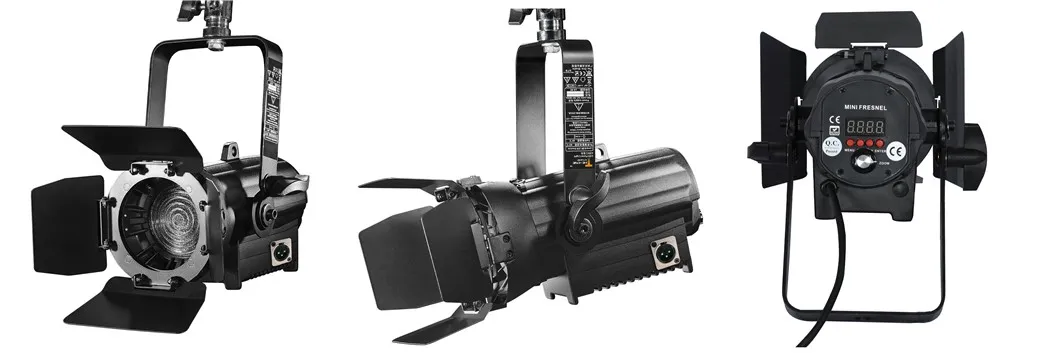

LED TV Studio Fresnel 60W Mini Theatre Stage Light Layout

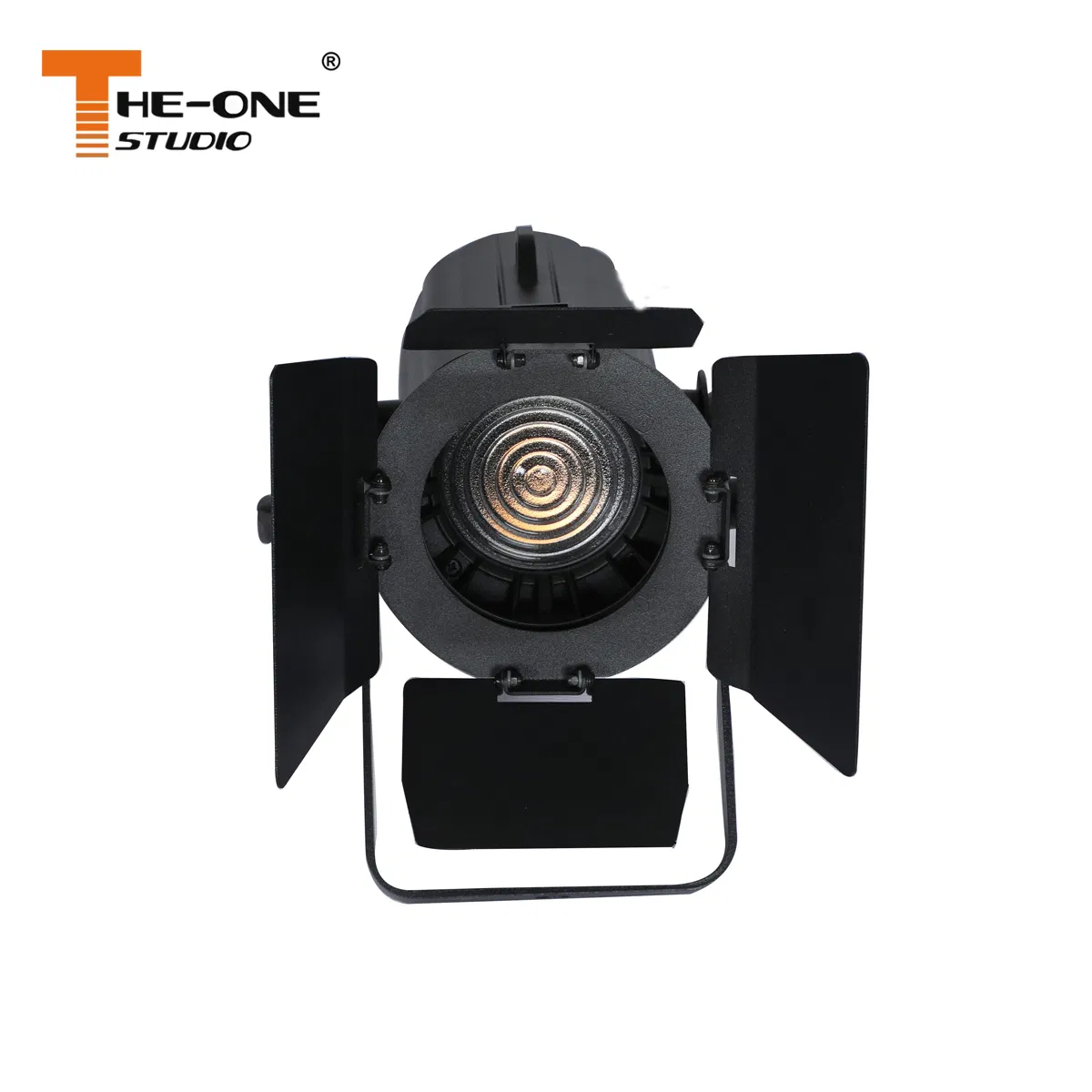

LED TV Studio Fresnel 60W Mini Theatre Stage Light Front View

LED TV Studio Fresnel 60W Mini Theatre Stage Light Side View

LED TV Studio Fresnel 60W Mini Theatre Stage Light Details

LED TV Studio Fresnel 60W Mini Theatre Stage Light Accessories

Packaging & Shipping

Packing: PE bag with Kraft carton packing, using EPE for safeguard that can protect the light not be damaged, OR flightcase.

Shipping method: DHL / UPS / Fedex, by air transportation or by sea transportation.

Our Services

Warranty: 2 Years

After Sales Service: First, send a picture or video to make sure what the problem is. If it can be solved with parts, we will send replacements for free and bear the shipping fee. If it cannot be solved, discounts will be given on the next order for compensation.

Inquiries: Detailed replies provided within 24 hours. Well-trained sales & after-sales representatives are available to assist.

OEM Services: Custom logo printing on product and packaging is available.

Frequently Asked Questions (FAQ)

1. How can I get the price list?

Please send us an inquiry with the details of the unit you are looking for (including your name, details, etc.), and we will send you the pricing details as soon as possible.

2. How do I place an order?

Kindly send us your order details via message. We will confirm the Proforma Invoice (PI) with you. We will need the delivery details (name, address, phone, destination, transportation way) and product specifications (item number, size, quantity, or other requirements).

3. What is the shipping method and shipping time?

Products can be shipped by Sea (20-30 days), by Air (5-8 days), or by Express (3-5 days). The chosen method is based on package weight, size, and your requirements.

4. What are the payment methods?

We accept Western Union and T/T (either full payment at once or a 30% deposit before production with the balance paid before delivery). We suggest transferring the full amount at one time to minimize bank process fees.

5. Does the unit come with certifications?

Yes, our products have successfully passed CE, RoHS, TUV, CCC, UL, and other international standard certifications.

6. What is the warranty policy?

We offer a two-year warranty. We will provide free spare parts for replacement if any components break down within the two-year period.
