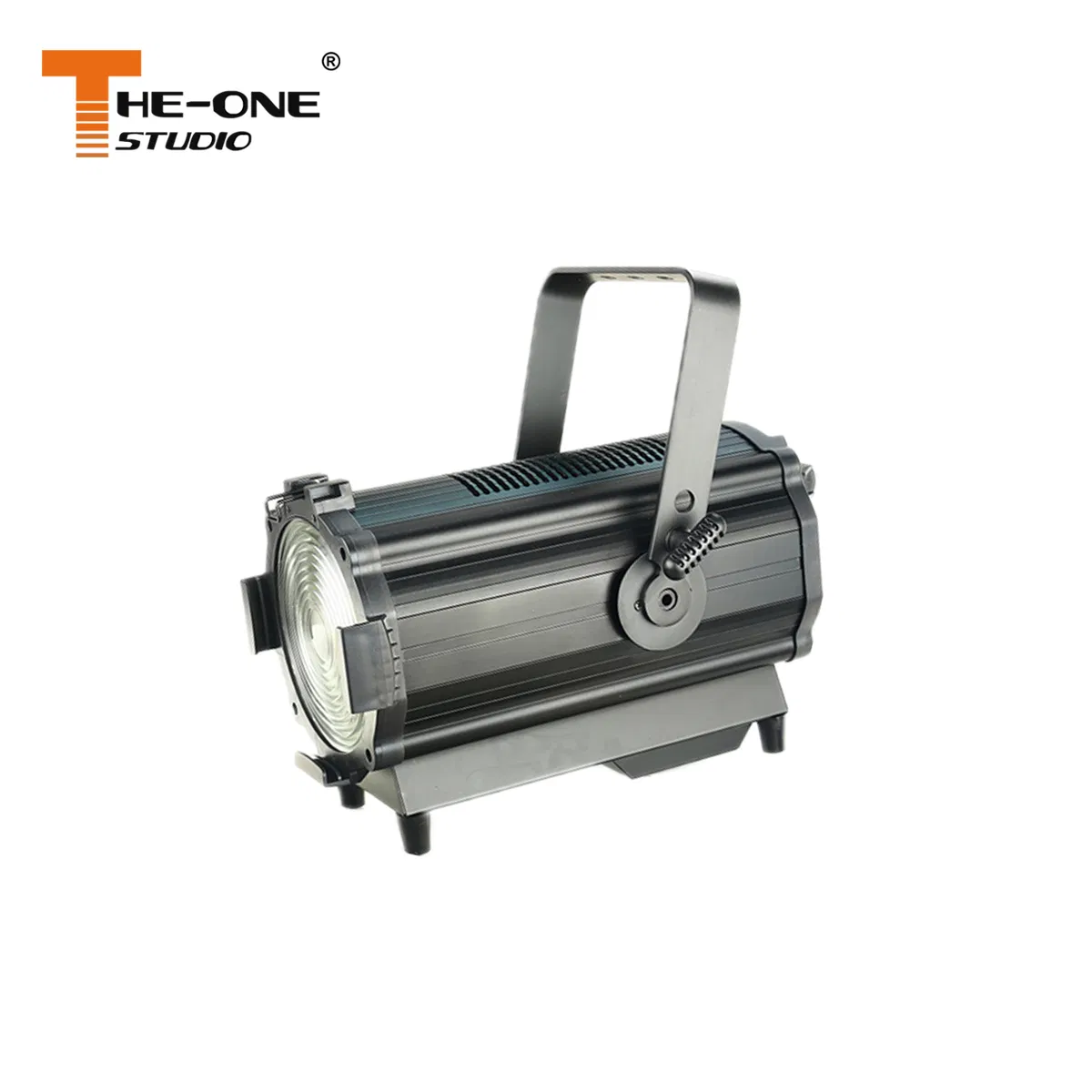

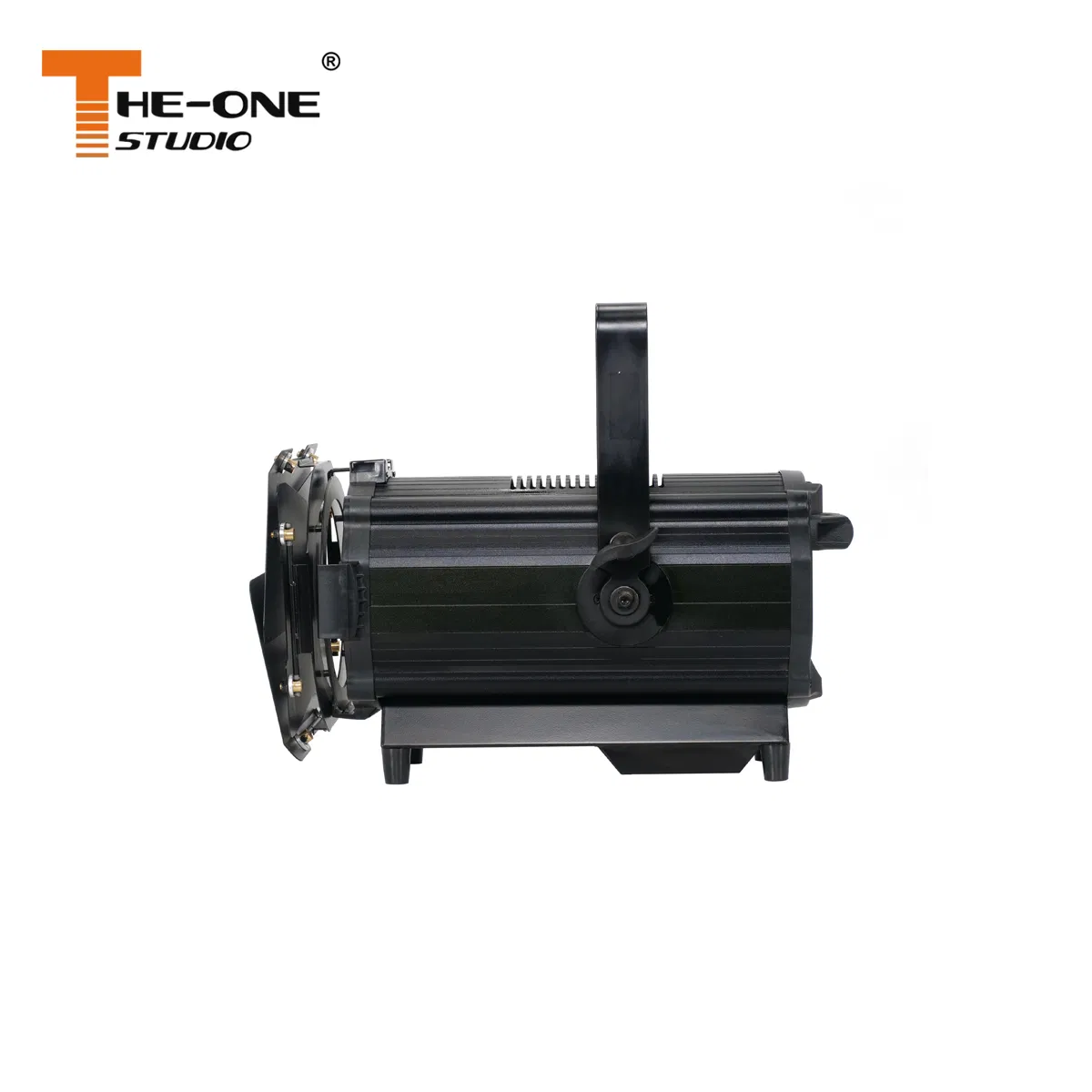

Auto Zoom LED Fresnel Light with Japan LED Lamp

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info

Model NO.
FS-F300MZ
Application
Stage, Dance Effect Lights, Film and Television, Theatre
IP Rating
IP20
Certification
CE, RoHS, GS, CCC, ETL
Production Name
Auto Zoom LED Fresnel Light with Japan LED Lamp
Light Source
150W/200W/300W
LED Color
Cool White/Warm White/200W(2in1, 3in1, 4in1)
Zooming Scale
15-50 Degree (Manual or Auto)
LED Lamp
Japan Citizen
Color Rendering Index(CRI)
Ra>=92
Control Channels
1/3CH (Single Color), 2/5CH(2in1)
Cooling System
No Noise Fan of Pccooler
Gross Weight
10kgs
Guarantee
2 Years Warranty
Body Color
Black or White
LED Life Time
Over 50000 Hours
House Material
Die-Casting Aluminum
Net Weight
8.5kgs
IP Grade
IP 20
Transport Package
Flight Case or Carton
Specification
Aluminum Alloy
Origin
China
HS Code
9405990000
Production Capacity
1000PCS/Month

Product Description

Auto zoom Led Fresnel light with Japan LED Lamp

Technical Parameters:

Parameter Details
Product Name DMX studio video led fresnel light
Product Model FS-F300MZ
Voltage AC100V-240V
Frequency 50-60Hz
Power Consumption 150W/200W/300W
Light Source 150W/200W/300W
LED QTY' 1 piece
Light Color single WW or CW(150W/200W/300W), 200W (2IN1/4IN1) optional
LED Lamp Japan Citizen
Color Rendering Index(CRI) Ra≥90
Lifetime Over 50,000 hours
DMX Channel 1/3CH (Single color), 2/5CH(2in1),4/8CH(4in1)
Control mode DMX 512, master and slave, auto running, sound mode
Environment Temperature -10°C-40°C
Cooling system No noise fan of Pccooler
Light body Aluminum Alloy
Body color Black
IP Grade IP20
Guarantee 2 years warranty
Net Weight 8.5kg
Certification CE, RoHS

Production Features

The LED Fresnel Spotlight is a soft-edged spotlight with more control over beam angle than floods, but less control than profiles. It's from 15 ~50 degree. Go green and make a significant reduction in dimmer energy and air-conditioning power consumption.

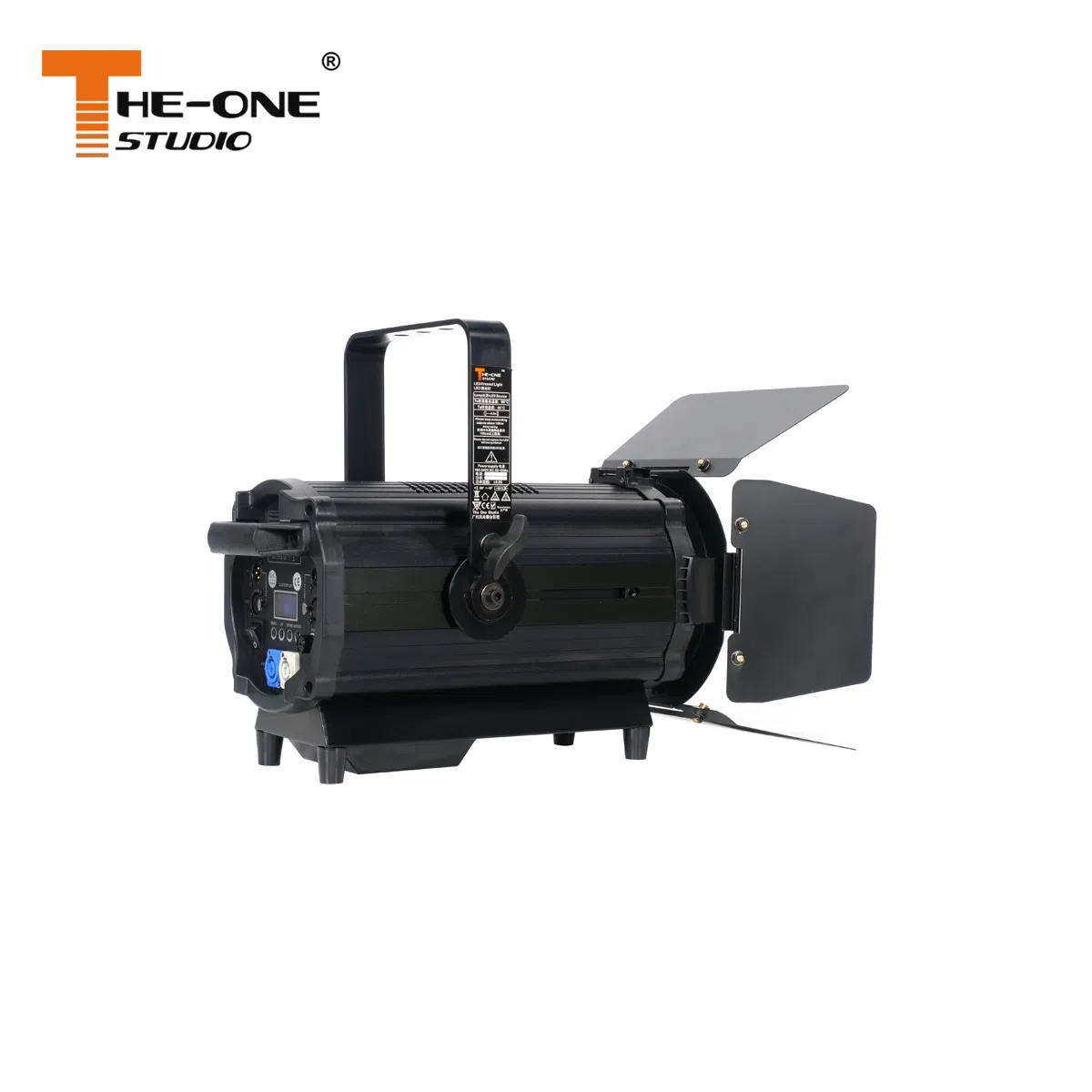

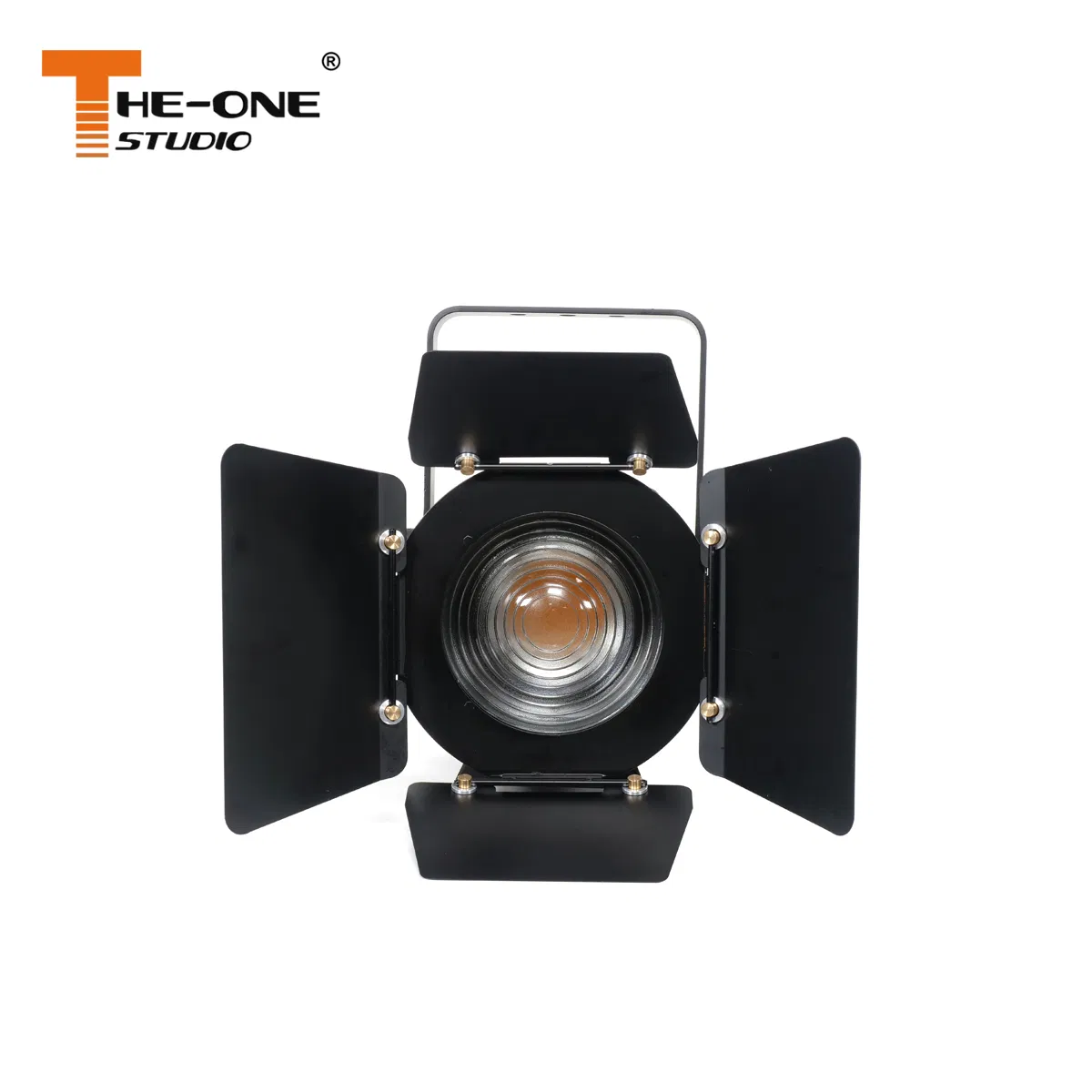

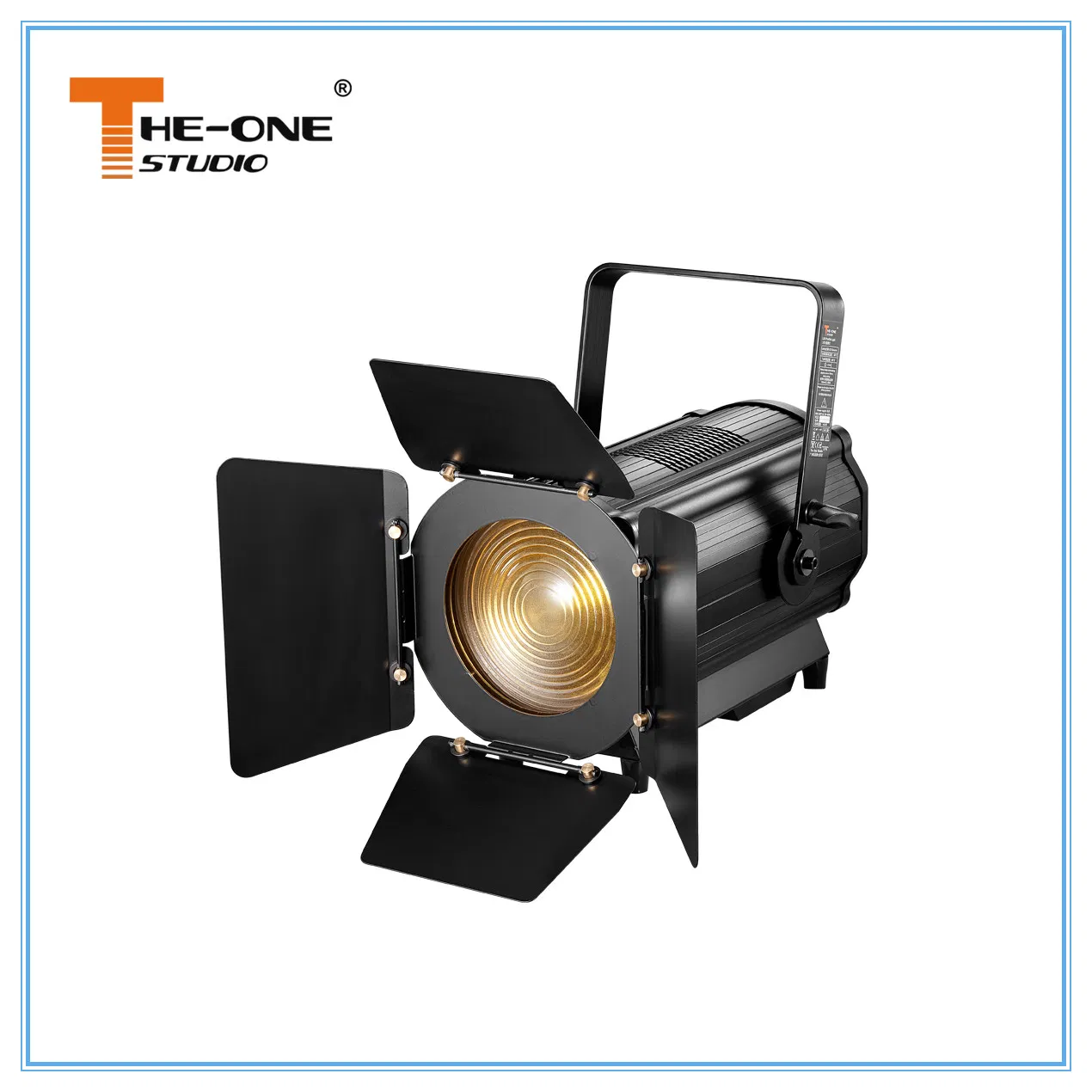

The LED Fresnel Spotlight with zoom size of the beam can be adjusted by moving the lamp and reflector closer to or farther from the lens, by our designed of DMX or Manual zoom function, dont need to push the button on the light body, but can change zoom on controller. The beam can be shaped by the four barndoors attached to the front of the lantern.
Connections in and through as well as 3 and 5pin DMX on board only increases the flexibility of these workhorses. And can accommodate barn doors for glare reduction and beam shaping. Selectable and smooth 16-bit dimming curves make it compatible with older, traditional theater Fresnels. Focusing is a breeze even without a board operator, thanks to manual overrides for zoom and dimming on the back of the unit. It is a perfect fit in theaters, studios or other environments that require smooth, even washes of light.
The LED Fresnel Spotlight for photography case is made by the sturdy and durable aluminium alloy, with the 3pin and 5pin DMX connection, can be fixed different clients demand. And the lense is thread lens, make the light effect soft and bright. We have model of 150W/200W/300W LED, producing an output similar to a 750W or 1000W lamp. Control of the unit is facilitated via a 4 button menu and LCD display. The whole fixture is enclosed in a robust chassis, and is supplied with filter frame and barndoor.
High Power Spotlight color temperature produces the cool and warm color (3200 or 5600K), and the 2in1 version can be from 3200K to 5600K variable-white light that looks just like natural sunlight and mimics the performance of tungsten fixtures. And the beam angle can be DMX adjusted between 15° and 50°. LED Spotlight temperatures and tints can be tweaked to perfectly illuminate individual skin tones, so they look great in person and on camera. Both arrays output an incredible amount of lumens, for the brightest light in their respective color-temperature ranges.
High Power LED Fresnel Spotlight power supply is from 100~240V with PFC protect, can protect the power well, for the theater use, we choose a better fan of copper tube which is without any noise, it's very quiet and hardly to hear any voice.

Packaging & Shipping

Packing: PE bag with Kraft carton packing, using the EPE for safeguard that can protect the light not be damaged OR flightcase
Shipping method: DHL / UPS / Fedex , by air transportation or by sea transportation

Our Services

Warranty: 2 Years
After-Sales Service: First, send a picture or video to us to determine the product problem. If the problem can be solved using parts, we will send replacements for free and bear the shipping fee. If the problem cannot be solved, we will offer discounts on your next order as compensation.
Inquiry Response: For all inquiries about us or our products, we will reply to you in detail within 24 hours.
Communication: We have well-trained and professional sales & after-sale service staff who can speak English fluently.
OEM Services: We offer OEM services. We can print your own logo on the product and packaging.

Frequently Asked Questions

1. How can I get the price list?
Please contact us with details of the units you are looking for (including product name, requirements, etc.), and we will send you the price list as soon as possible.
2. How do I place an order?
Please send us your order details. We will confirm the Proforma Invoice (PI) with you. We need to know the delivery information (destination, transport method) and product specifications (item number, size, quantity, etc.).
3. What is the shipping method and shipping time?
Products can be shipped by Sea (takes 20-30 days), by Air (takes 5-8 days), or by Express (takes 3-5 days). The selected method depends on the package weight, dimensions, and customer requirements.
4. What is the payment method?
We accept Western Union and T/T (100% total payment, or 30% deposit before production and the remaining balance before delivery). We suggest transferring the full value at once to avoid multiple bank transaction fees.
5. Does the unit come with certifications?
Yes, our products have successfully passed certifications including CE, RoHS, TUV, CCC, UL, and others.
6. What does the warranty cover?
Our warranty period is two years. If any component breaks within this two-year period, we will provide free spare parts for replacement.
