200W  Led Fanless  Studio Fresnel Light

Basic Info.

Model NO. FS-F200SL

Application Stage, Dance Effect Lights, Film and Television, Theatre

IP Rating IP20

Certification CE, RoHS, GS, CCC

LED Life Time Over 50,000 Hours

Light Source 200W WW/CW

Max Power 200W

Zooming Scale 15-50 Degree

Color Temperature 3200K/5600K

Color Rendering Index (CRI) Ra >= 92

Control Channels 1/2CH

Cooling System Fan-Less No Noise

Gross Weight 14.5kgs

Guarantee 2 Years Warranty

Body Color Black or White

House Material Die-Casting Aluminum

Control Model DMX, Auto Run and Master

Transport Package Flight Case or Carton

Specification Aluminum Alloy

Origin China

HS Code 9405491000

Production Capacity 1000PCS/Month

Product Description

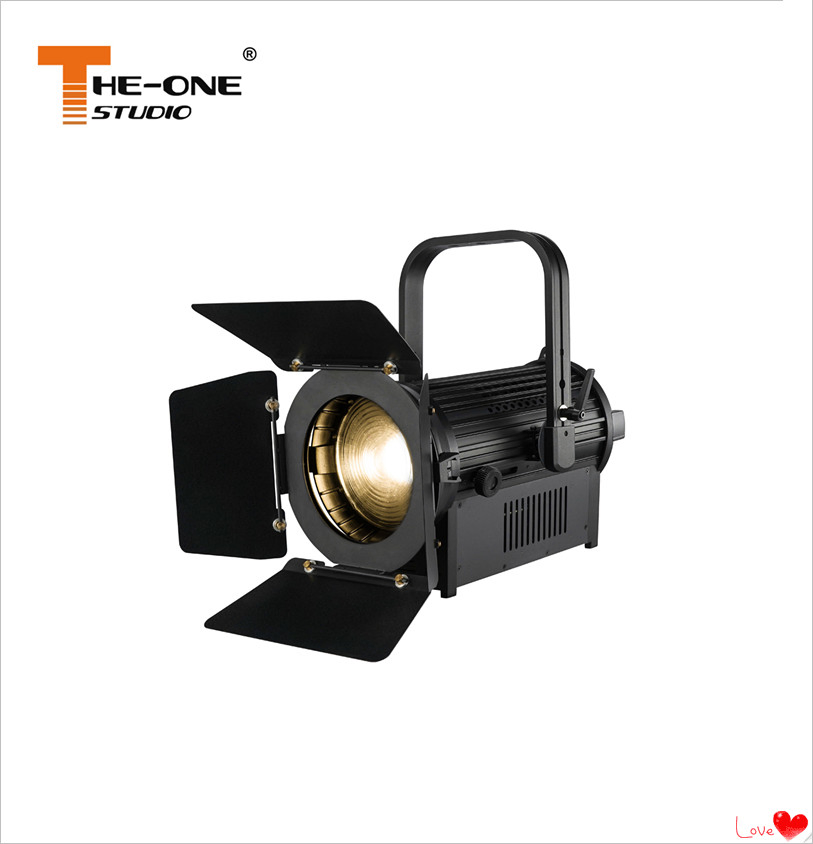

200W Led Fanless Studio Fresnel Light

Technical Parameter:

Product Name	200W Led Fanless Studio Fresnel Light
Product Model	FS-F200SL
Voltage	AC100V-240V
Frequency	50-60Hz
Max Power	200W
Light Source	200W LED lamp
LED QTY	1 piece
Light Color	WW/CW
Color Temperature	3200K/5600K
Color Rendering Index (CRI)	Ra >= 90
Lifetime	Over 50,000 hours
DMX Channel	1/2
Control Mode	DMX 512, master and slave, auto running, sound mode
Environment Temperature	-10°C - 40°C
Cooling System	Fan-less No noise
Light Body	Aluminum Alloy
Body Color	Black
IP Grade	IP20
Guarantee	2 years warranty
Net Weight	13.5kg
Certification	CE, RoHS

Production Features:

New Fanless LED fixture - a fresnel feature with a high power 200W LED lamp, adjustable color temperature 3200K or 5600K. This model comes with Die-casting Aluminum body, with the zoom lens options from 15°-50° by Manual.

The powerful LED Fresnel which with high CRI make it an ideal LED replacement for aging incandescent Fresnels. You can have it with manual zoom. Enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems!

Control features of the Fanless Fresnel includes manual zoom, DMX Controlled electronic strobe, 16bit dimming and selectable dimming curve modes. This LED fixture produces flicker free operation making it ideal for use in TV and FILM. It also offers adjustable refresh frequency and gamma brightness, IP rated 3pin DMX and power in/out connections.

For the Display, we using the LCD touch screen, more convenient operation control products. There are 4 kinds of dimmer curve: Standard mode, Incandescent mode, Quick mode and Linear mode. The frequency from 500 Hz ~ 25000 Hz, flicker-free on the camera, very suitable for all different kinds of event: studio room, stage, TV show and so on.

The Fanless Fresnel Spotlight power supply is from 100~240V with PFC protect, can protect the power well, for the theatre use, we choose Fan-less cooling system no voice.

Production Pictures

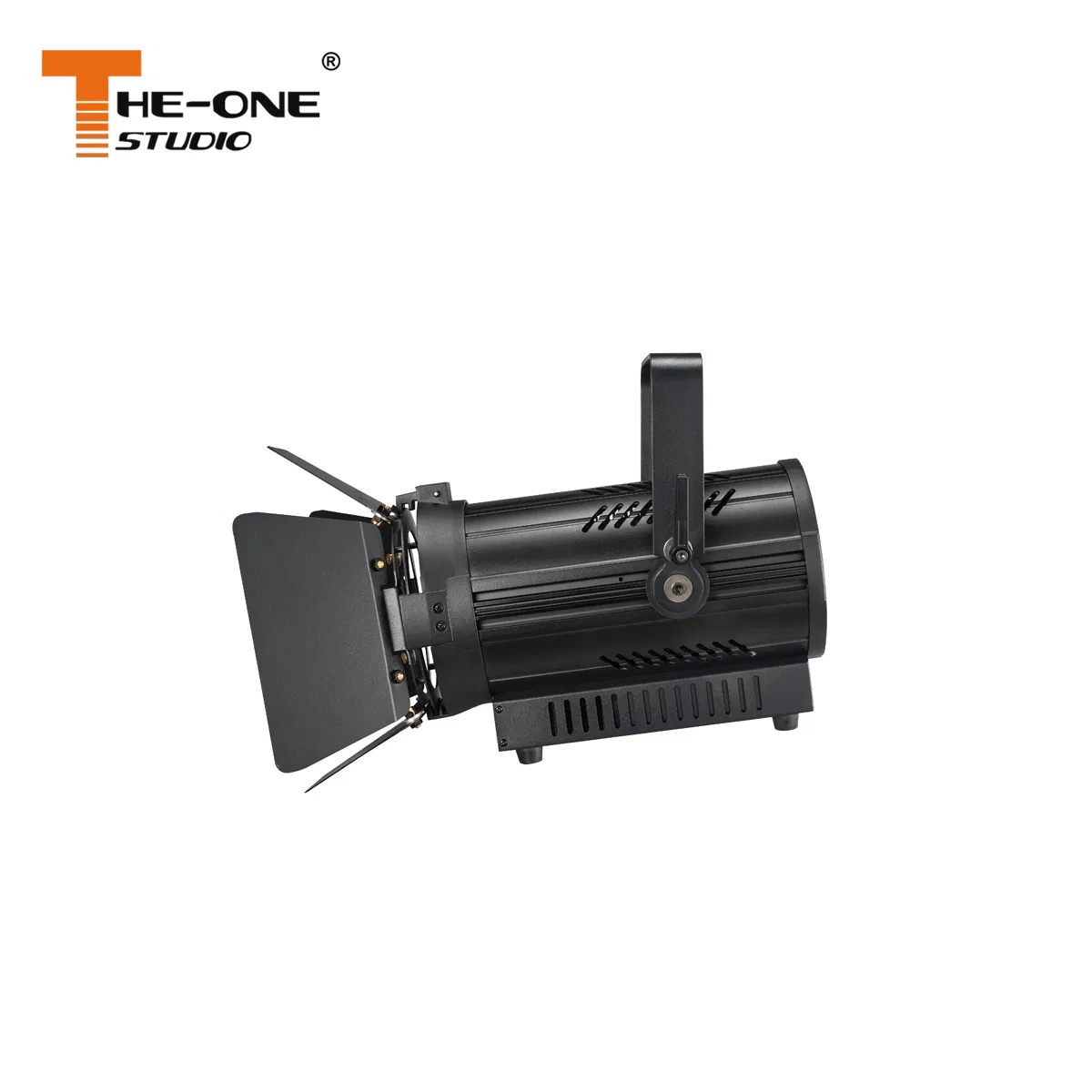

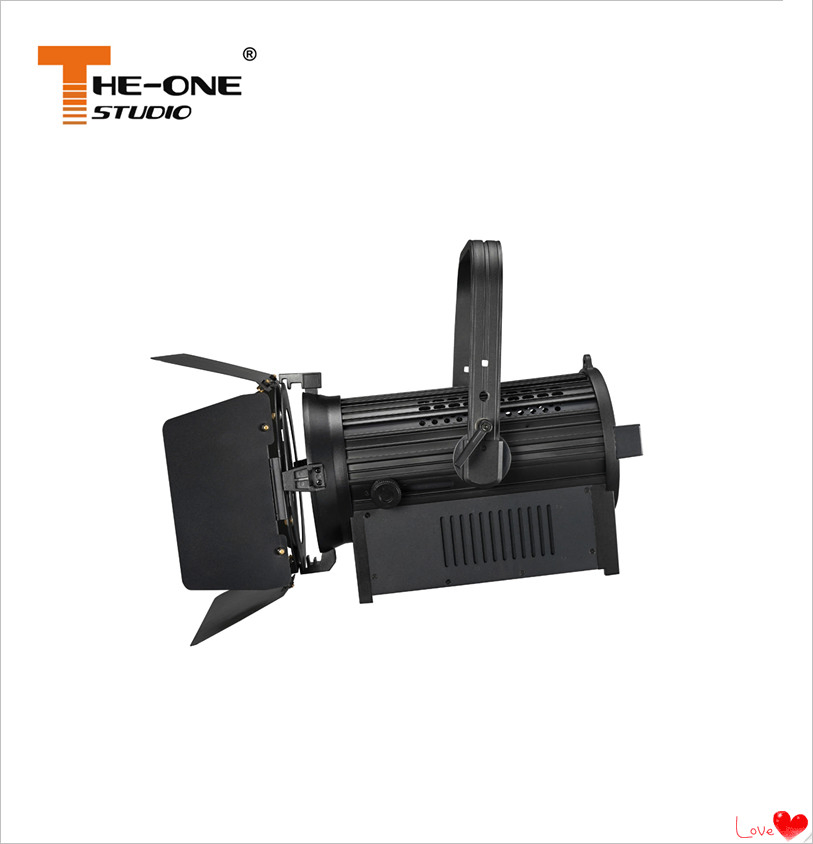

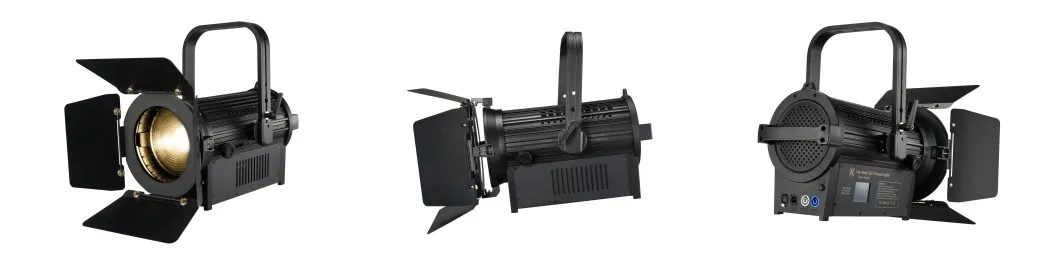

200W Led Fanless Studio Fresnel Light Side View

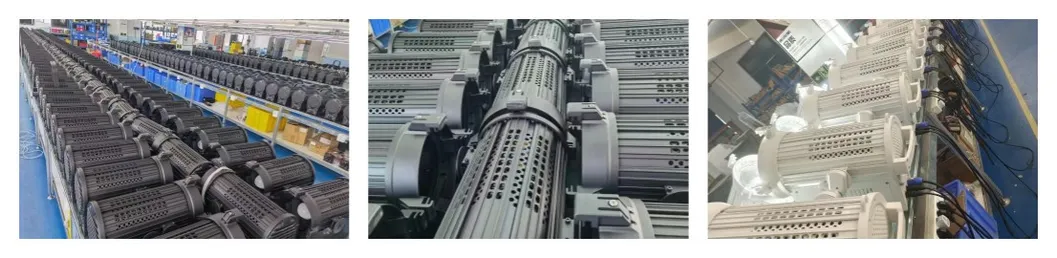

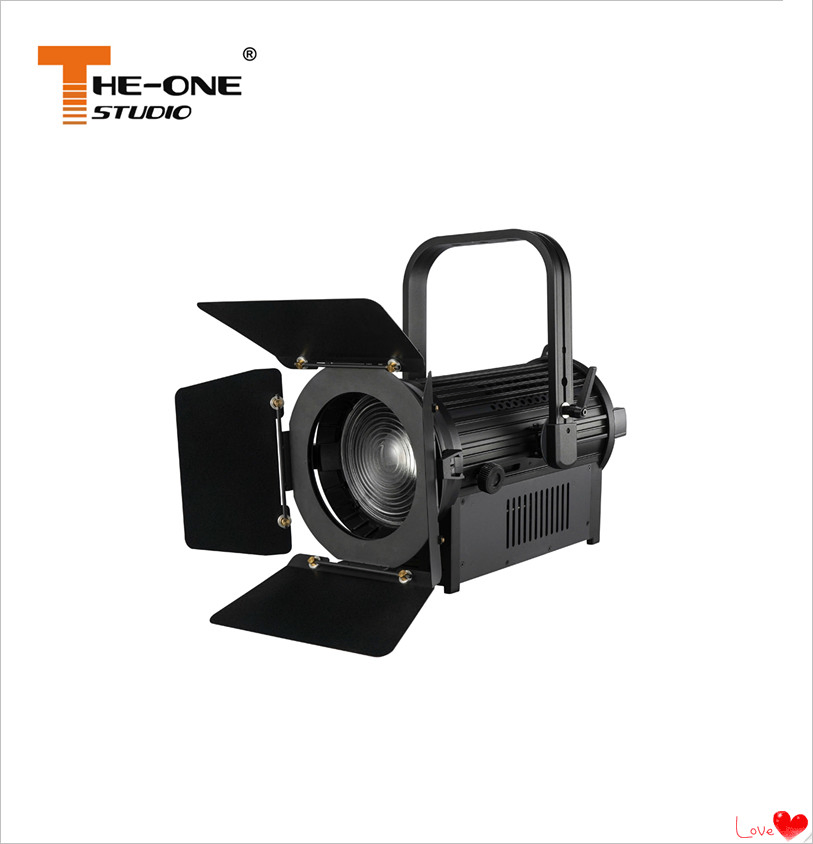

200W Led Fanless Studio Fresnel Light Front View

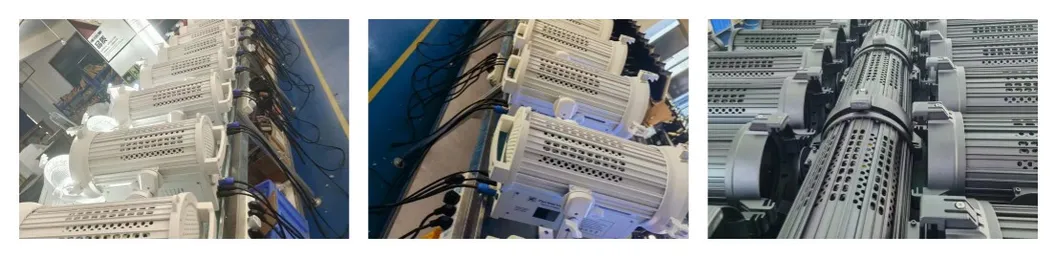

200W Led Fanless Studio Fresnel Light Details

200W Led Fanless Studio Fresnel Light Dimensions

200W Led Fanless Studio Fresnel Light Color Options

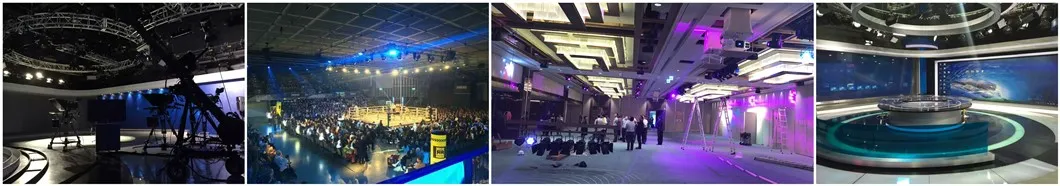

200W Led Fanless Studio Fresnel Light Application

Packaging & Shipping

Packing	PE bag with Kraft carton packing, using the EPE for safeguard that can protect the light not be damaged OR flightcase
Shipping Method	DHL / UPS / Fedex, by air transportation or by sea transportation

Our Services

Warranty	2 Years
After Sells Service	First, you need send picture or video to us, let us make sure what's problem about the product. If this problem can use parts to solve, we will send the replacements in free and bear the shipping fee. If the problem cannot be solved, we will provide discount compensation on your next order.
Inquiries Response	For all your inquires about us or our products, we will reply you in detail within 24 hours.
Professional Team	We have well-trained and professional sales & after-sale services persons who can speak English fluently.
OEM Services	We offer OEM services. We can print your own logo on product and packaging.

Frequently Asked Questions (FAQ)

1. How can I request a price quotation?

Please send us an inquiry with details of the models and specifications you require. We will prepare and send you a detailed price list promptly.

2. What is the process to place an order?

Send us your order details and requirements. We will issue a Proforma Invoice (PI) for your confirmation. Please verify the shipping destination, quantity, and product specifications during this step.

3. What shipping methods are available and how long does it take?

Products can be shipped by sea (takes 20-30 days), by air (takes 5-8 days), or by express courier (takes 3-5 days). The choice depends on package dimensions, weight, and your delivery requirements.

4. What payment terms do you accept?

We accept Western Union and bank transfers (T/T). Payment is typically processed as a 30% deposit prior to production and the remaining balance paid before dispatch. We recommend single-transfer payments to minimize transaction fees.

5. Do these studio lights come with quality certificates?

Yes, our light fixtures comply with international standard certifications, having successfully passed CE, RoHS, TUV, CCC, and UL regulations.

6. What is the warranty coverage for this product?

We offer a 2-year warranty on our fixtures. During this period, if any part breaks down under normal operation, we will provide free replacement parts.
