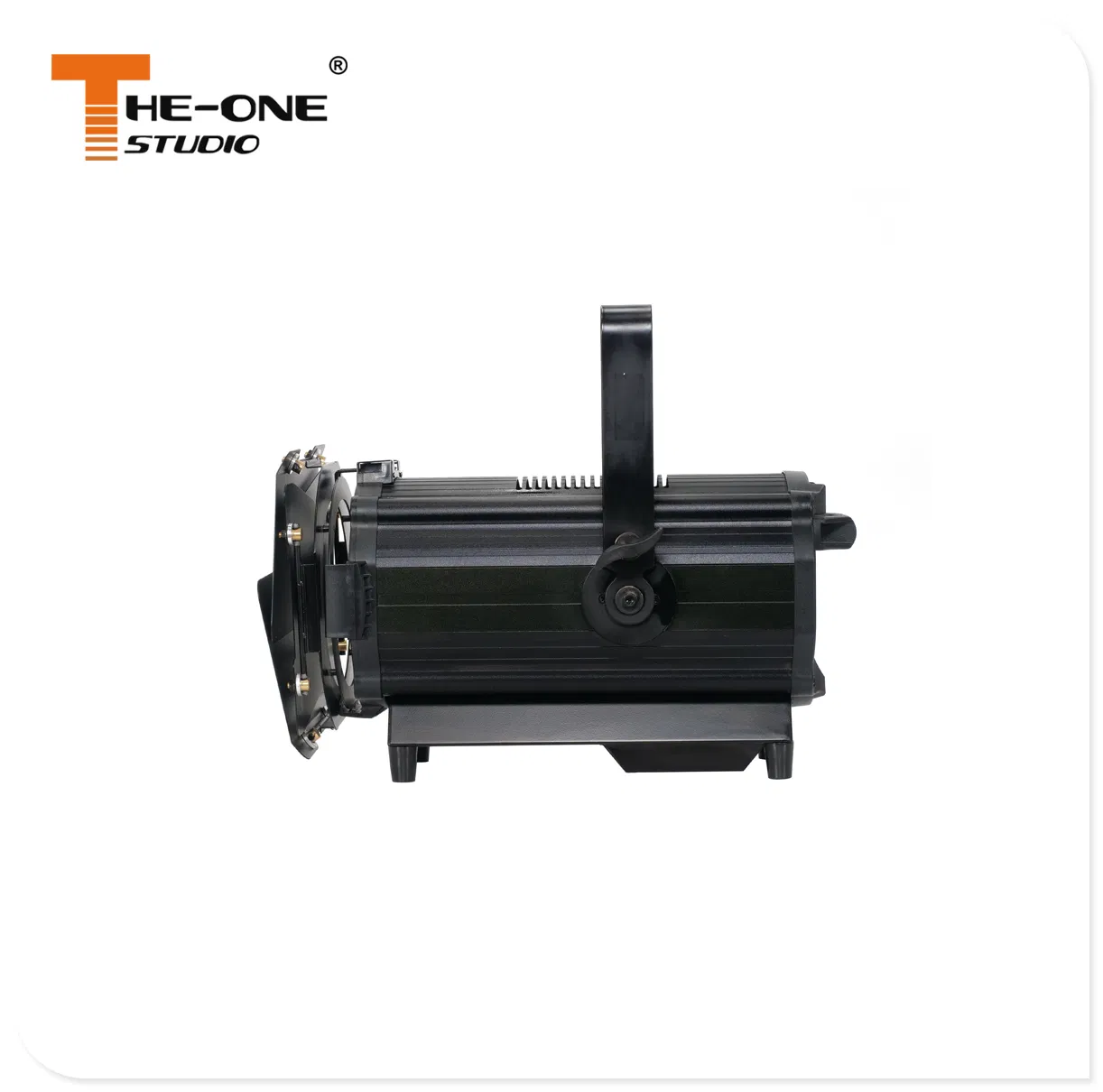

High Power 600W Die-Casting Aluminum LED Fresnel Soft Light

Basic Info

Model NO. FS-F300-CTC

Application Stage, Dance Effect Lights, Film, Theatre

IP Rating IP20

Certification CE, RoHS, GS, CCC

Production Name 600W Die-Casting Aluminum LED Fresnel

Light Source 600W 2in1 LED

Power Consumption 300W

Zooming Scale 15-50 Degree (Manual)

LED Lamp Japan Citizen

Dimming Curve 4 Kinds

Dimming Frequency 500Hz - 25000Hz Optional

Touch Screen LCD with Touch Screen

Color Rendering Index(CRI) Ra>=92

Control Channels 2CH

Cooling System No Noise Fan of Pccooler

Gross Weight 10kgs

Guarantee 2 Years Warranty

Transport Package Flight Case or Carton

Specification Aluminum Alloy

Origin China

HS Code 9405990000

Production Capacity 1000PCS/Month

Technical Parameters

Parameter	Specification Details
Product Name	600W White LED Zoom Fresnel Theatrical Stage Light
Product Model	FS-F300-CTC
Voltage	AC100V-240V
Frequency	50-60Hz
Power Consumption	300W
Light Source	600W LED lamp
LED Qty	1 Piece
Light Color	3000~6000K adjustable (cold white + warm white)
LED Lamp Type	Imported LED
Color Rendering Index (CRI)	Ra≥90
Lifetime	Over 50,000 hours
DMX Channel	2CH
Control Mode	DMX 512, master and slave, auto running, sound mode
Environment Temperature	-10°C - 40°C
Cooling System	No noise fan of Pccooler
Light Body Material	Aluminum Alloy
Body Color	Black
IP Grade	IP20
Guarantee	2 Years warranty
Net Weight	8.5kg
Certification	CE, RoHS

Production Features

Spotlight & Zoom Technology

LED Fresnel Spotlight is a soft-edged spotlight with more control over beam angle than floods, but less control than profiles. The beam angle of this Fresnel Spotlight ranges from 15 to 50 degrees. Implementing this spotlight helps achieve a significant reduction in dimmer energy and air-conditioning power consumption.

The 600W LED Fresnel Spotlight features a Manual Zoom, where the size of the beam can be adjusted by moving the lamp and reflector closer to or farther from the lens. By utilizing our manual zoom design, there is no need to push buttons on the light body, as zoom changes can be controlled directly. The beam shape can be adjusted using the four barndoors attached to the front of the lantern.

Bi-Color System & Display

The Bi-color LED Fresnel Spotlight system is designed for studios and other applications where high-definition lighting is essential. This product features a high-power 600W bicolor COB LED configuration (WW 300W + CW 300W).

Unlike previous models that used digital displays, this Bi-color theater light features an LCD touch screen for more convenient operation and control. It offers four dimming curves: Standard mode, Incandescent mode, Quick mode, and Linear mode. With a frequency range from 500 Hz to 25,000 Hz, it is flicker-free on camera, making it suitable for studio rooms, stages, TV shows, and other events.

Power Supply & Cooling

The bi-color Fresnel power supply operates from 100 to 240V with PFC protection. For theater environments, we use an upgraded copper tube fan system that operates quietly without producing audible noise.

Production Pictures

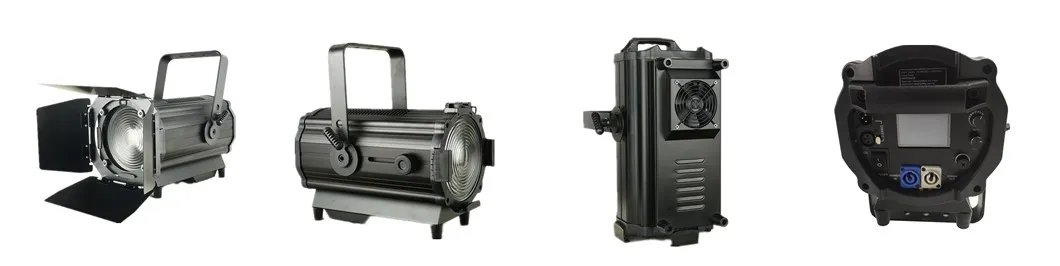

High Power 600W Die-Casting Aluminum LED Fresnel Soft Light Details

High Power 600W Die-Casting Aluminum LED Fresnel Soft Light Dimensions

High Power 600W Die-Casting Aluminum LED Fresnel Soft Light Rear View

High Power 600W Die-Casting Aluminum LED Fresnel Soft Light Side View

High Power 600W Die-Casting Aluminum LED Fresnel Soft Light Accessories

Packaging & Shipping

Packing	PE bag with Kraft carton packing, using EPE for safeguard protection, or flight case.
Shipping Method	DHL / UPS / Fedex, by air transportation, or by sea transportation.

Our Services

Warranty

2 Years

After-Sales Service

For maintenance issues, please send photos or videos showing the problem. If the issue can be resolved with spare parts, we will send replacements free of charge and cover shipping fees. If the problem cannot be resolved, we will apply discounts to your next order as compensation.

All inquiries will receive a detailed reply within 24 hours. We provide OEM services, including printing custom logos on products and packaging.

Frequently Asked Questions

1. How can I get the price list?

Please reach out to us with the details of the specific units you are interested in (including model preferences and configurations), and we will send you a price list as soon as possible.

2. How do I place an order?

Send your order requirements directly to us, and we will prepare a Proforma Invoice (PI) for confirmation. Please include delivery details (such as destination and preferred transportation method) and product specifications (item number, quantity, and custom configurations).

3. What are the shipping methods and delivery times?

Products can be shipped by sea, air, or express courier. The method chosen is based on the weight and size of the packaging as well as customer preferences. Approximate delivery times are 20-30 days by sea, 5-8 days by air, and 3-5 days by express courier.

4. What payment methods do you accept?

We accept Western Union and T/T (either full payment upfront or a 30% deposit prior to production, with the remaining balance due before delivery). We recommend single transfers to minimize bank processing fees.

5. Do your products come with certification?

Yes, our products carry certifications including CE, RoHS, TUV, CCC, and UL.

6. What is the warranty policy?

Our warranty period is two years. If any component breaks within this period, we will provide free replacement parts.
