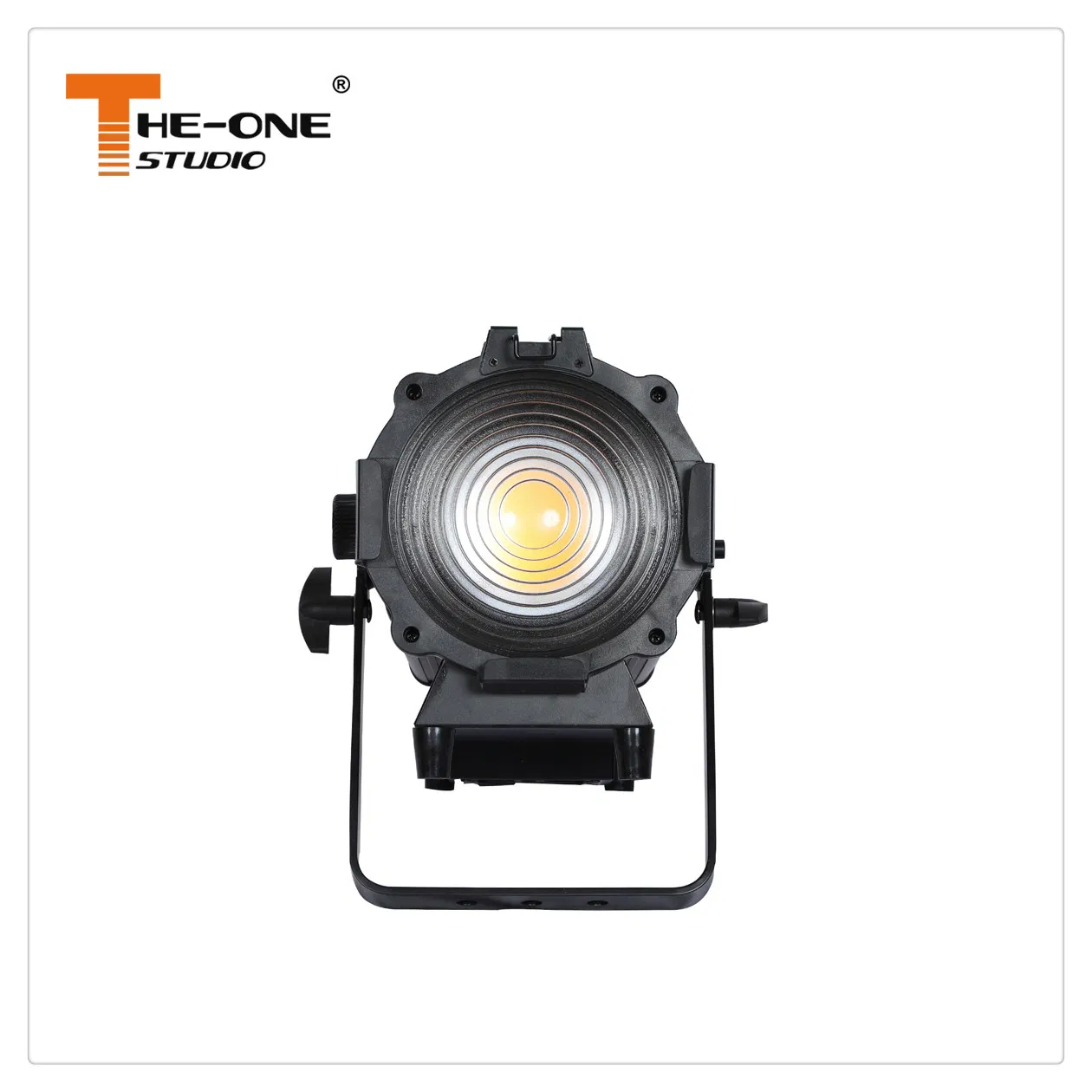

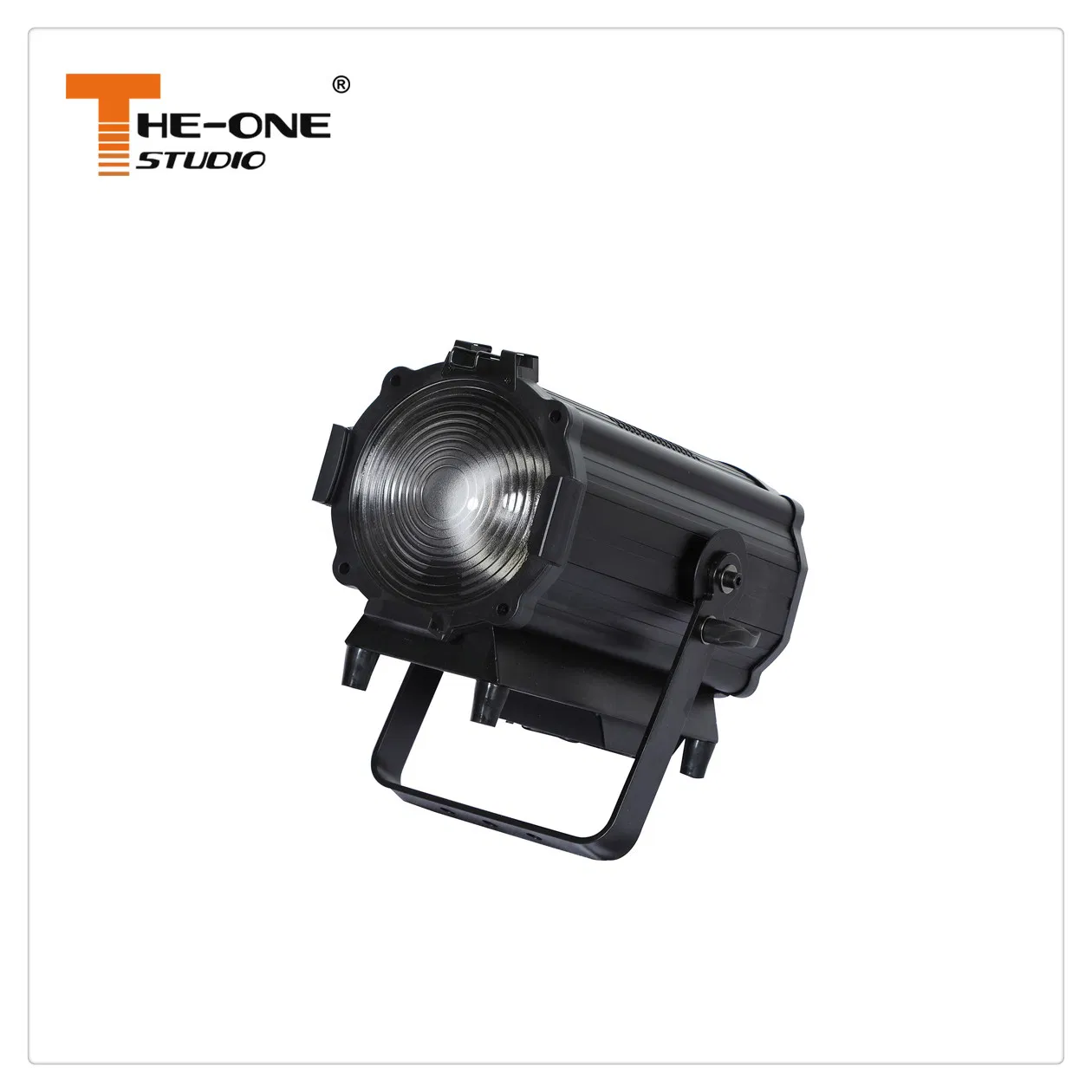

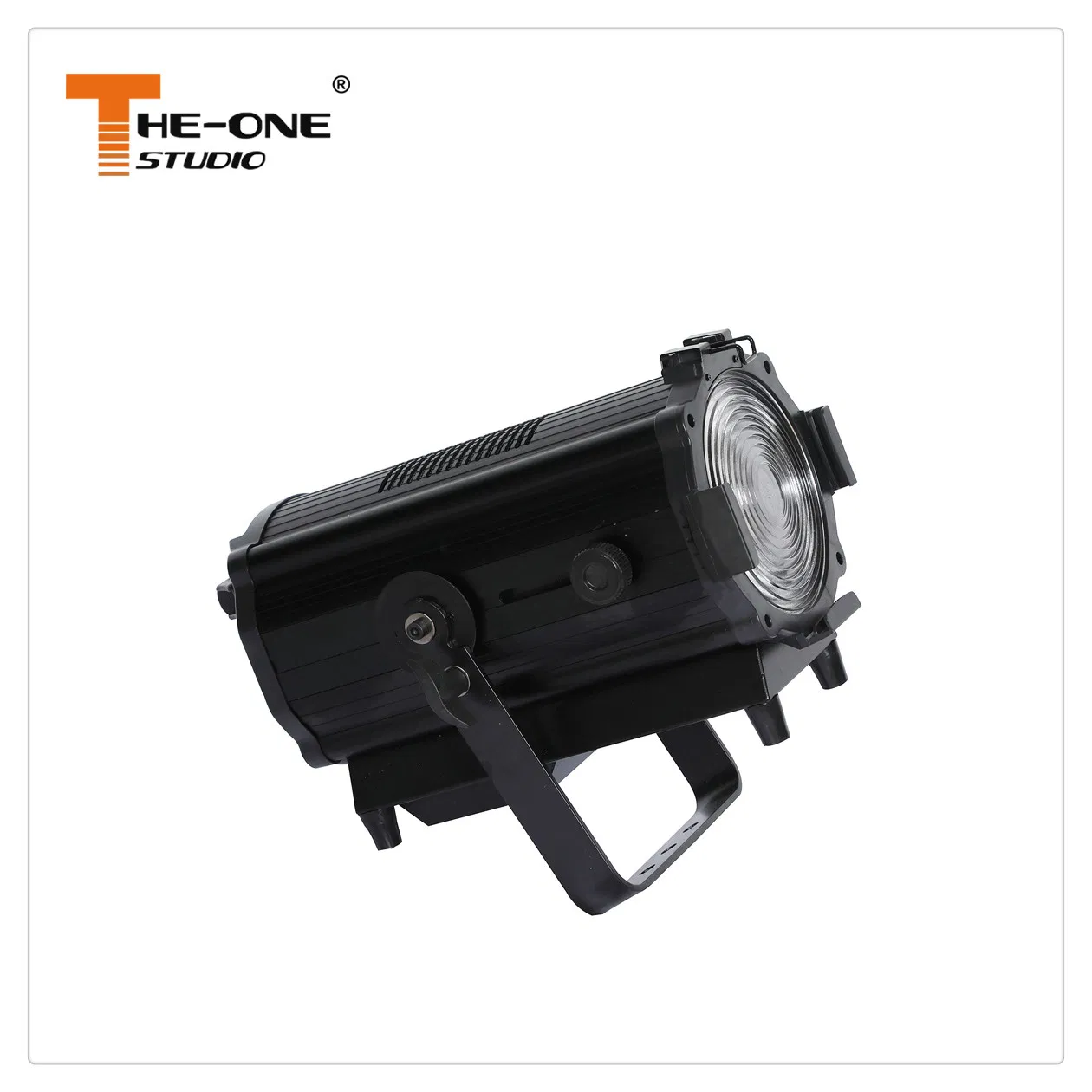

Stage Light 600W Led Fresnel Spotlight Projector

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.

Model NO.
FS-F300MZ-CTC
Application
Stage, Dance Effect Lights, Film and Television, Theatre
IP Rating
IP20
Certification
CE, RoHS, GS, CCC
LED Life Time
Over 50, 000 Hours
Light Source
600W 2in1 LED
Power Consumption
300W
Zooming Scale
15-50 Degree (Manual )
LED Lamp
Japan Citizen
Dimming Curve
4 Kinds
Dimming Frequency
500Hz - 25000Hz Optional
Touch Screen
LCD with Touch Screen
Color Rendering Index(CRI)
Ra>=92
Control Channels
2CH
Cooling System
No Noise Fan of Pccooler
Guarantee
2 Years Warranty
Light Color
White or Black
IP Grade
IP20
Gross Weight
10kgs
Transport Package
Flight Case or Carton
Specification
Aluminum Alloy
Origin
China
HS Code
9405990000
Production Capacity
1000PCS/Month

Product Description

Product Name Stage Light 600W Led Fresnel Spotlight Projector
Product Model FS-F300MZ-CTC
Voltage AC100V-240V
Frequency 50-60Hz
Power Consumption 300W
Light Source 600W led lamp
LED QTY' 1 piece
Light Color 3000~6000K adjustable (cold white + warm white)
LED Lamp Imported LED
Color Rendering Index(CRI) Ra≥90
Lifetime Over 50,000 hours
DMX Channel 2CH
Control mode DMX 512, master and slave, auto running, sound mode
Environment Temperature -10°C-40°C
Cooling system No noise fan of Pccooler
Light body Aluminum Alloy
Body color Black
IP Grade IP20
Guarantee 2 years warranty
Net Weight 8.5kg
Certification CE, RoHS

Production Features

Sophisticated Beam Control: The LED Fresnel Spotlight provides a soft-edged beam with precise control over the beam angle, ranging from 15 to 50 degrees. Implementing this spotlight leads to a significant reduction in dimmer energy and air-conditioning power consumption, making it an eco-friendly choice for modern lighting designs.

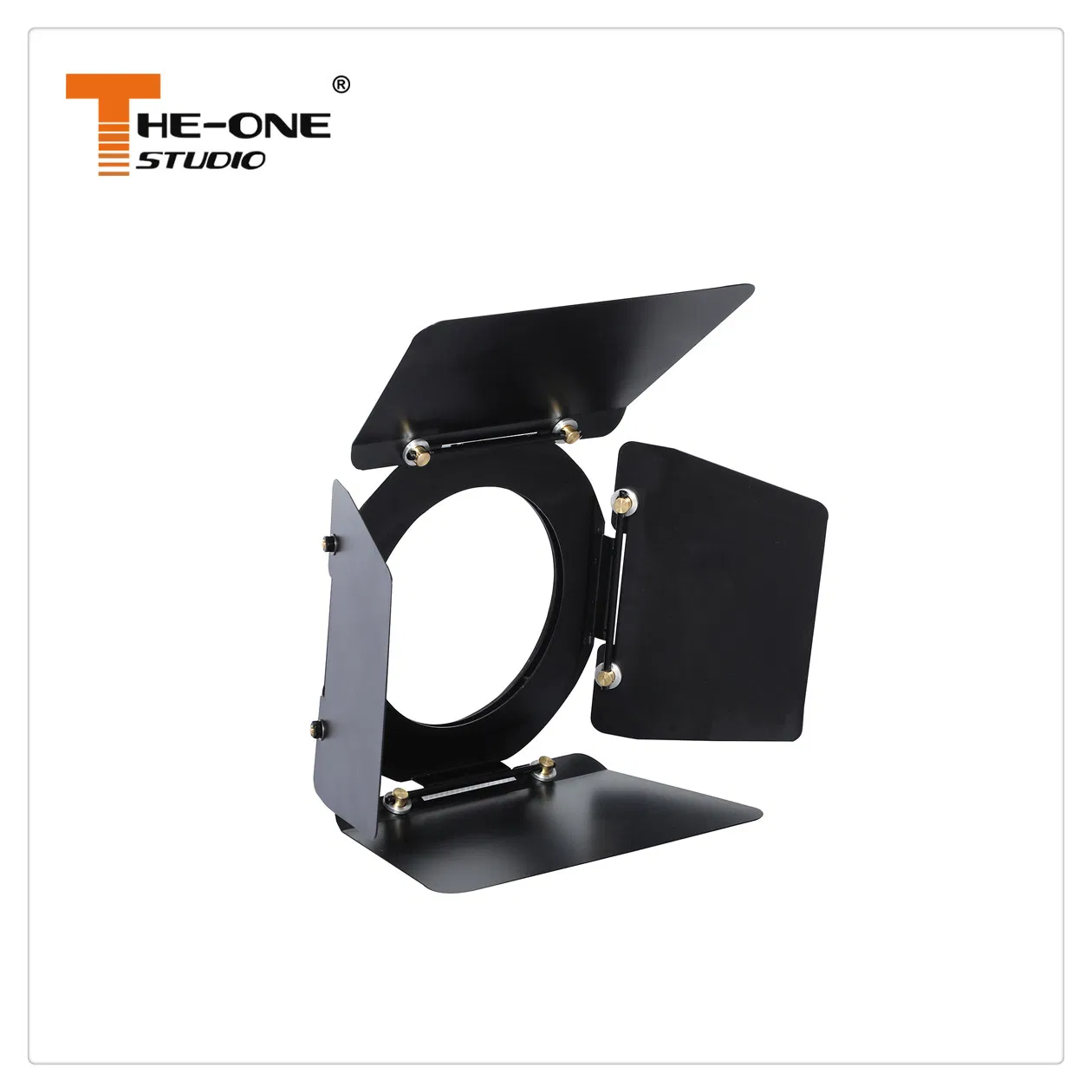

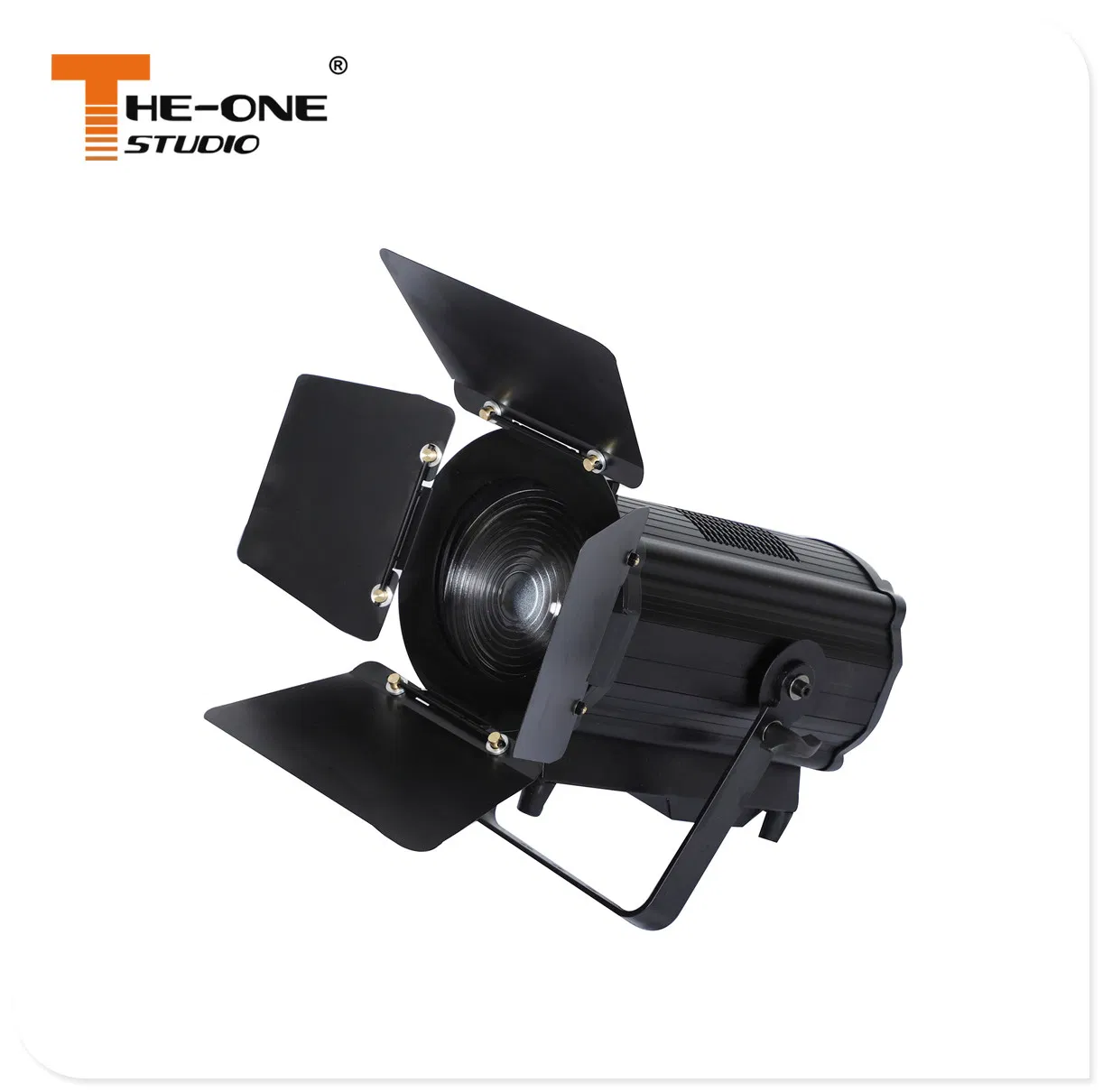

Manual Zoom Adjustments: The 600W LED Fresnel Spotlight features manual zoom adjustments, letting you scale the beam size easily. By moving the lamp and reflector closer to or farther from the lens, you can dynamically shape the zoom directly through the controller without needing to interact manually with buttons on the fixture itself. The beam structure can be further defined using the four-door barn accessories mounted on the front.

Optimized Studio Performance: The bi-color LED Fresnel Spotlight system is designed for professional studios and applications that require high-definition rendering. It delivers a powerful 600W output combining Warm White (300W) and Cool White (300W) COB LEDs.

Advanced Control Options: Transitioning from traditional digital display screens, this theatrical bi-color fixture utilizes an interactive LCD touch screen for simplified operation. It supports 4 dimming curves (Standard, Incandescent, Quick, and Linear) and frequency choices ranging from 500Hz to 25000Hz, ensuring flicker-free performance under cameras. Ideal for television studios, live stages, and professional events.

Silent Copper Tube Cooling: Designed with a PFC protected 100~240V power supply, this spotlight incorporates an advanced copper tube fan cooling system. Operating silently, it matches the strict audio requirements of quiet theatre environments.

Production Pictures

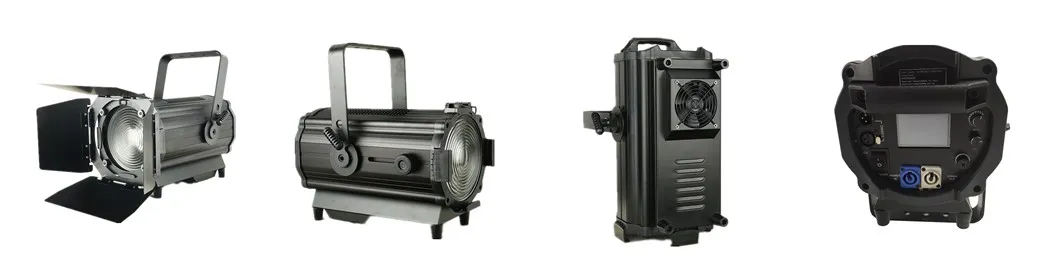

Stage Light 600W Led Fresnel Spotlight Projector View 1

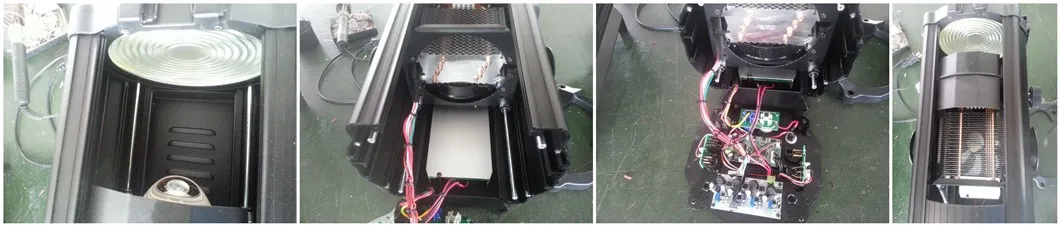

Stage Light 600W Led Fresnel Spotlight Projector View 2
Stage Light 600W Led Fresnel Spotlight Projector View 3

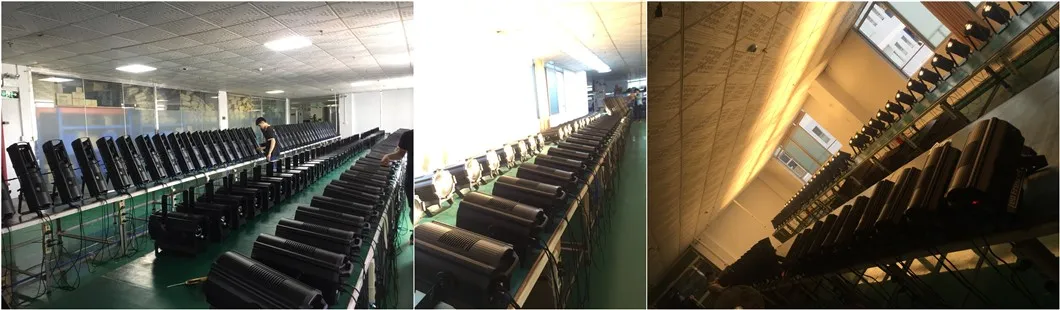

Stage Light 600W Led Fresnel Spotlight Projector View 4

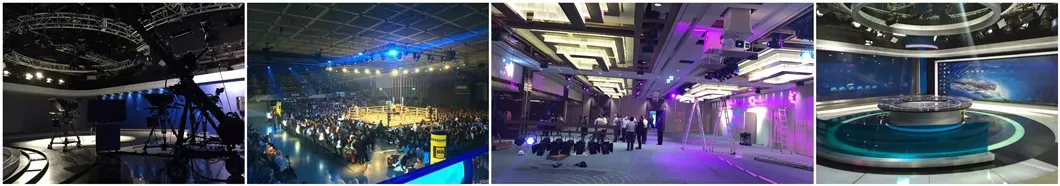

Stage Light 600W Led Fresnel Spotlight Projector View 5

Packaging & Shipping

Packaging Details
Packing Style: PE bag with Kraft carton packing. Features premium EPE safeguards to prevent damage during transit. Flight case packing option is also available.
Shipping Methods
Delivery Support: Shipments can be arranged via express couriers (DHL, UPS, FedEx), general air transportation, or ocean freight.

Our Services

Warranty Coverage
2-Year Warranty: All items are backed by a complete 2-year warranty to guarantee reliable performance.
Support & Customization
After-Sales Support: In case of issues, please submit pictures or video. For verified component faults, replacement parts are provided free of charge with covered shipping fees. We also support standard OEM options, including printing custom logos on the housing and packaging.

Frequently Asked Questions

1 How can I request a price list?
Please contact us directly with details about the product model you are interested in along with your contact information, and we will send you the price list as soon as possible.
2 How do I place an order?
Kindly send your order requirements through our inquiry system. We will generate a Proforma Invoice (PI) for your confirmation. Please provide destination info, desired quantity, and chosen shipping method.
3 What are the available shipping options and delivery timelines?
Products can be shipped by sea (approx. 20-30 days), air (approx. 5-8 days), or express courier (approx. 3-5 days). Method selection depends on package volume, weight, and your urgency.
4 What payment methods are supported?
We accept Western Union and T/T bank transfers. You may choose to pay in full or make a 30% deposit prior to production, with the remaining 70% balance settled before shipping.
5 Do these fixtures carry safety and compliance certificates?
Yes, our stage and studio light models have successfully passed and obtained major international certifications including CE, RoHS, TUV, CCC, and UL.
6 What does the warranty policy cover?
The product comes with a 2-year warranty period. In the event of component failure due to structural issues within these 2 years, we will ship free replacement parts.
