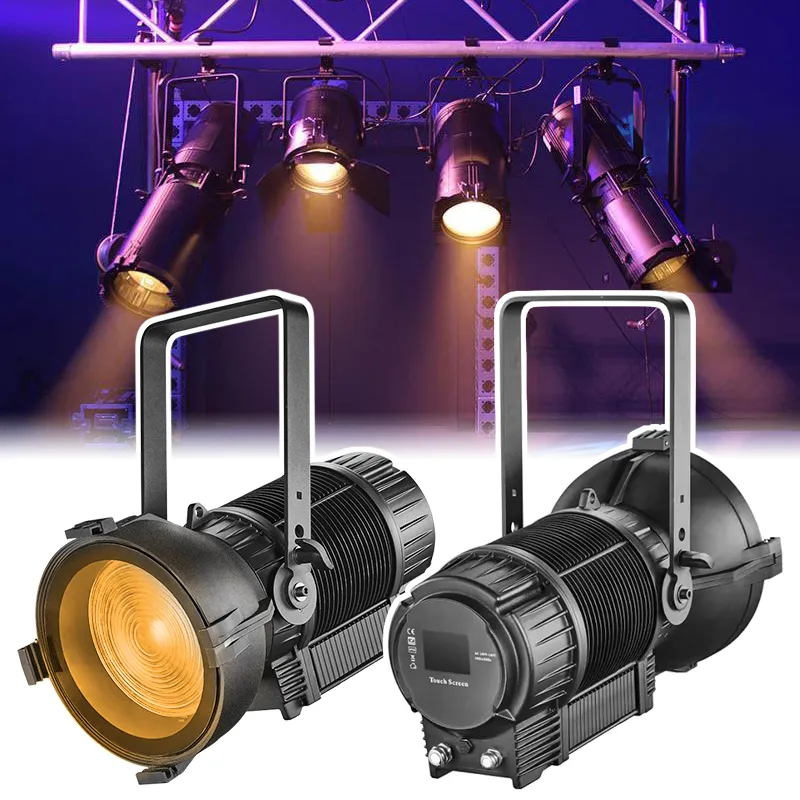

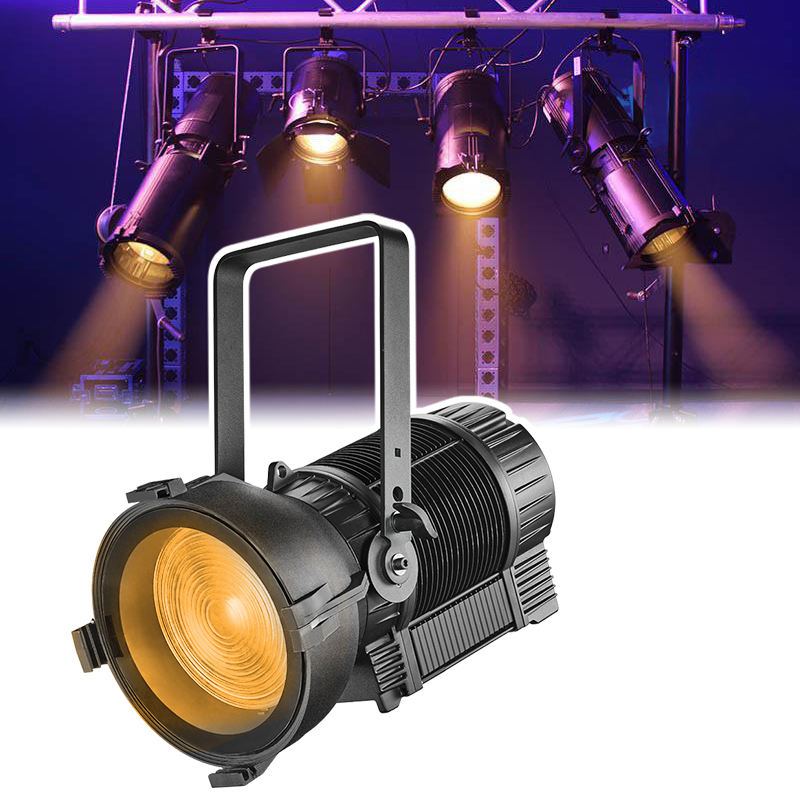

300W Auto Zoom Fresnel Tungsten Rgbal 5in1 Spot Studio Video Projector Stage Light

1 / 4

300W Auto Zoom Fresnel Tungsten Rgbal 5in1 Spot Studio Video Projector Stage Light

Send Inquiry

Product Description

300W Fresnel Tungsten Spot Projector Lights

Package Specifications

Light Source

LED Power: 300W
LED Color: RGBAL 5-in-1 (300W), Single Color WW/CW (300W)

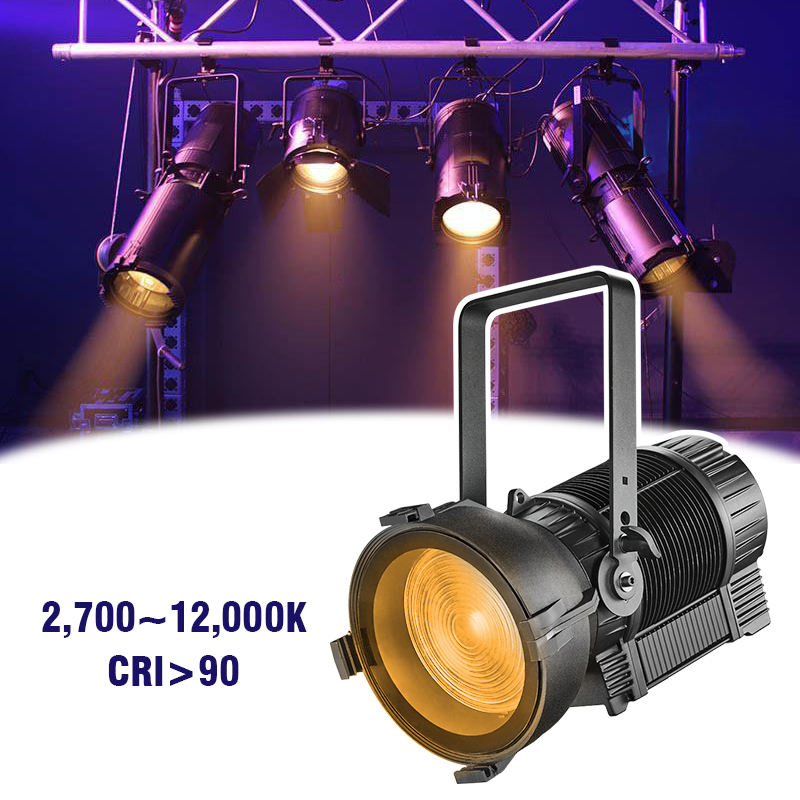

CCT Options: Fully tuneable color temperature from 2,700K to 12,000K (for 300W 5-in-1 model)

Power Supply

Voltage Range: AC100-240V
Maximum Power Consumption: 300W

Optics & Dimming

Dimming Curves: 4 selectable dimming modes
Dimming Frequency: 500Hz - 25000Hz optional configuration
Strobe Rate: Adjustable speed from 1 to 25 flashes/second

Features & Design

Zoom Operation: Dynamic zoom system controlled directly via DMX protocols
Adjustable Beam Angle: 15° to 30° capability
Housing Material: Heavy-duty Die-casting Aluminum
Color System: Advanced HSIC color management system integration
Technology: High-performance optical system with precision glass reflector
Interface: Intuitive LCD display with touch control screen panel

Control & Environment

Control Protocols: RDM and DMX compatibility
Control Systems: DMX512 standard, Auto run sequences, and Master/Slave modes
DMX Channels: 6/12 Channels (5-in-1 model), 2/4 Channels (Single Color model)
Working Temperature: -30°C to 40°C operational environment limit
Cooling System: Fan-less design for absolute zero-noise environments
Protection Grade: IP65 robust waterproof rating

Detailed Product Views

Fresnel Tungsten Rgbal 5in1 Back Interface View

Video Projector Stage Light Component View

Professional Studio Lighting IP65 Waterproof Structure

Product Series

Compatible Stage and Studio Lighting Models Series

Our Services

We are a professional LED stage lighting factory operating for ten years, positioning our industry technology at the forefront.

Our products are fully customizable with OEM capabilities to meet your custom specifications.

We house a highly experienced R&D engineering team ensuring robust development support for OEM designs.

Our structure includes well-trained and professional sales and after-sales support to handle all operational inquiries.

For all inquiries regarding our company or equipment solutions, we guarantee a detailed response within 24 hours.

Our main operational highlights feature quick delivery schedules, competitive unit costs, high quality standards, and dedicated long-term service agreements.

We hold a long-term strategic cooperation with trusted shipping lines, ensuring safe, rapid, and cost-efficient delivery directly to designated global destinations.

Production Facility

Modern Stage Light Production Line and Test Facility

Frequently Asked Questions

What are the main options for the LED light source on this model?

This unit offers choice versatility with two separate configurations: a RGBAL 5-in-1 300W color system (adjustable white CCT between 2700K and 12000K), or a single-color 300W Warm White/Cool White (WW/CW) source.

Does this Fresnel light control zoom remotely through DMX?

Yes, the zoom functions are fully automated and managed via standard DMX control protocols, allowing you to seamlessly adjust the beam angles from 15° up to 30°.

Can this fixture be used outdoors in wet conditions?

Absolutely. The unit features a durable die-cast aluminum housing rated at IP65 waterproof level, making it highly suitable for both studio environments and challenging outdoor stages.

Does the cooling fan emit distracting noise during operation?

No. The fixture employs a fan-less, zero-noise passive cooling structure, making it ideal for noise-sensitive environments like broadcasting studios, theatres, and live recordings.

What control channels are needed for system setups?

Depending on the option you choose, the 5-in-1 model operates on 6/12 channels, whereas the single-color model operates on 2/4 channel structures. Both configurations support DMX, RDM, Auto-Run, and Master/Slave modes.

Are customized OEM orders supported?

Yes, our experienced R&D engineering department handles full custom OEM projects, providing technical tailoring to fulfill specific hardware or functional requirements.
