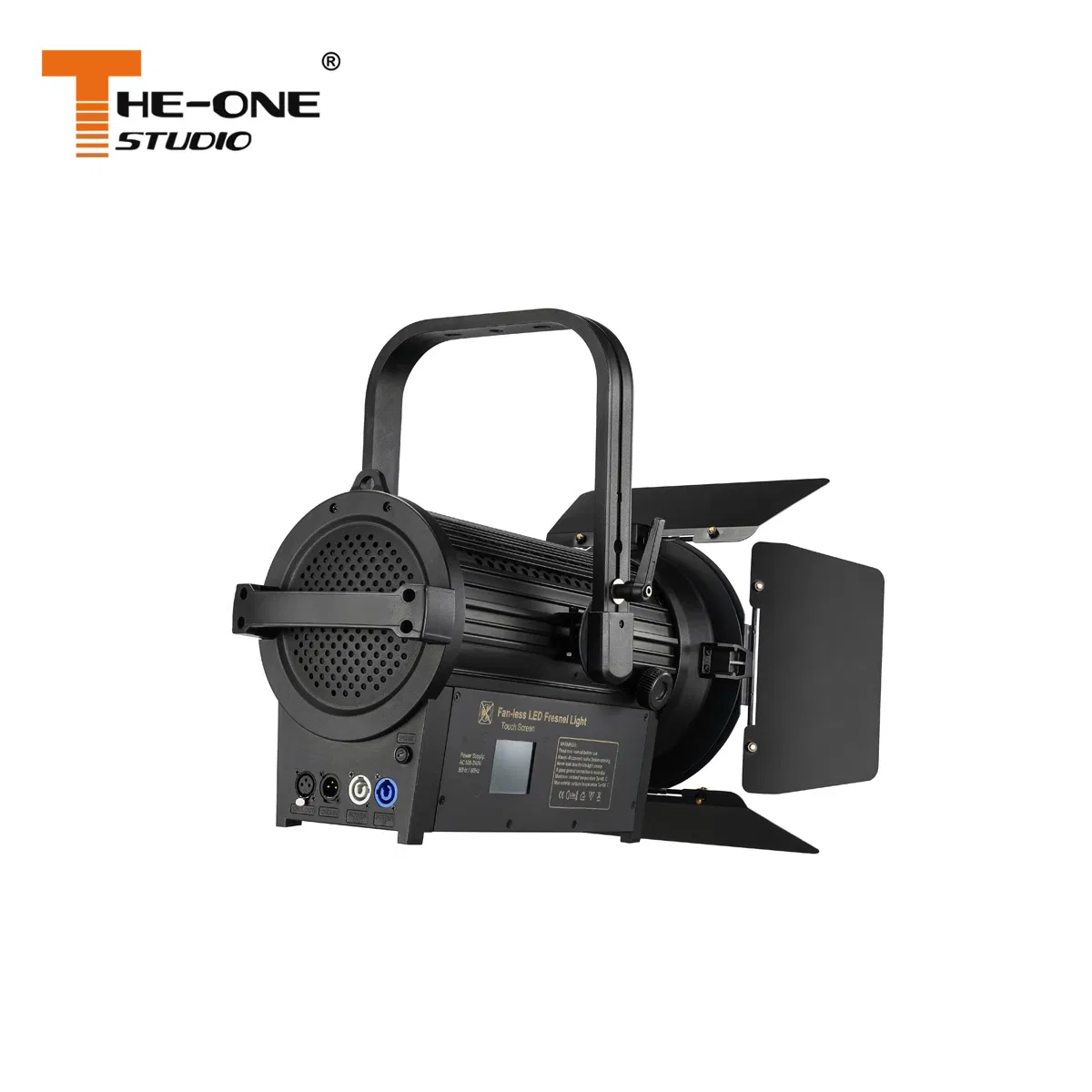

200W WW Fanless No Noise Led Studio Fresnel Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

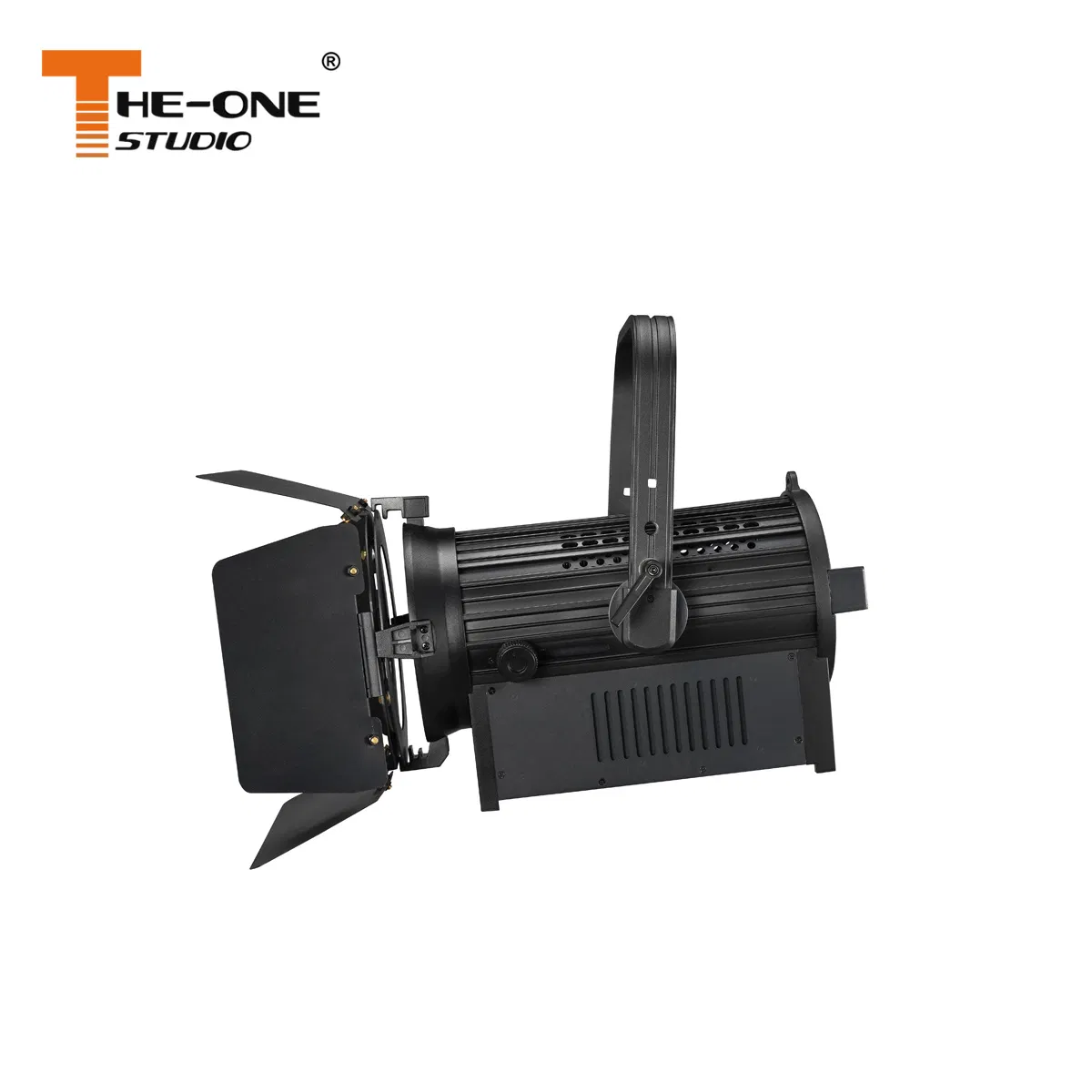

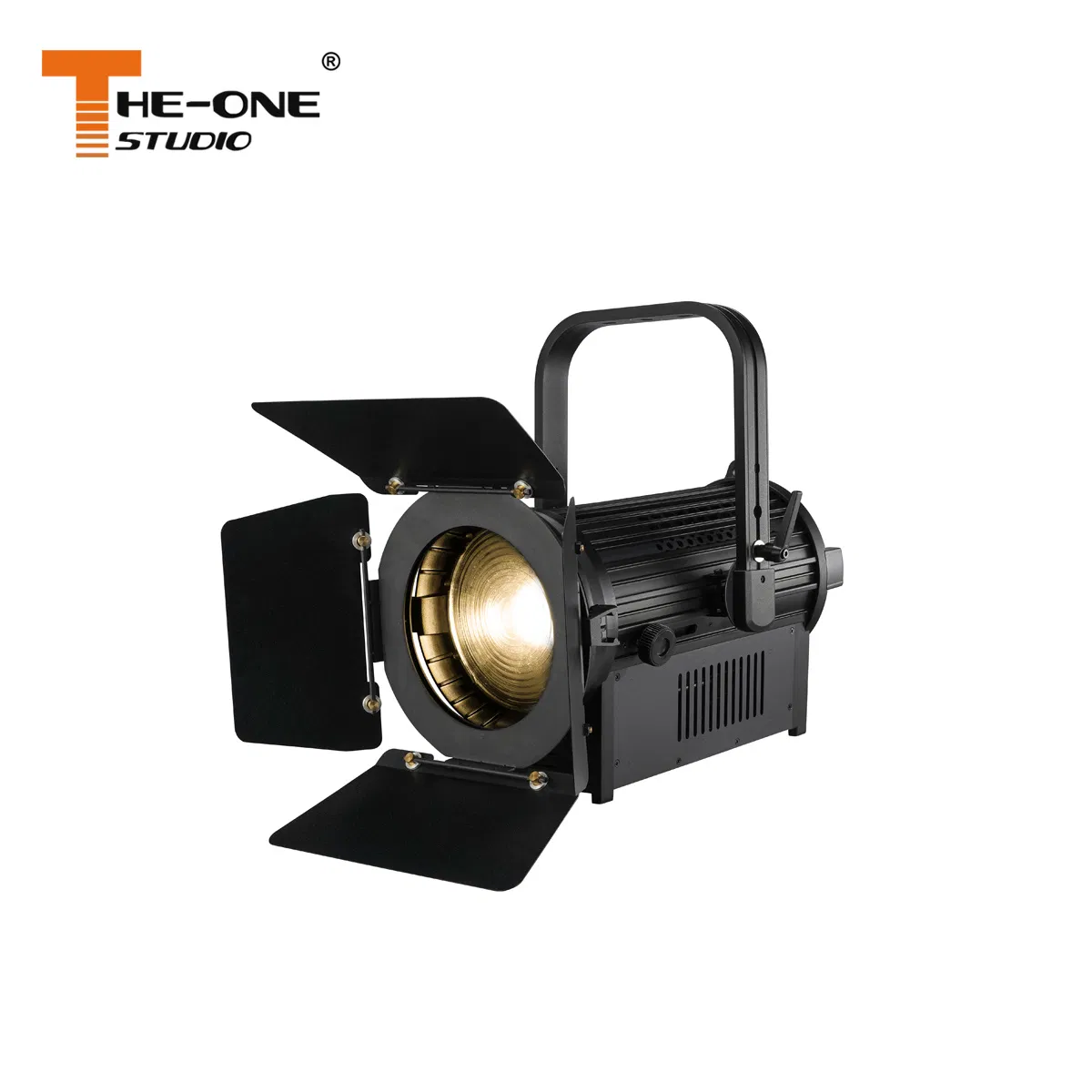

200W WW Fanless No Noise Led Studio Fresnel Light

High-performance stage and television studio lighting designed for quiet operations and exceptional color rendering.

Basic Specifications

Model NO. FS-F200SL

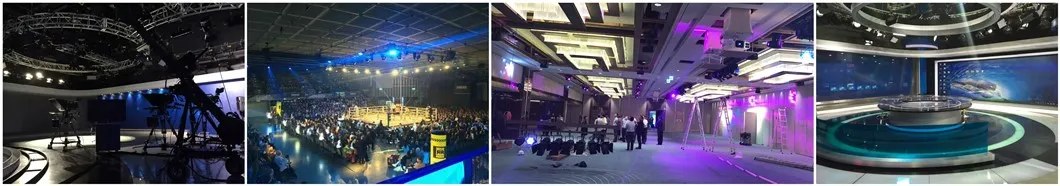

Application Stage, Theatre, Film & Television

IP Rating IP20

Certification CE, RoHS, GS, CCC

LED Life Time Over 50,000 Hours

Light Source 200W WW/CW 2-in-1

Max Power 200W

Zooming Scale 15-50 Degree (Manual)

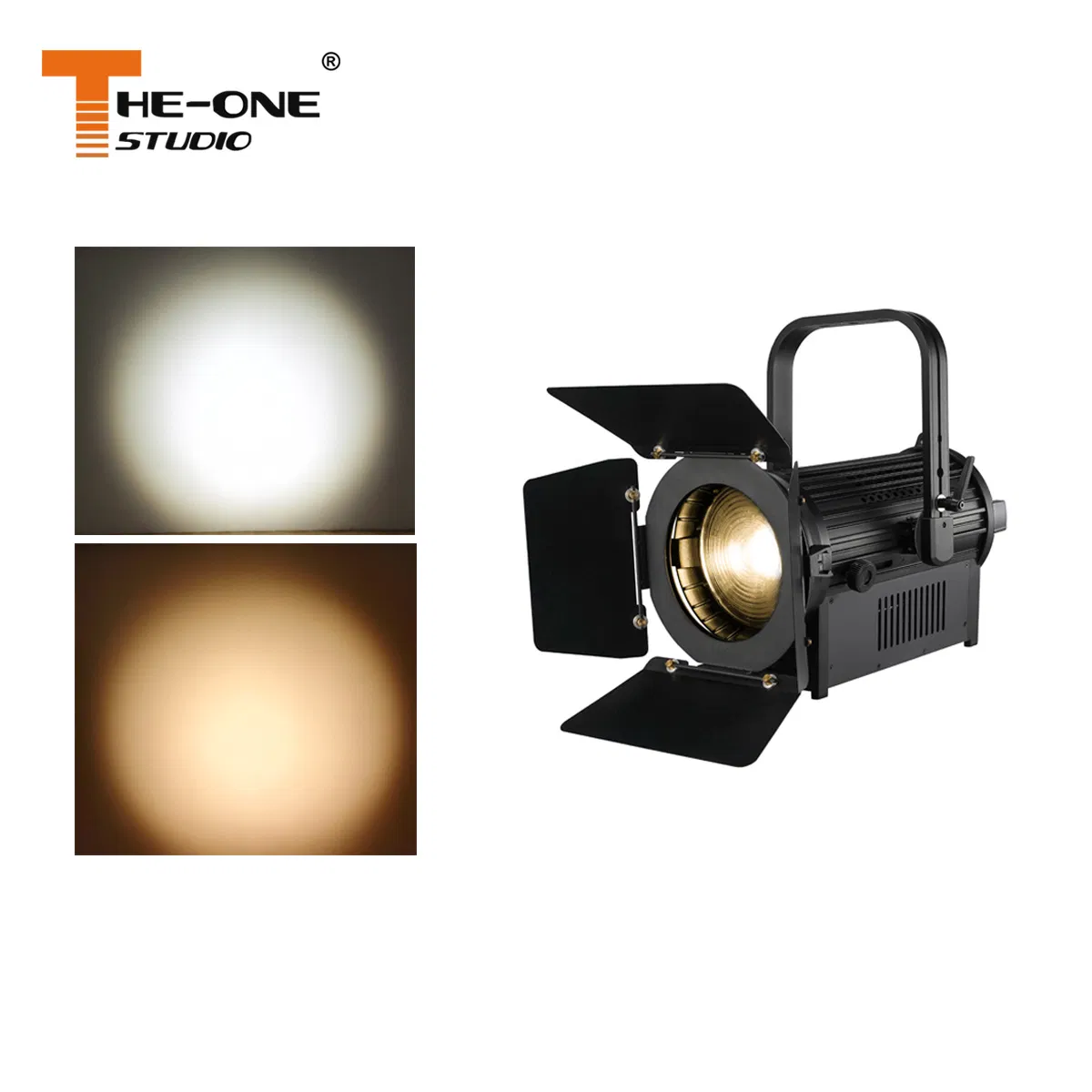

Color Temperature 3200K / 5600K

Color Rendering Index Ra ≥ 92

Control Channels 1/2CH, 2CH

Cooling System Fan-Less No Noise

Housing Material Die-Casting Aluminum

Guarantee 2 Years Warranty

Product Description

This Fanless LED fixture features a high power 200W LED lamp with an adjustable color temperature of 3200K or 5600K. Constructed with a premium Die-casting Aluminum body, it supports manual zoom scaling from 15° to 50°.

Featuring a high CRI, this light makes an ideal LED replacement for traditional aging incandescent Fresnels. Enjoy all the benefits of LED lighting efficiency without being held back by previous investments made in major dimming systems.

Control attributes of this Fanless Fresnel include manual zoom, DMX controlled electronic strobe, 16-bit dimming, and selectable dimming curve modes. The unit runs flicker-free, making it highly suitable for high-definition camera environments, TV studios, theatres, and live broadcasting events. It also features an adjustable refresh frequency and gamma brightness, as well as IP-rated 3-pin DMX and power connections.

Equipped with an intuitive LCD touch screen for convenient operation, the system supports 4 dimming curves: Standard, Incandescent, Quick, and Linear. The refresh frequency ranges from 500 Hz to 25000 Hz. Designed specifically for noise-sensitive environments like theatres and broadcast rooms, it employs an advanced fan-less heat dissipation system that delivers absolute silence.

Technical Specifications

Parameter	Specification Details
Product Name	200W WW Fanless No Noise Led Studio Fresnel Light
Product Model	FS-F200SL
Voltage	AC100V-240V
Frequency	50-60Hz
Max Power	200W
Light Source	200W LED lamp (1 piece)
Light Color	WW / CW
Color Temperature	3200K / 5600K
Color Rendering Index (CRI)	Ra ≥ 90
Lifetime	Over 50,000 hours
DMX Channel	1 / 2
Control Mode	DMX 512, Master/Slave, Auto Running, Sound Mode
Environment Temperature	-10°C - 40°C
Cooling System	Fan-less (Zero Noise)
Light Body Material	Aluminum Alloy
Body Color	Black
IP Grade	IP20
Warranty	2 Years
Net Weight	13.5kg (Gross Weight: 14.5kg)
Certification	CE, RoHS

Product Gallery

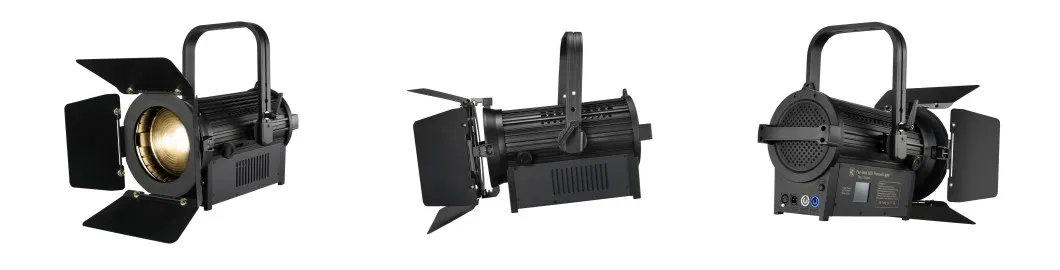

200W WW Fanless No Noise Led Studio Fresnel Light - Front View

200W WW Fanless No Noise Led Studio Fresnel Light - Angle View

200W WW Fanless No Noise Led Studio Fresnel Light - Side View

200W WW Fanless No Noise Led Studio Fresnel Light - Controls Details

200W WW Fanless No Noise Led Studio Fresnel Light - Back Interface

200W WW Fanless No Noise Led Studio Fresnel Light - Lens Details

Packaging & Shipping

Packing: PE bag with Kraft carton packing. We utilize protective EPE (Expanded Polyethylene) foam inserts to safeguard the light from transit damage. Professional flight cases are also available upon request.

Shipping Methods: Supported via Express (DHL / UPS / FedEx), Air transportation, or Sea transportation.

Our Services & Warranty

Warranty Period: 2 Years.

After-Sales Support: In case of issues, please provide troubleshooting pictures or video. If the issue is solvable via replacement components, parts will be dispatched free of charge. We also support customized OEM options including logo branding and packaging modifications.
