| Specification | |
|---|---|

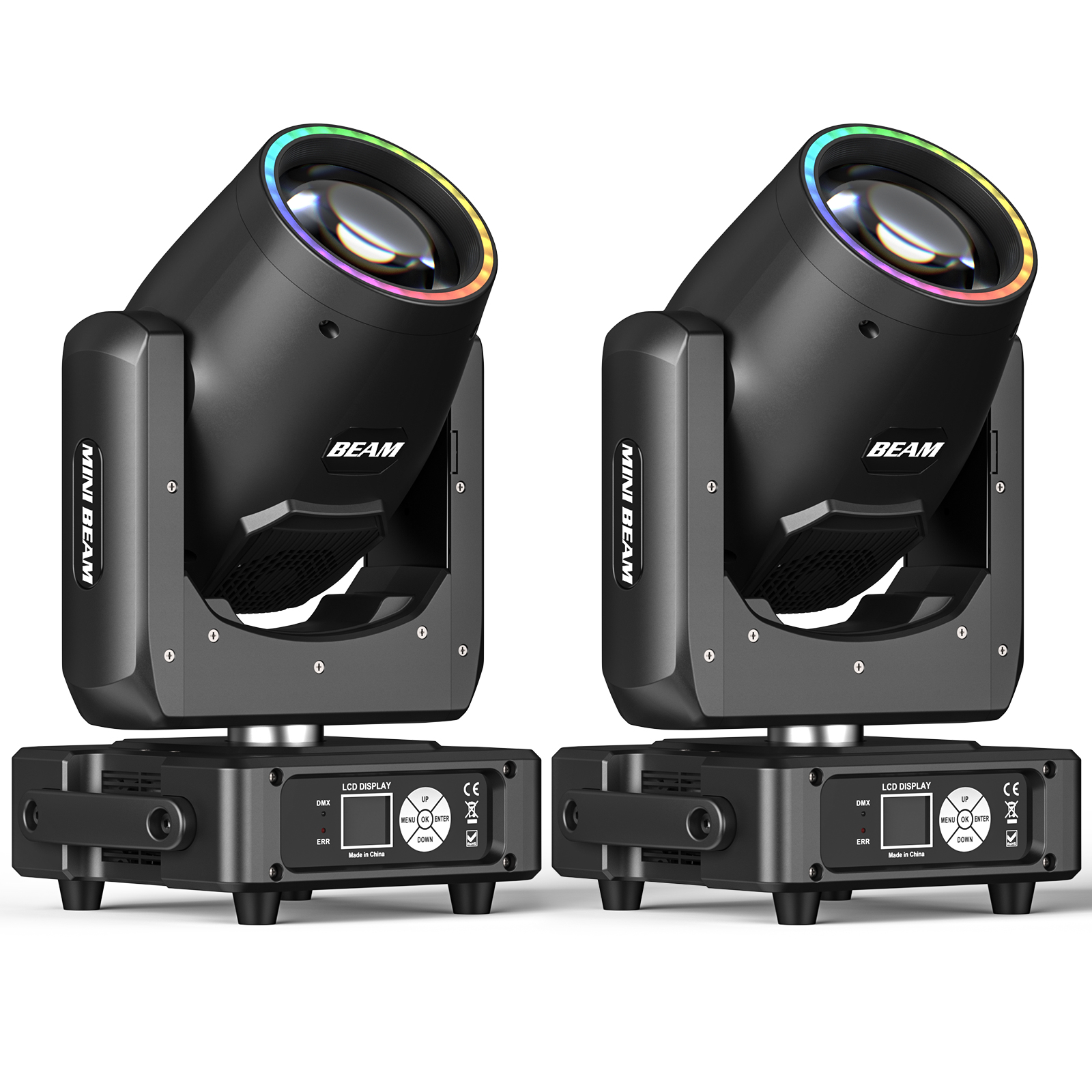

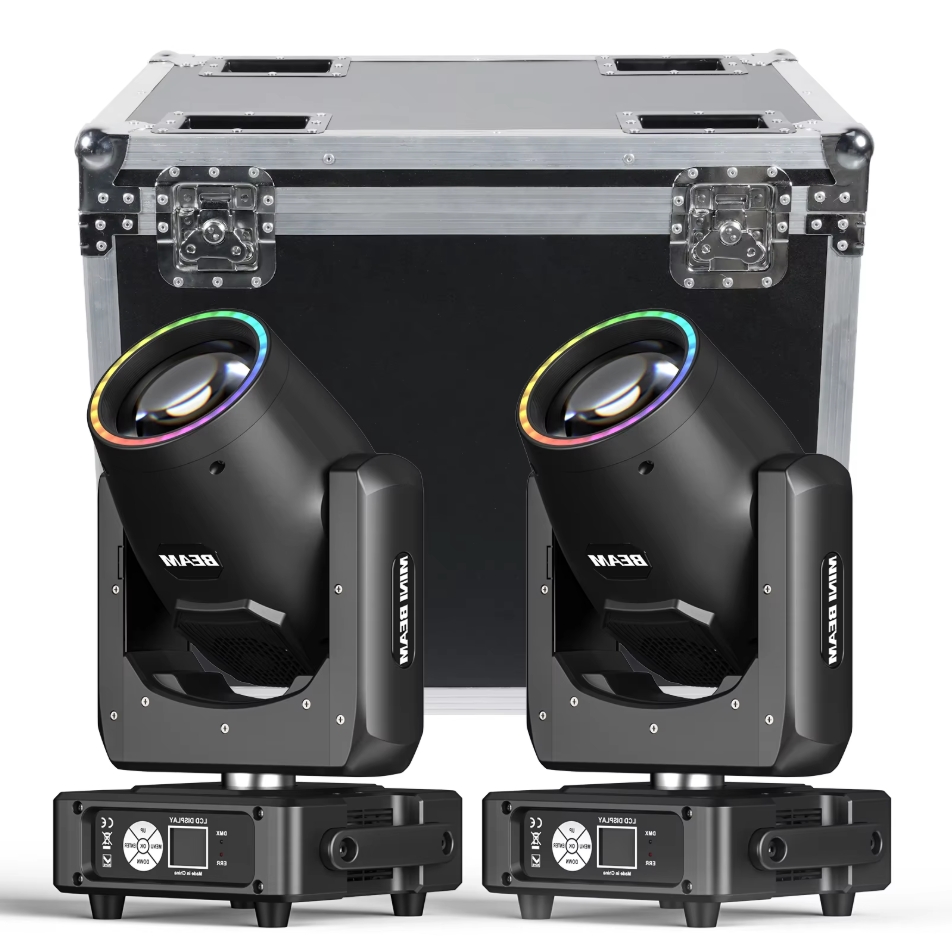

| Model | ZQ02357 |
| Light Source | 1PCS 230W Light Bulb + 27PCS 0.5w RGB 3-IN-1 LEDs |
| Color Temperature | 7000K-8000K |
| Lamp Output Luminous Flux | 9800lm |
| LED Average Life | 2000H |
| Optical Systems | |
| Angle of Light | 2.3° |
| Effective Control Distance | 5-30M |
| Illumination | 230000Lux @ 10 meters |
| Prism / Fogging Piece | |
| Honeycomb Mirror | 1PCS 48 ling honeycomb mirror |
| Colorful Fogging | Rainbow effect + fogging effect |
| Color & Gobo Plate | |

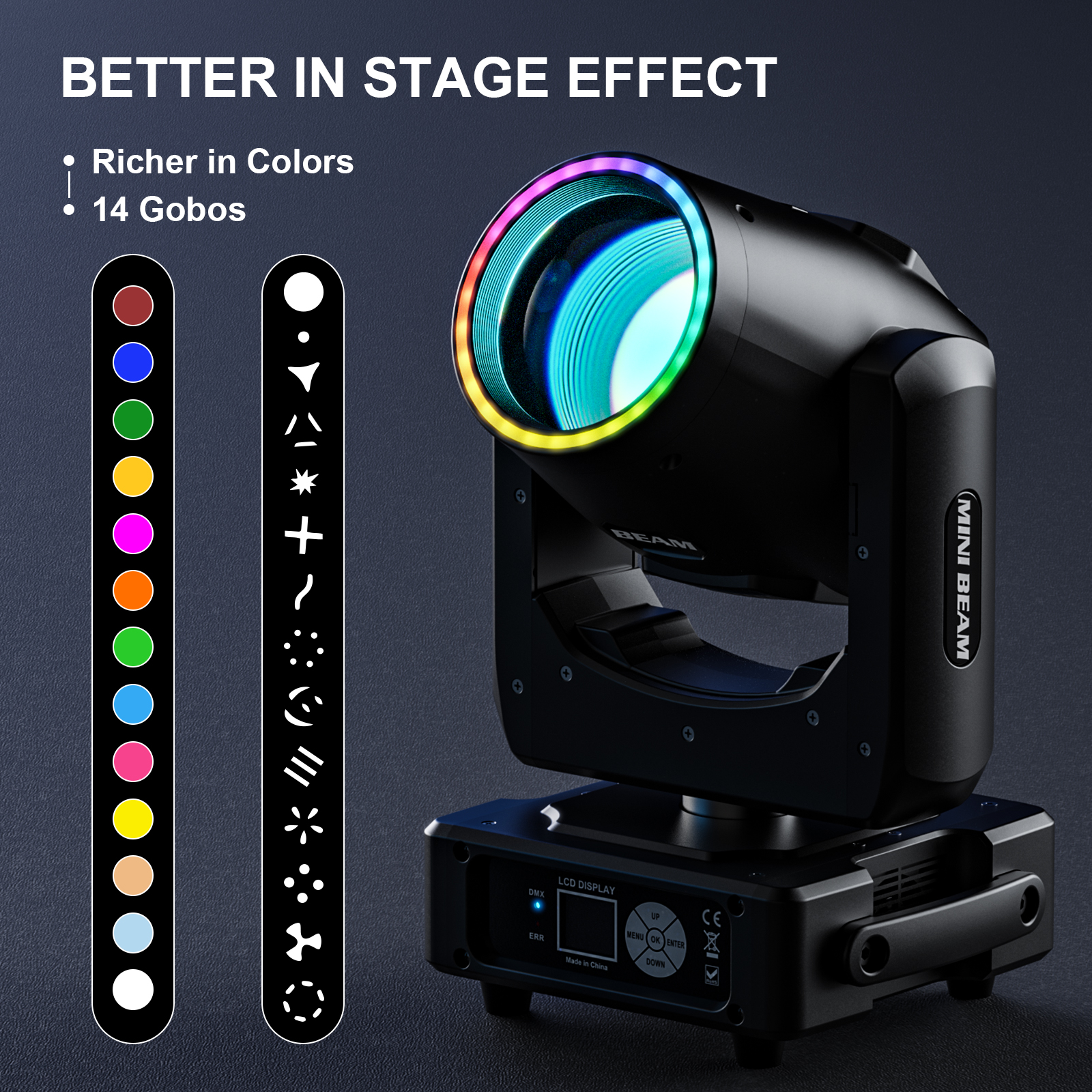

| Color Plate | 13+1 color plate (13 color pieces + 1 white light hole) |
| Fixed Gobo Disk | 14+1 (14 patterns + 1 white light hole) |
| Other Effects | |
| Motorized Focusing System | Focusing angle range: 2-8° |
| Strobe Effect | Multiple speed strobe effect (1-10Hz) |
| X/Y Axis | |

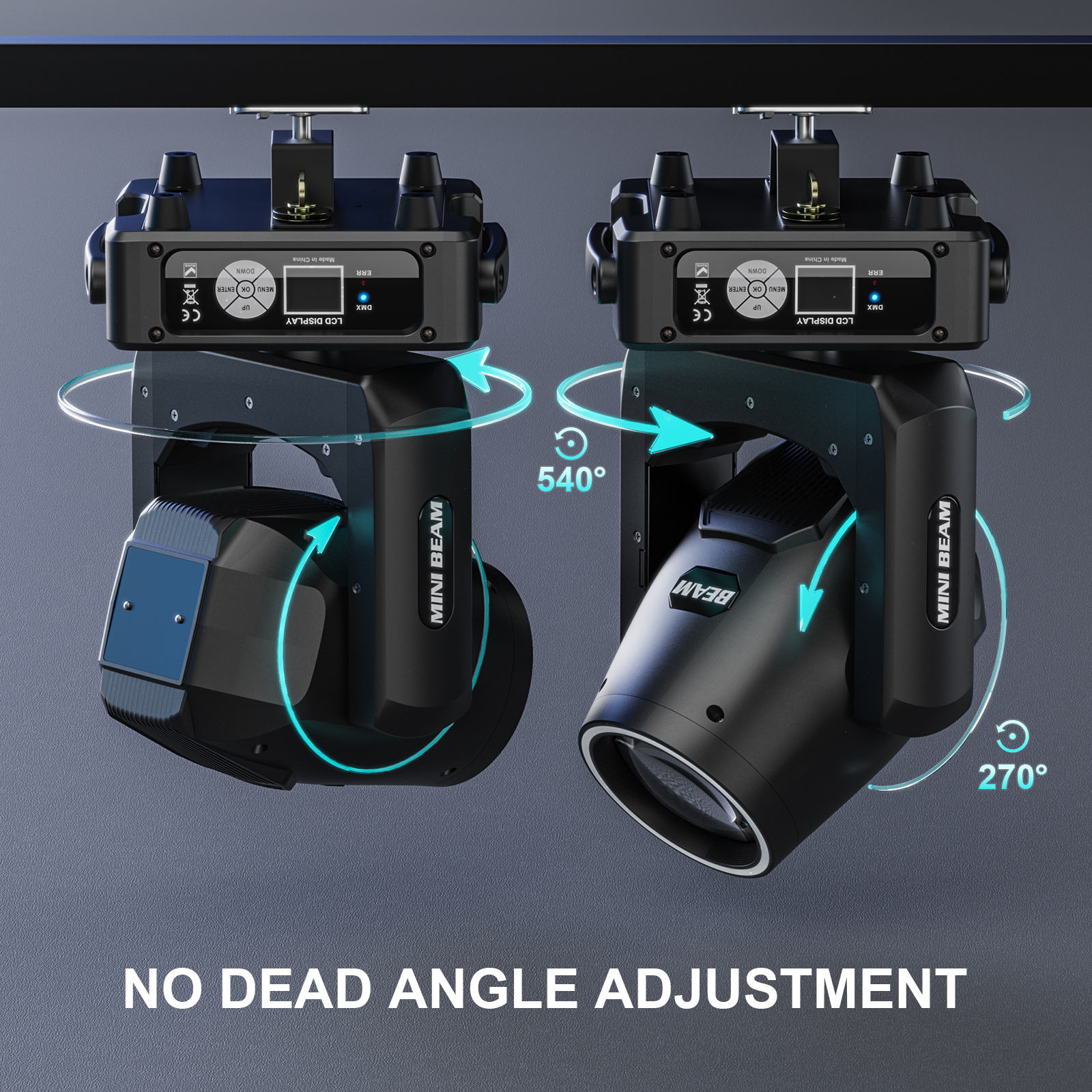

| X-axis / Y-axis Range | X-axis: 540° / Y-axis: 270° |
| Auto-Correction | X-axis/Y-axis position out-of-step auto-correction |
| Scanning Precision | X-axis/Y-axis: 16 bit precision scanning |
| Fixed Lock | Horizontal / vertical lock |
| Control and Programming | |
| Control Protocol | Standard DMX512 protocol + RDM protocol |
| Channel Mode | Self-propelled, voice-activated, master-slave, DMX512 |
| Control Channel | 18CH |
| Control Panel | LCD display |
| Electrical and Interfaces | |
| Input Voltage Range | AC110V-240V 50/60Hz |
| Rated Power | 450W |
| Data Connection | Three-core XLR input/output |
| Power Outlet | Power Connector Input/Output, Straight Outlet |
| Light Specification | |

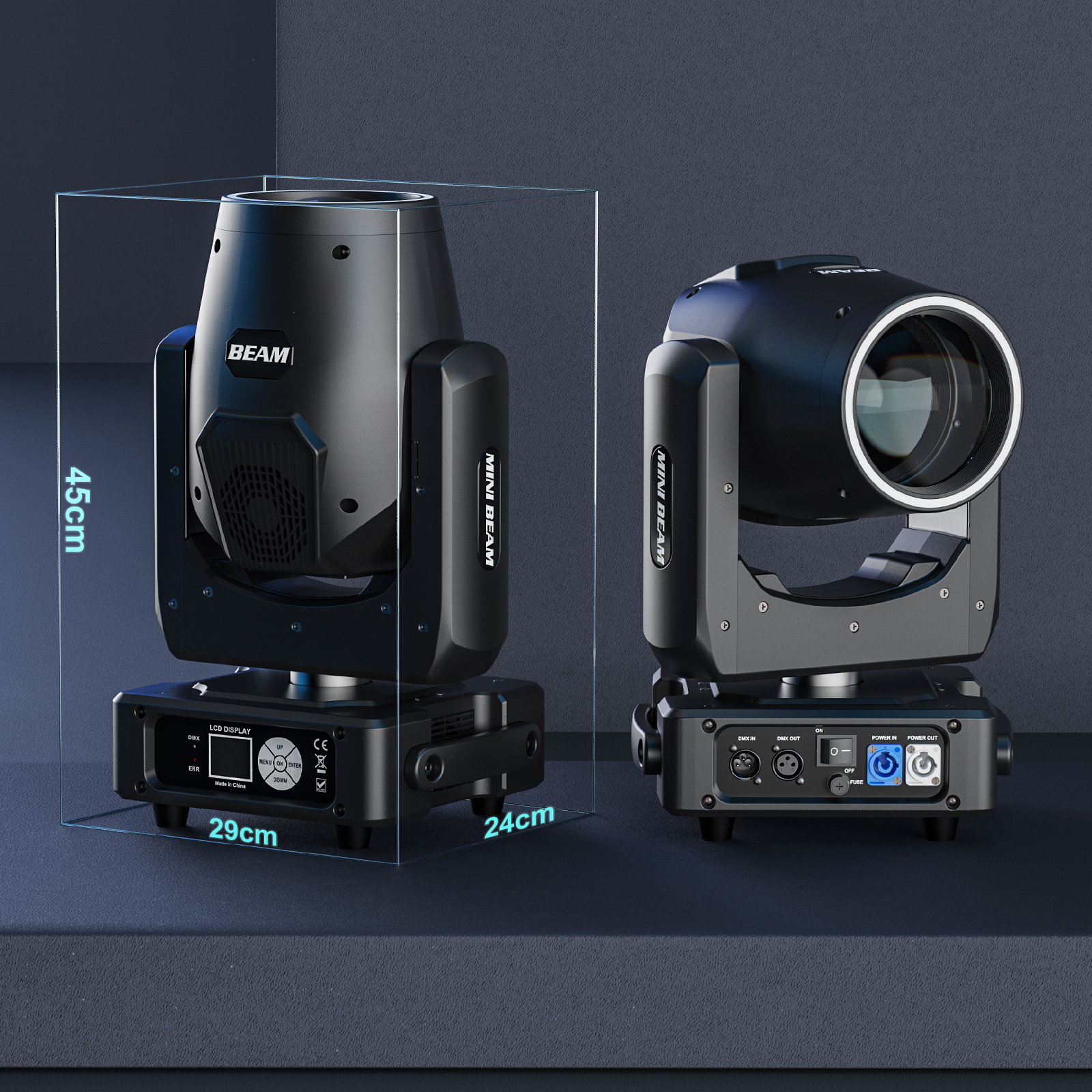

| Dimensions & Weight | Light dimensions: 290x240x450mm | Net weight: 10.2kg |
| Packaging Size & Weight | Carton size: 370x350x500mm | Weight: 12kg |
| Working Environment | |
| Temperature Range | Min: -10°C | Max Ambient: 45°C | Max Surface: 60°C |
| Protection Class | IP20 |
