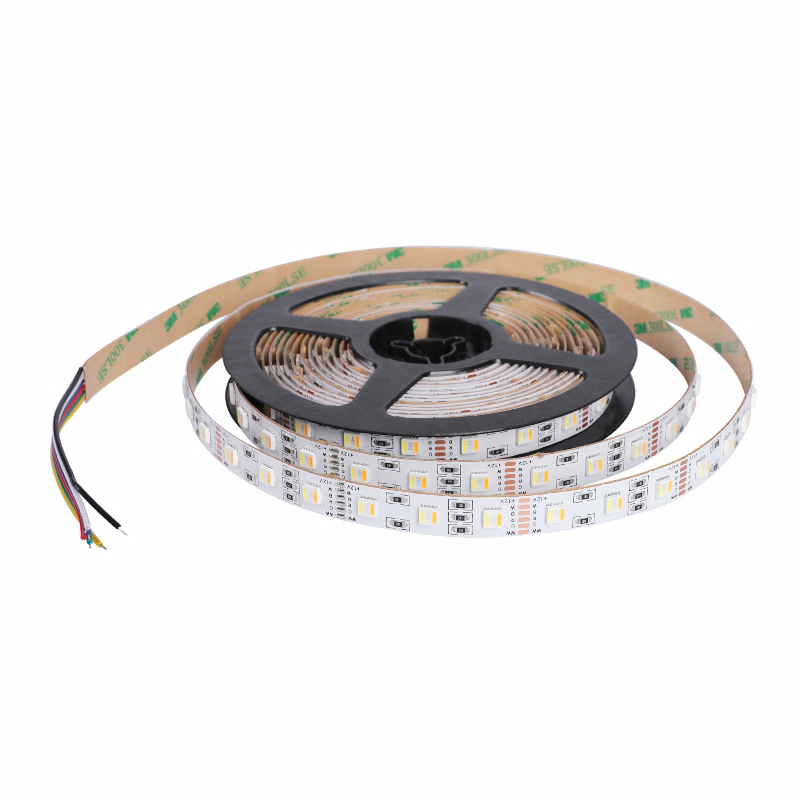

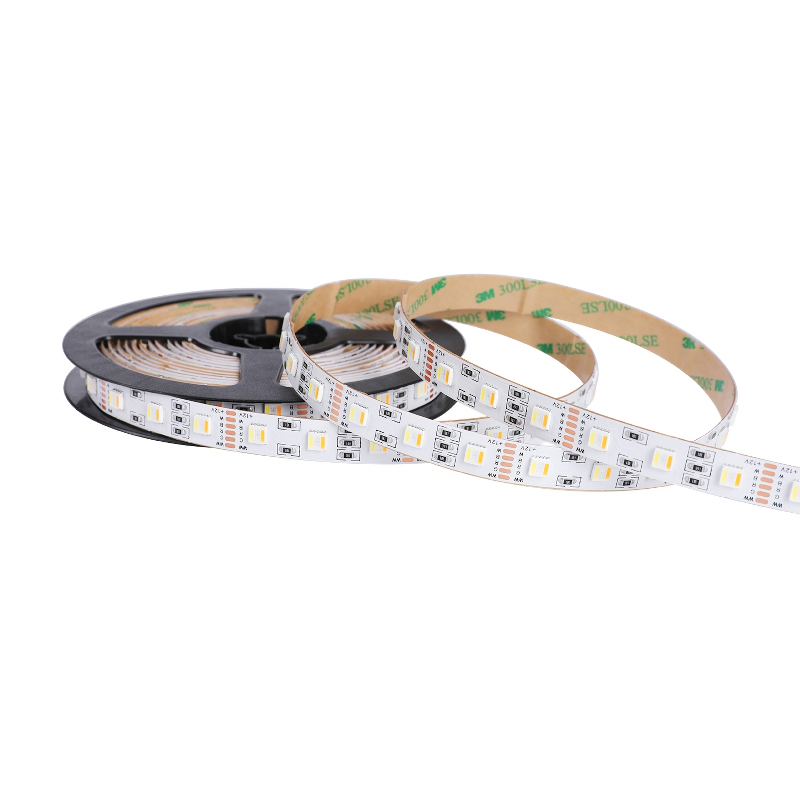

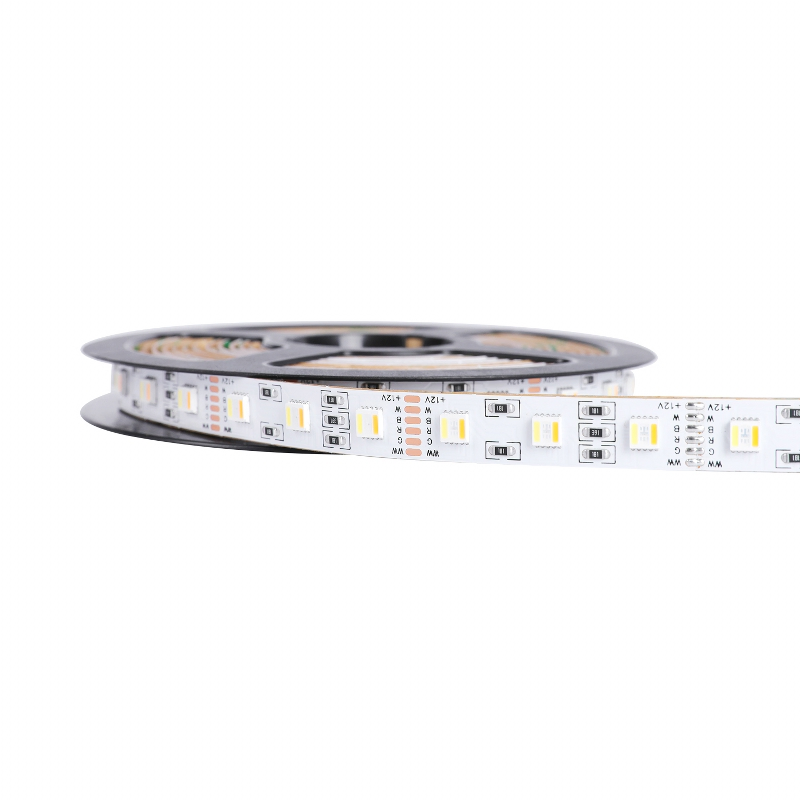

High Performance Professional LED Strip Light
IP20 IP65 IP67 IP68 Holiday Christmas Lighting Waterproof 60leds/M 12mm FPC 5in1 RGBWW RGBCCT RGB+CCT 5050 LED Strip Light.
Model NO.
K-F5050-60L24RGBCCT
Emitting Color
White / RGB+CCT
Voltage
12V / 24V
IP Rating
IP20 IP65 IP67 IP68
Type
RGB+W+WW LED Strip
LED Type
5050 SMD 5-in-1
PCB Material
Double-Sided Pure Copper
PCB Width
12mm
PCB Thickness
2oz (3oz Optional)
Adhesive Tape
Original 300LSE 3M Tape
Warranty
3 Years
Package Size
48.00cm * 28.00cm * 25.00cm
Product Description
| Product Parameter Specifications |
| Model Number |
K-F5050-60L24RGBCCT |
| LED Type |
Epistar SMD 5050 RGBWW+RGB+CCT 5 in 1 LED chip |
| Color Temperature |
RGB+CCT: RGB + 3000K + 6000K |
| PCB Color & Width |
White PCB, 12mm Width |
| Beam Angle |
120 Degree |
| LED Quantity |
60 LEDs/M |
| Power Consumption |
19.2W/M (Theoretical power, actual working is approx. 12W/M) |
| Working Voltage |
DC 12V / DC 24V |
| Installation |
With 3M adhesive backing for easy mounting |
| IP Ratings Available |
IP20 (Non-waterproof), IP65 (Silicon Glue), IP67 (Silicon Tube), IP68 (Silicone filling) |
| Standard Package |
5M/Reel in anti-static bag |
Important Installation Guidelines
- Power Supply: Always use the matching DC12V or DC24V power supply. Overvoltage will damage the entire LED strip.

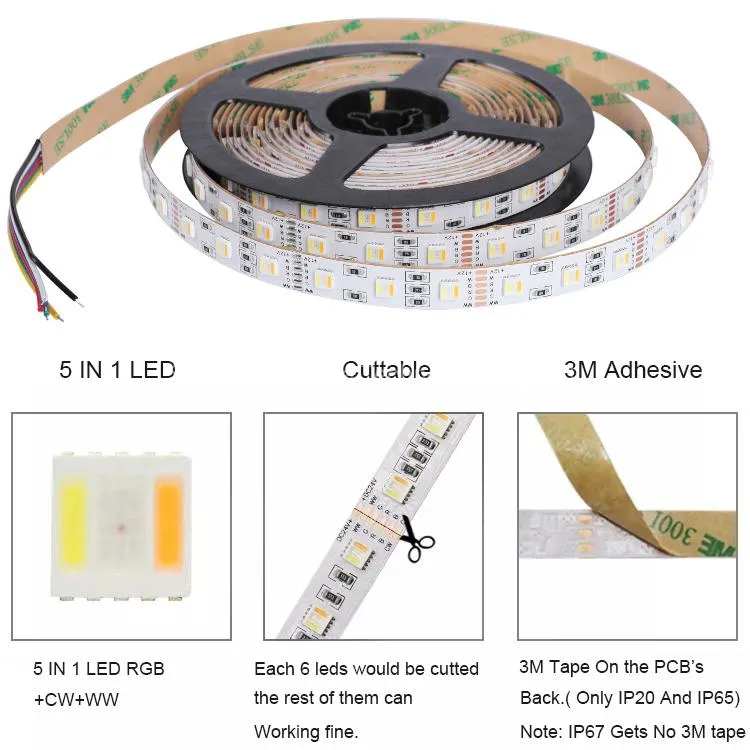

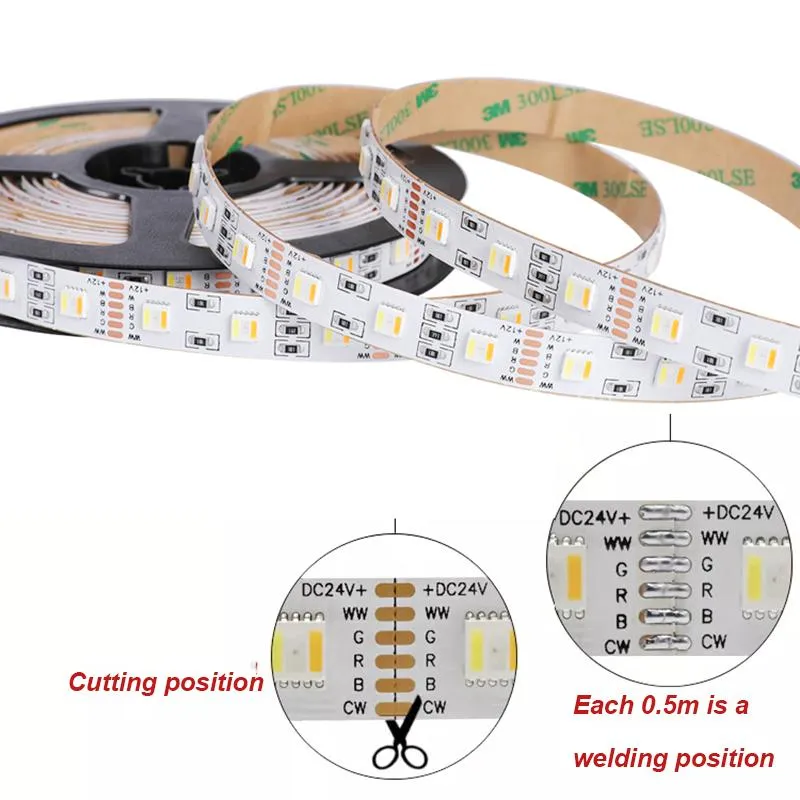

- Cutting Points: Easily cut with wire cutters at designated copper solder pads. Cuttable every 6 LEDs (approx. every 10cm) for DC24V configurations.
- Controller Requirement: This 5-channel strip requires a compatible 5-channel output controller. Simultaneous activation of all 5 colors is not recommended due to high power consumption.

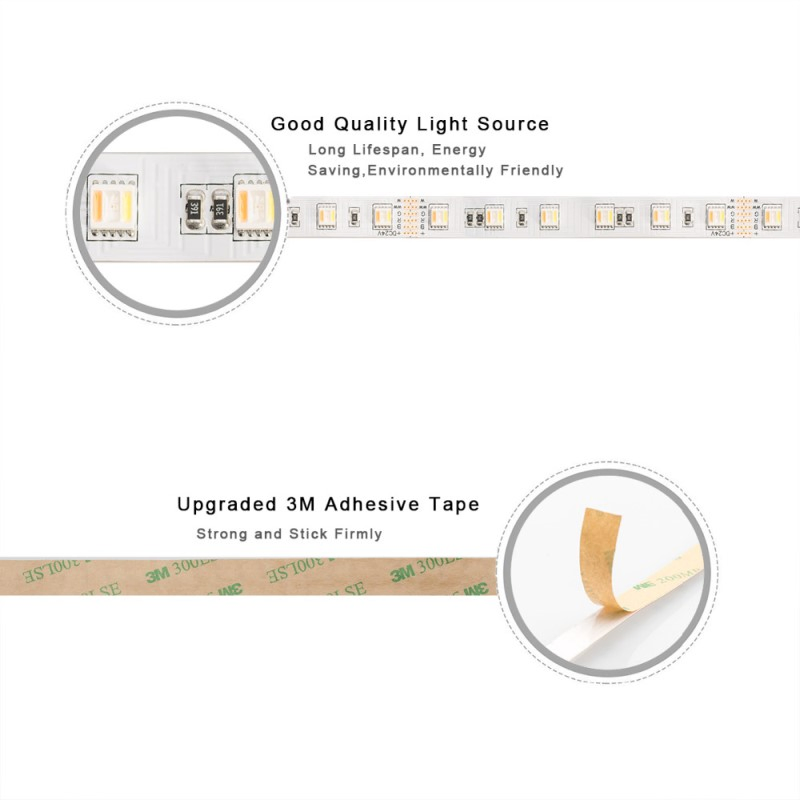

Premium SMD 5050 Chip Features
- 99.99% Pure Gold Bonding Wire: Exceptional tensile strength, conductivity, and long-term reliability.
- High-Quality Copper Pad: Maximizes heat dissipation and effectively prevents oxidation/rust.
- LM-80 Certified Lifespan: Long operational lifetime exceeding 50,000 working hours.
- Reliable Epistar Chips: Tight voltage and lumen bins ensuring color consistency and strong antistatic protection.
- Flexible Double-Sided PCB: Enhanced heat dissipation, robust structural integrity, and durability against bending.
- High-Precision Resistors: Equipped with top-brand resistors and larger solder pads to prevent breakage.

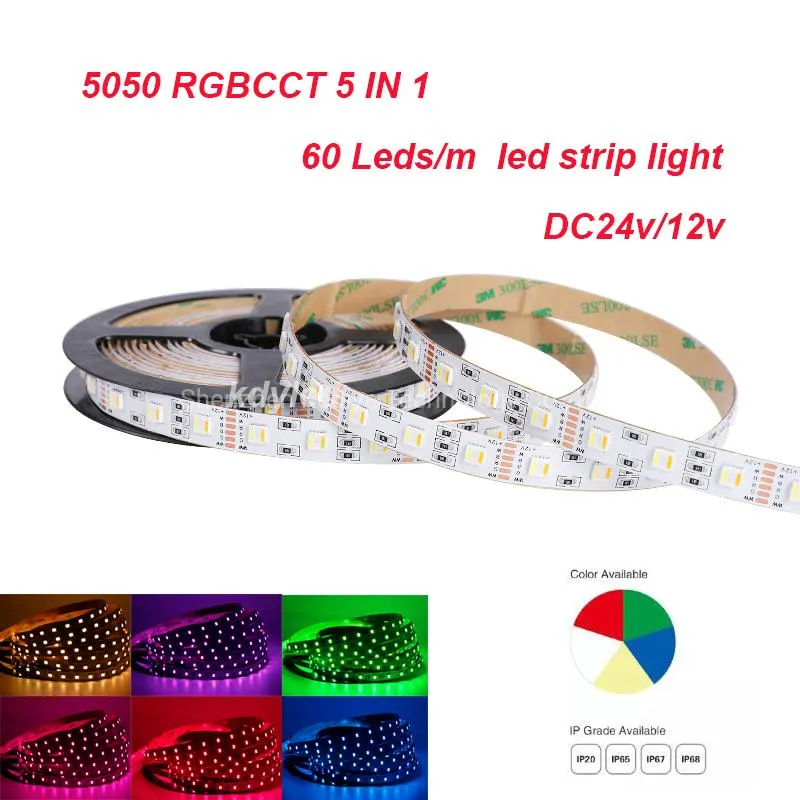

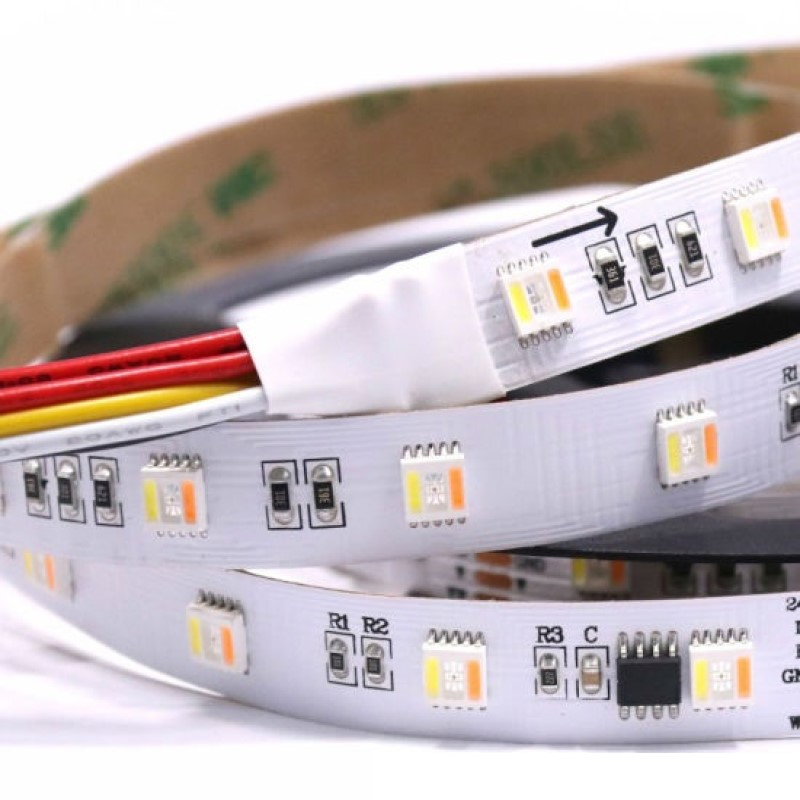

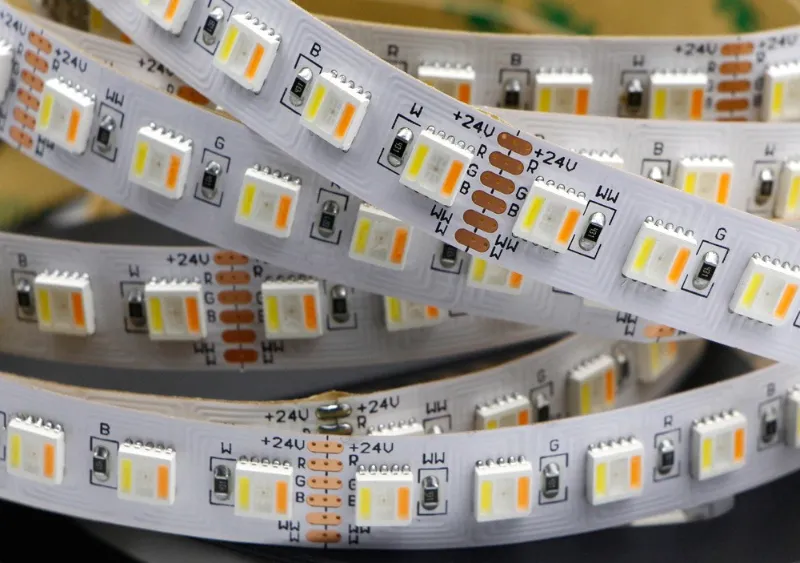

5-in-1 RGBCCT Color Configuration
RGBWW = RGB + Cold White (6000K-6500K) + Warm White (2800K-3200K)
Features high intensity and supreme reliability. A single 5050 SMD LED houses all five color emitters inside one package, allowing seamless blending of vibrant RGB colors with warm white and cool white tones.
5050 LED Strip Series Comparison
| Model |
LED Qty |
Voltage |
Power |
CRI |
PCB Width |
Color Temp Options |
| K-F5050L30W |
30 LEDs/m |
DC12V/24V |
7.2W |
>80 |
10mm |
2700K - 6000K |
| K-F5050L30RGB |
30 LEDs/m |
DC12V/24V |
7.2W |
- |
10mm |
RGB Multi-color |
| K-F5050L60W |
60 LEDs/m |
DC12V/24V |
14.4W |
>80 |
10mm |
2700K - 6000K |
| K-F5050L60RGB |
60 LEDs/m |
DC12V/24V |
14.4W |
- |
10mm |
RGB Multi-color |
| K-F5050L60CCT |
60 LEDs/m |
DC12V/24V |
14.4W |
>80 |
10mm |
3000K + 6000K CCT adjustable |
| K-F5050L60RGB+W |
60 LEDs/m |
DC12V/24V |
14.4W |
>80 |
10mm |
RGB + White in separate LEDs |
| K-F5050L60RGBWW 4-in-1 |
60 LEDs/m |
DC12V/24V |
14.4W |
>80 |
12mm |
RGB+W 4 colors in 1 LED |
| K-F5050L60RGBCCT 5-in-1 |
60 LEDs/m |
DC12V/24V |
19.2W |
>80 |
12mm |
RGB+W+WW 5 colors in 1 LED |

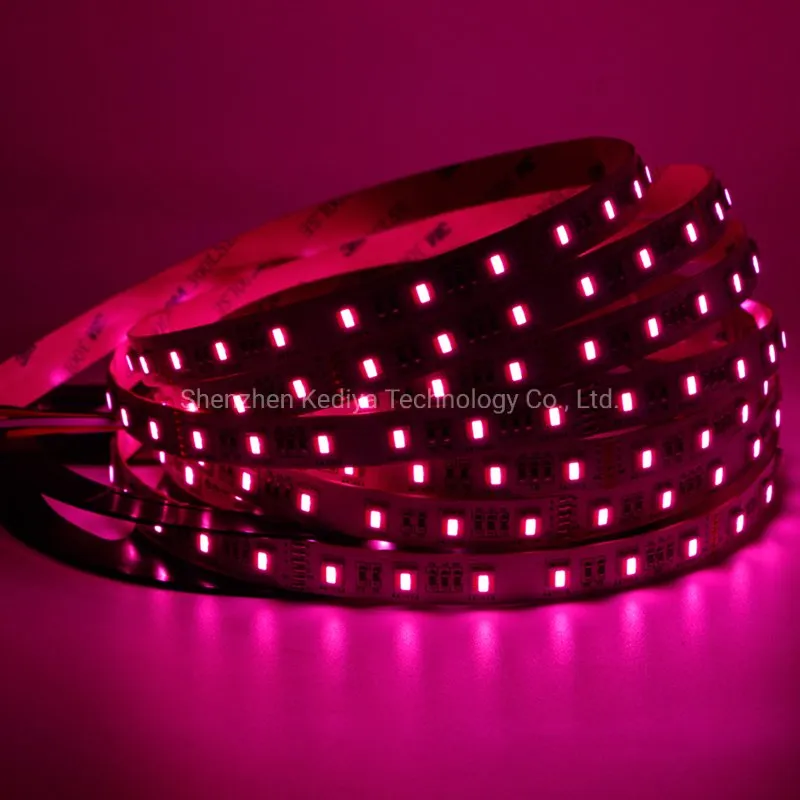

Protection Levels (IP Ratings)
IP20 (Bare Board)
Designed for dry indoor environments. Keep protected from moisture and water contact.
IP65 (Silicone Dropper)
Ideal for damp internal environments including bathrooms, kitchens, and hallways.
IP67 (Silicone Tube)
Excellent physical protection. Suitable for indoor and general outdoor installations.
IP68 (Silicone Filled Tube)
Maximum sealing. Submersible design suitable for outdoor and underwater setups.

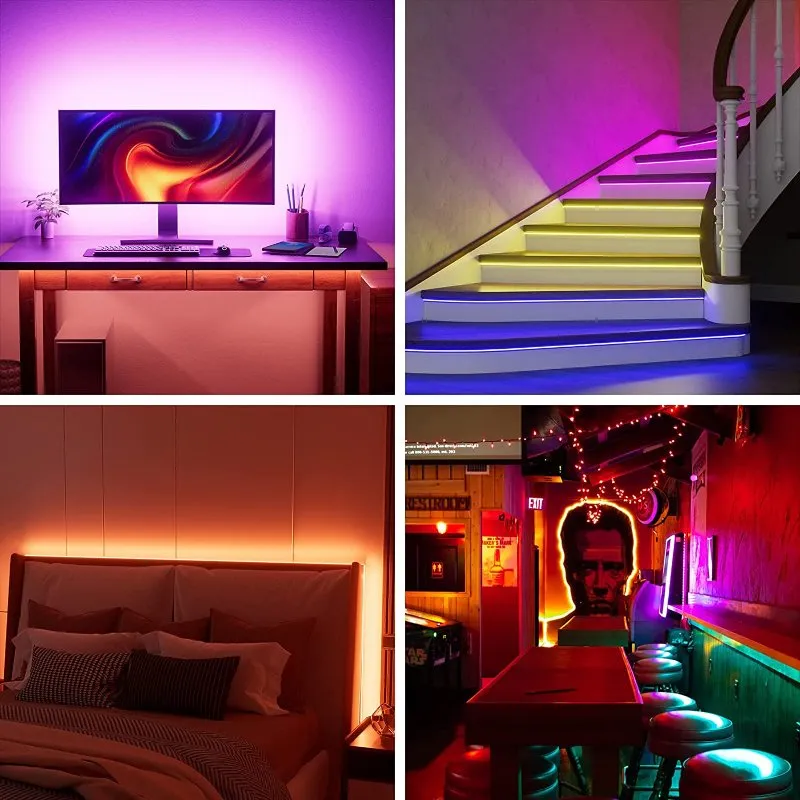

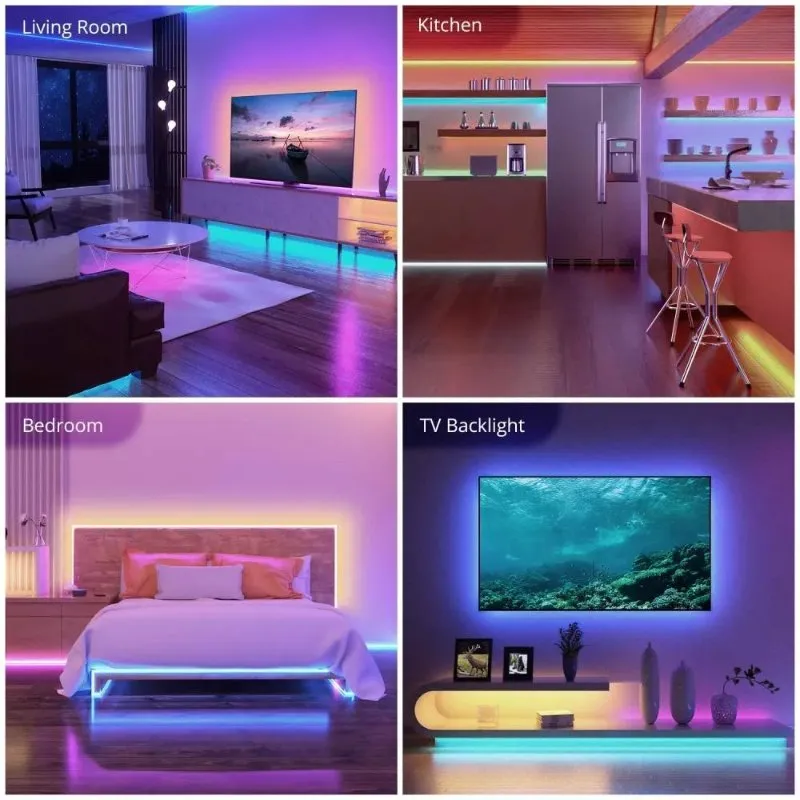

Product Applications
- Hotel, kitchen, and modern house cove lighting
- Hospitals, museum, and educational institutions
- Bar, performance stage, casino, KTV, and retail display
- Storefronts, cafes, restaurants, and shopping centers
- Signage backlighting and decorative commercial illumination
Certifications & Shipping Details
Packaging & Shipping Information
- Packaging: 5 meters/roll packaged in anti-static bags, with standard shipping carton boxes (up to 100 rolls per carton).
- Delivery Time: Standard dispatch in 3-5 working days for orders below 2000 meters.
- Shipping Methods: Supported express carriers (DHL, FedEx, UPS) and general air/sea transport options.
Production Facility Overview
Frequently Asked Questions
Q1: How do you ensure high quality?
We implement a strict quality control workflow including raw material verification, robust training programs for all technicians, 100% online testing, and a comprehensive final inspection prior to dispatch. Standard certifications like ISO9001, ISO14001, and SGS confirm our strict standards.
Q2: Can you provide custom design services?
Yes! We have an experienced R&D engineering team ready to provide custom designs, customized circuit board dimensions, specialized color parameters, and OEM styling according to your requirements.
Q3: If I need sample, could you support?
We can provide standard product samples free of charge. Shipping and handling costs are paid by the customer. Providing an international express account (such as DHL/FedEx/UPS) for freight collect helps expedite sample delivery.
Q4: How do you ship the goods and how long does it take to arrive?
Standard orders are shipped via DHL, UPS, FedEx, or TNT express, typically arriving in 3 to 5 business days. Sea cargo and air freight shipping options are also available for bulk orders.
Q5: How long is your product warranty?
We offer a comprehensive 2 to 5 year warranty on our LED products. During the warranty period, we will repair or replace any items displaying manufacturing defects or performance degradation.
Q6: What is the typical lead time?
Sample orders require 3 to 5 days. Medium batch orders are completed in 10 to 15 days. Bulk order delivery schedules are negotiable based on production volume.
