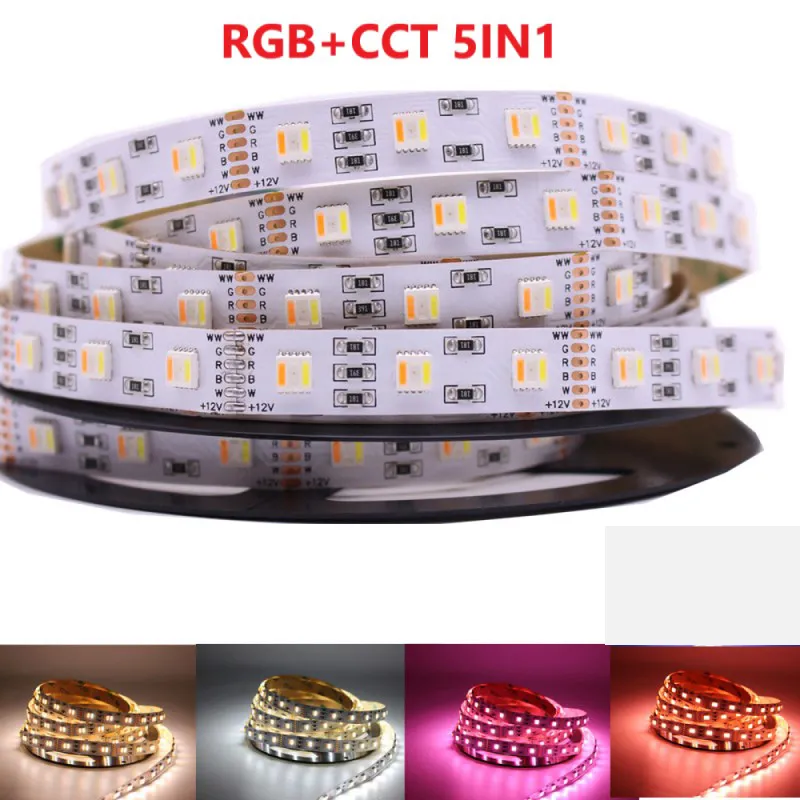

IP20 IP65 IP67 IP68 Holiday Christmas Lighting Waterproof 60leds/M 12mm FPC 5in1 RGBWW RGBCCT RGB+CCT 5050 LED Strip Light

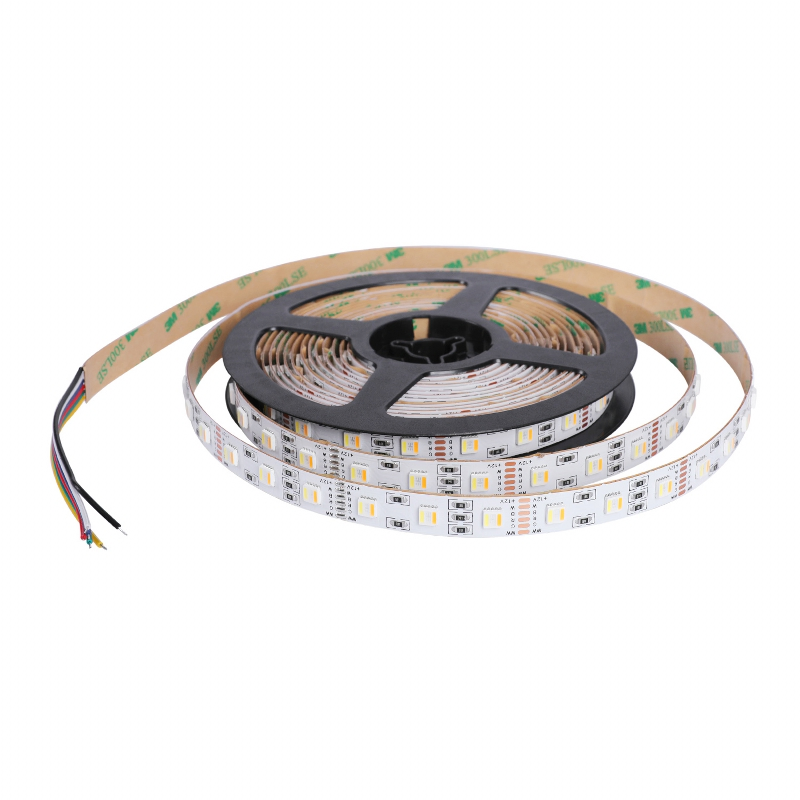

5050 RGBCCT 60LEDS/M 12V/24V SMD LED STRIP LIGHT
• Long lifetime • Dimmable • High CRI
• Best used for Decoration and Lighting.
| Parameter | Specification Details |
|---|---|
| Model Number | K-F5050-60L24RGBCCT |
| LED Type | Epistar SMD 5050 RGBWW+RGB+CCT 5 in 1 LED chip |
| Color Temperature | RGB+CCT: RGB + 3000K + 6000K |
| PCB Color | White PCB |
| PCB Width | 12mm |
| View Angle | 120 Degree |
| LED Qty | 60 LEDs/M |
| Power | 19.2W/M (Theoretical power is 19.2W/M, actual working power is around 12W/M) |
| Voltage | DC24V / DC12V |

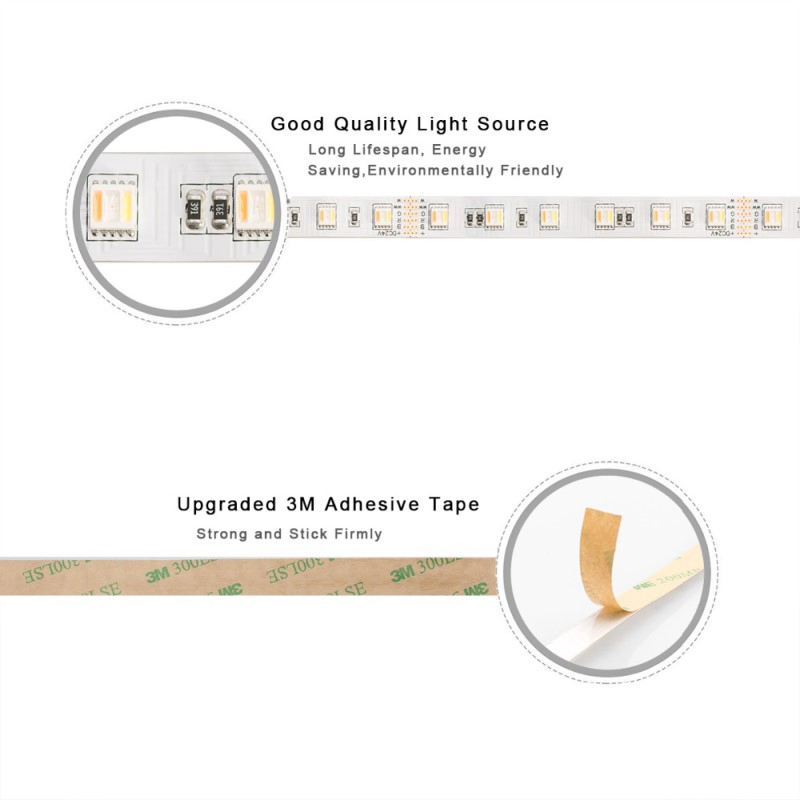

| Installation | With 3M adhesive back, easy for installation |
| IP Rating | IP20 (Non-waterproof) / IP65 (Silicon glue rainproof) / IP67 (Silicon tube waterproof) / IP68 (Silicone tube with silicone filling) |

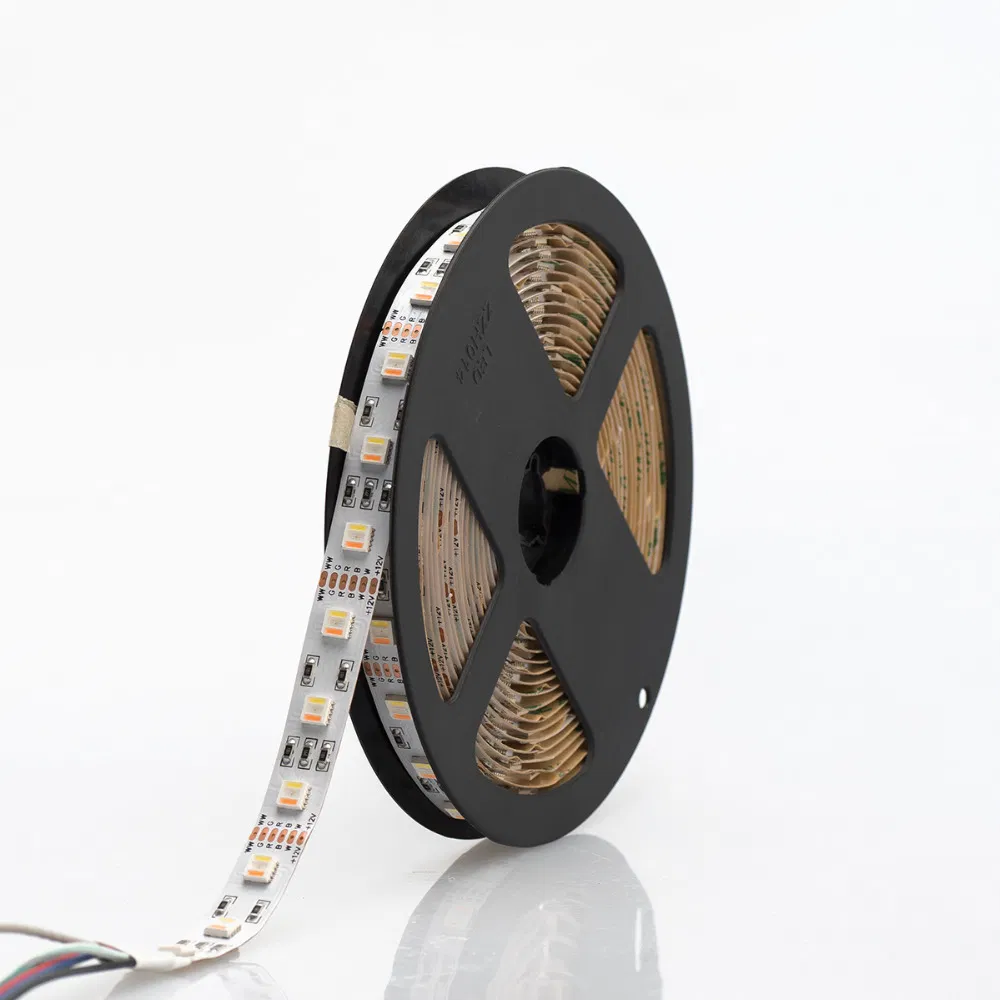

| Package | 5M/Reel with anti-static bag, or customized |

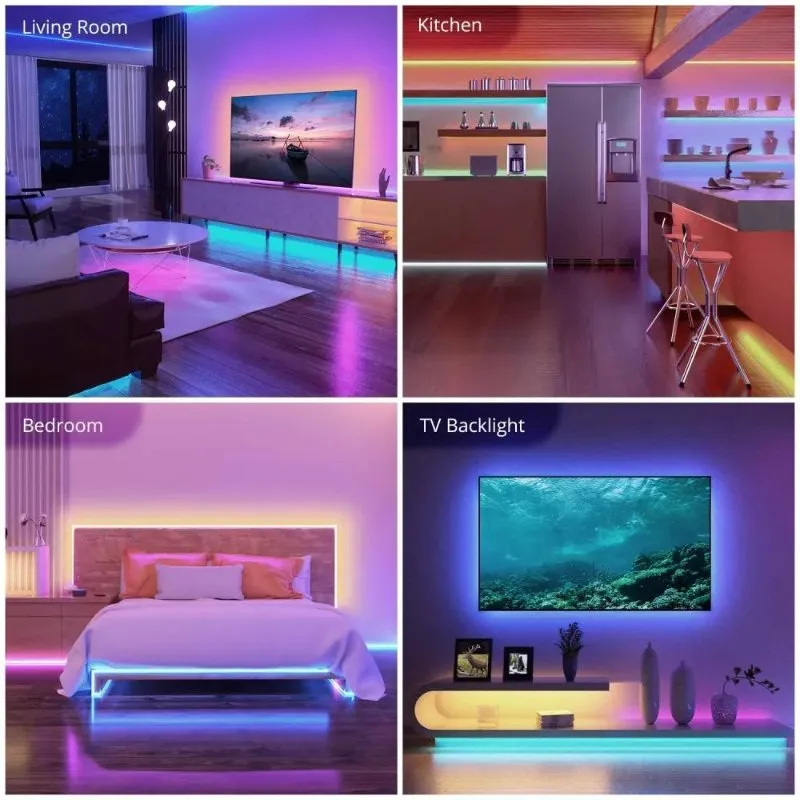

| Application | Indoor / Outdoor decorative lighting, Ceiling lighting, Sign lighting etc. |
| Other LED Types | SMD2835 / SMD5630 / SMD5730 / SMD3014 / SMD3528 / SMD3535 / SMD3838 / SMD7020 / SMD8520 |
1. Power Supply: Please use a DC24V power supply for DC24V LED strip, otherwise you can destroy the entire strip.

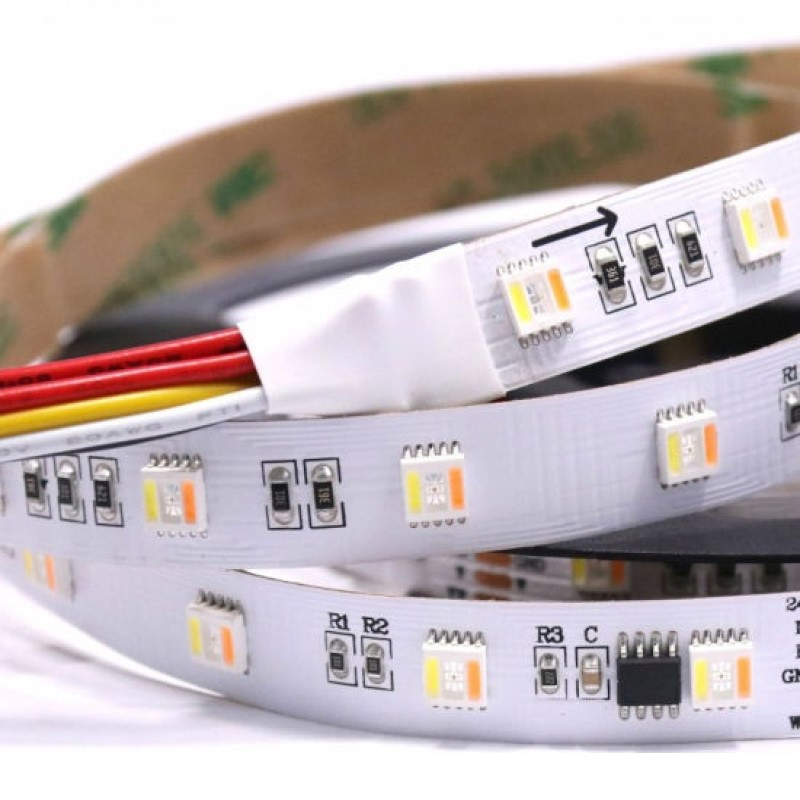

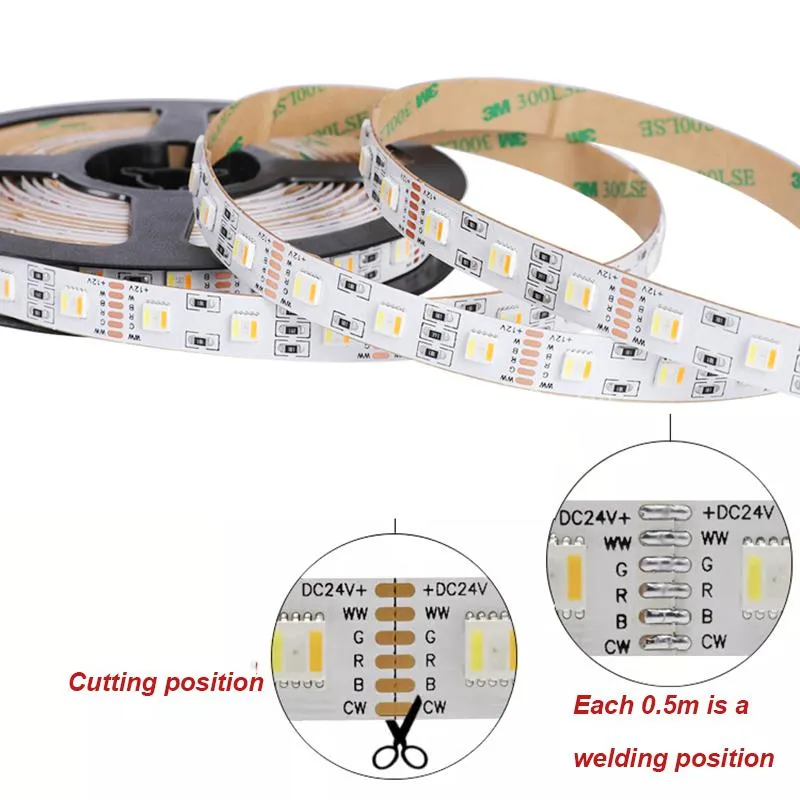

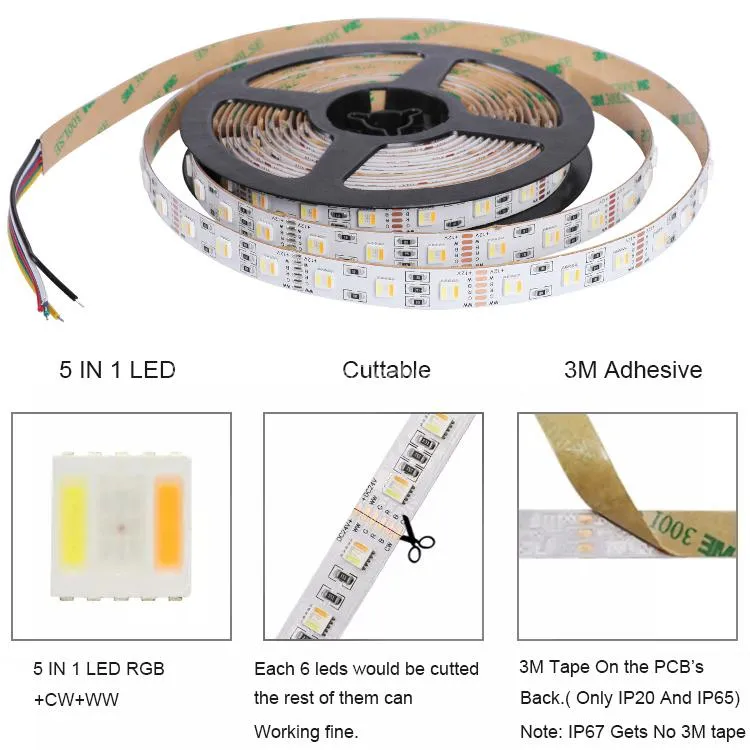

2. Cuttable: You can cut this strip easily with wire cutters. Solder to the 0.1" copper pads and you are ready to go. DC24V: Cuttable per 6 LEDs, with cut-lines every 10cm.
3. Control: This 5 channel strip requires a controller with a 5-channel output. We do not recommend turning on all 5 colors at the same time to limit consumption.
RGBWW = RGB + Cold White (6000-6500K) + Warm White (2800-3200K)

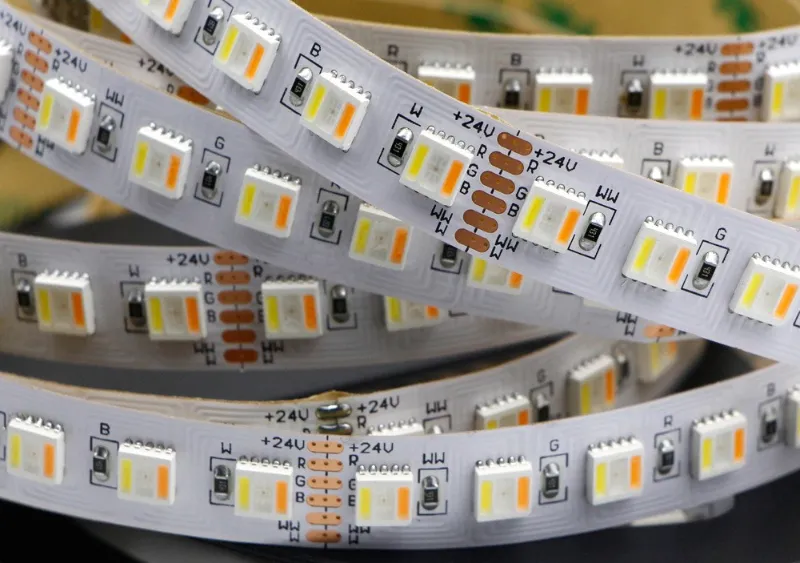

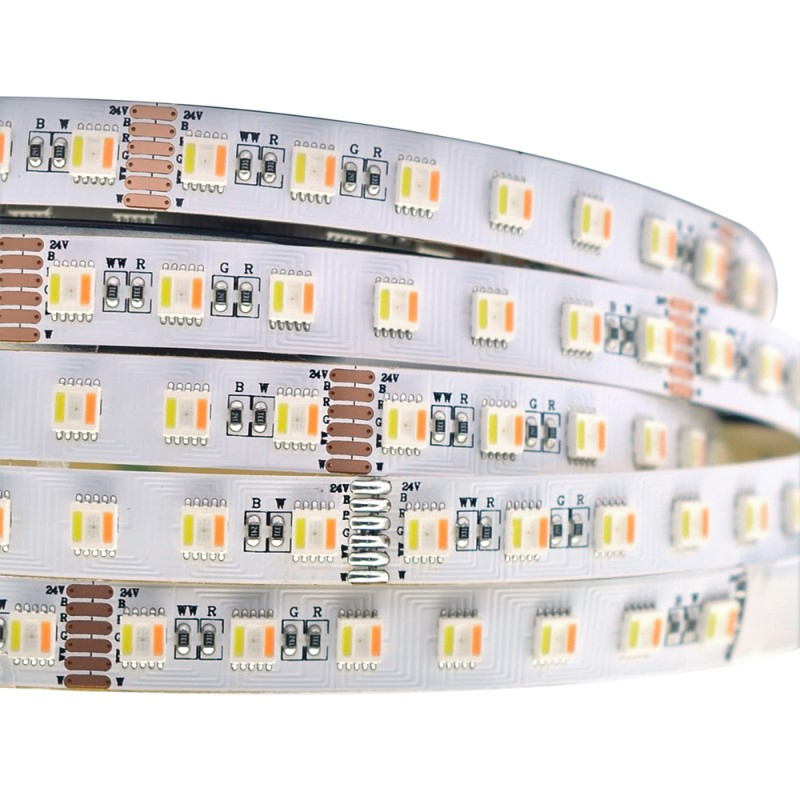

Superbright 5050 RGBWW LED Strip Light with high intensity and reliability. Every single 5050 LED houses 5 color chips inside (Red, Green, Blue, Cool White, and Warm White).

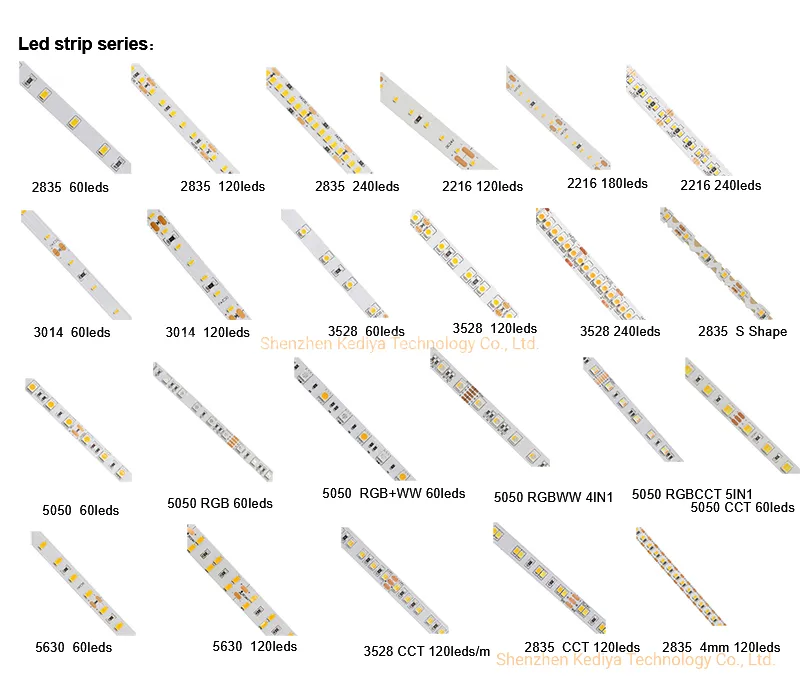

| Model | LEDs/m | Voltage | Power | CRI | PCB Width | Color Temp |
|---|---|---|---|---|---|---|
| K-F5050L30W | 30 | DC12V/24V | 7.2W | >80 | 10mm | 2700K/3000K/4000K/6000K |
| K-F5050L30RGB | 30 | DC12V/24V | 7.2W | - | 10mm | RGB |
| K-F5050L60W | 60 | DC12V/24V | 14.4W | >80 | 10mm | 2700K/3000K/4000K/6000K |
| K-F5050L60RGB | 60 | DC12V/24V | 14.4W | - | 10mm | RGB |
| K-F5050L60CCT | 60 | DC12V/24V | 14.4W | >80 | 10mm | 3000K + 6000K (CCT) |
| K-F5050L60RGB+W | 60 | DC12V/24V | 14.4W | >80 | 10mm | RGB + 3000K/4500K/6000K in separate LEDs |
| K-F5050L60RGBWW 4 in 1 | 60 | DC12V/24V | 14.4W | >80 | 12mm | RGB+W 4 colors in 1 LED |
| K-F5050L60RGBCCT 5 in 1 | 60 | DC12V/24V | 19.2W | >80 | 12mm | RGB+W 5 colors in 1 LED |
| K-F5050L120W-1 | 120 | DC12V/24V | 18W | >80 | 10mm | Single row LEDs |
| K-F5050L120WW-2 | 120 | DC12V/24V | 20W | >80 | 15mm | Double rows LEDs |
