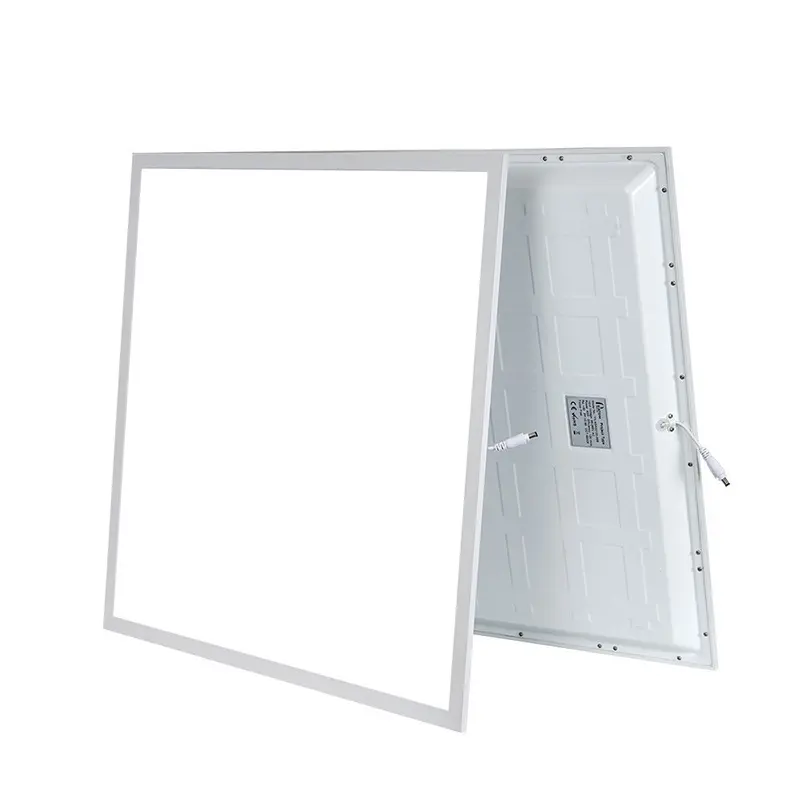

Ultra-Thin 24W LED Panel Light Commercial Ceiling Lamp Embedded Lights Aluminum Square Recessed Panel Lighting

Product Description

Product Description
* The bulk price can be negotiated!!!
  • 24W 36W 40W 60W; freely choose to meet your needs
  • Light Efficiency: 100lm/W

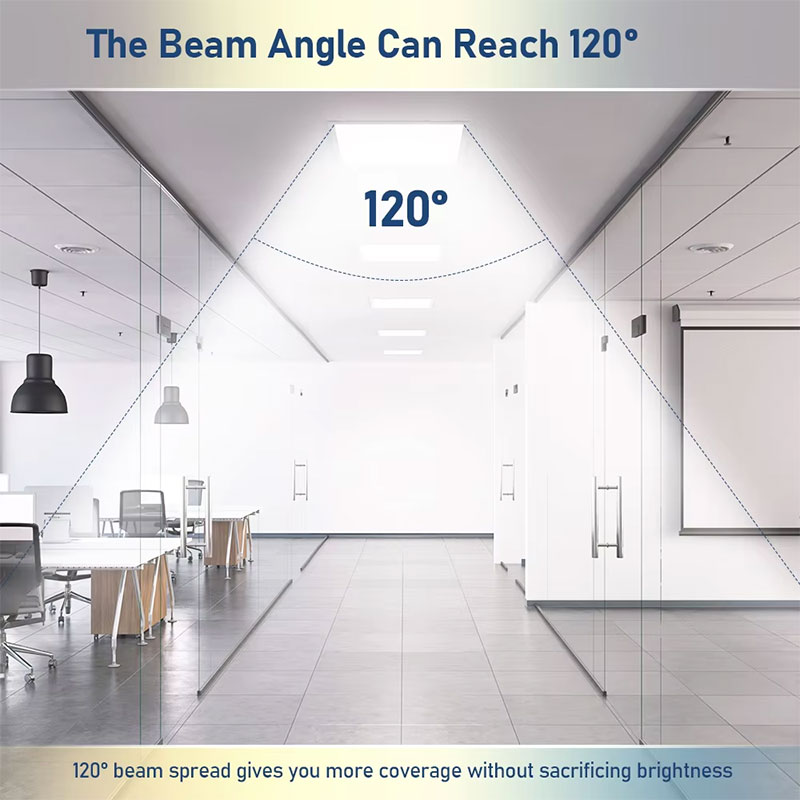

  • 60°, 90°, 120° degree glow
  • Die-casting aluminum with polyester powder coat finish
  • Waterproof grade IP54
  • Easy installation and low maintenance
  • Energy savings, no UV and IR radiations, emits low heat
  • ETL / cETL / FCC / CE / RoHS approval
  • 3 years warranty
Product Parameters Overview
Product Parameters
ITEM No. : MPL-0303-24 MPL-0606-36 MPL-0306-40 MPL-0312-40 MPL-0612-60
Led Power 24w 36w 40w 40w 60w
Input Voltage AC85-265V AC85-265V AC85-265V AC85-265V AC85-265V
Led Lamp 2835LED 4014LED 4014LED 4014LED 2835LED
Material Aluminum/ PMMA Aluminum/ PMMA Aluminum/ PMMA Aluminum/ PMMA Aluminum/ PMMA
Luminous Flux 2640LM 3960LM 4400LM 4400LM 6600LM
Light efficiency 110lm/w 110lm/w 110lm/w 110lm/w 110lm/w
Weight: 1.45kg ±0.5kg 5kg ±0.5kg 2.8kg ±0.5kg 5.5kg ±0.5kg 10kg ±0.5kg

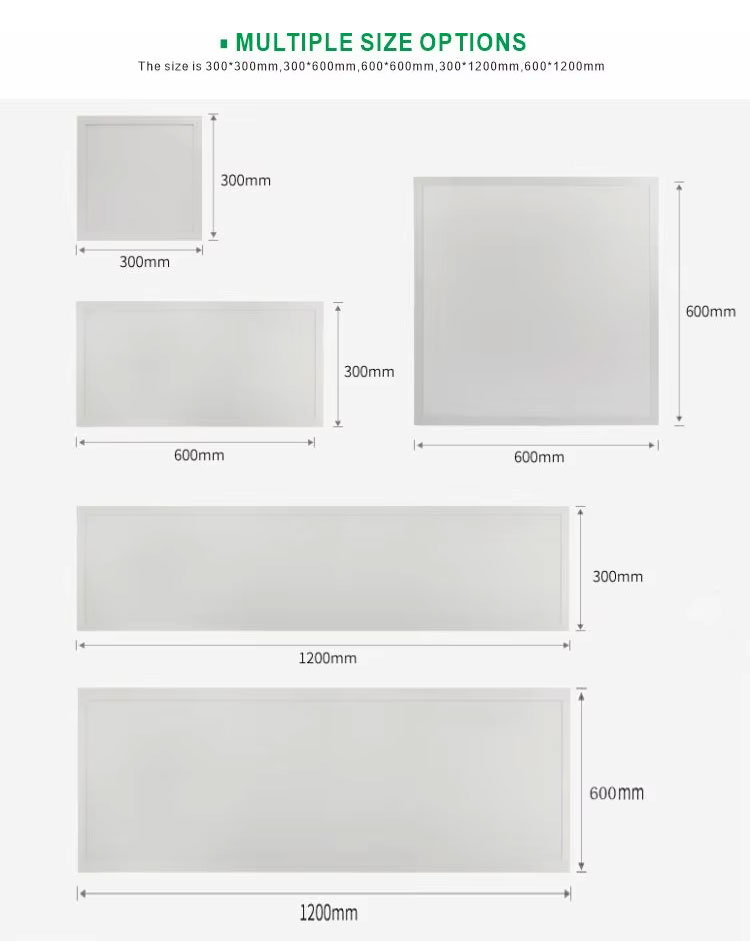

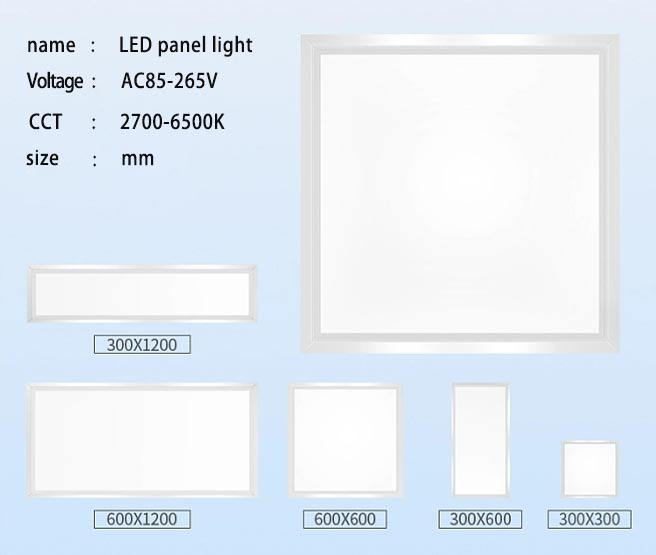

Size: 300*300*13mm 595*595*10mm 300*600*10mm 295*1195*10mm 595*1195*10mm
Packing size 420*360*70mm 740*670*70mm 660*430*70mm 1270*440*70mm 1270*670*70mm
CRI: >80 >80 >80 >80 >80
IP Grade: IP54 IP54 IP54 IP54 IP54
Parameters details

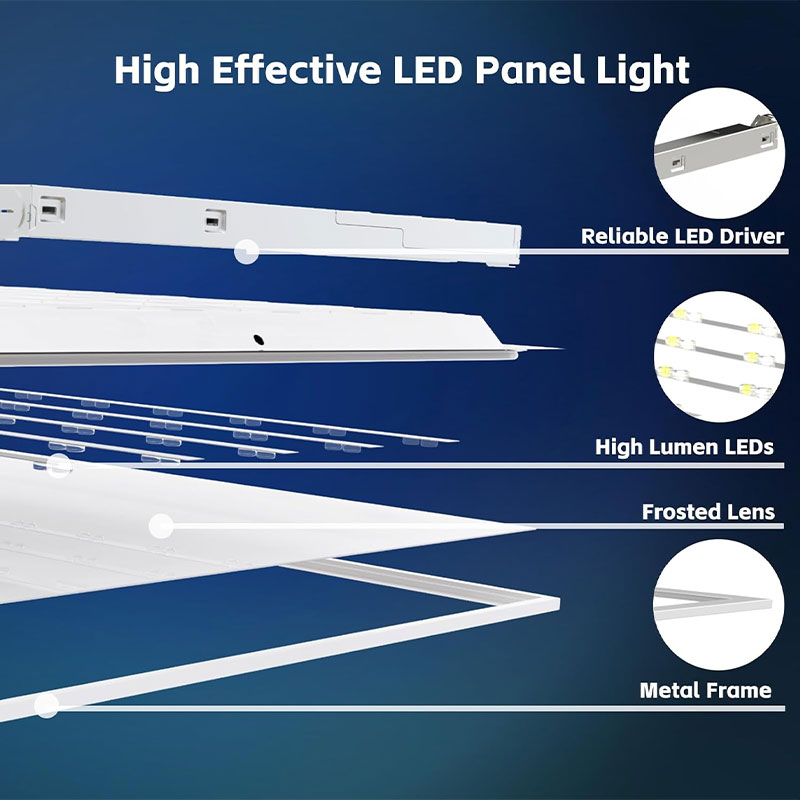

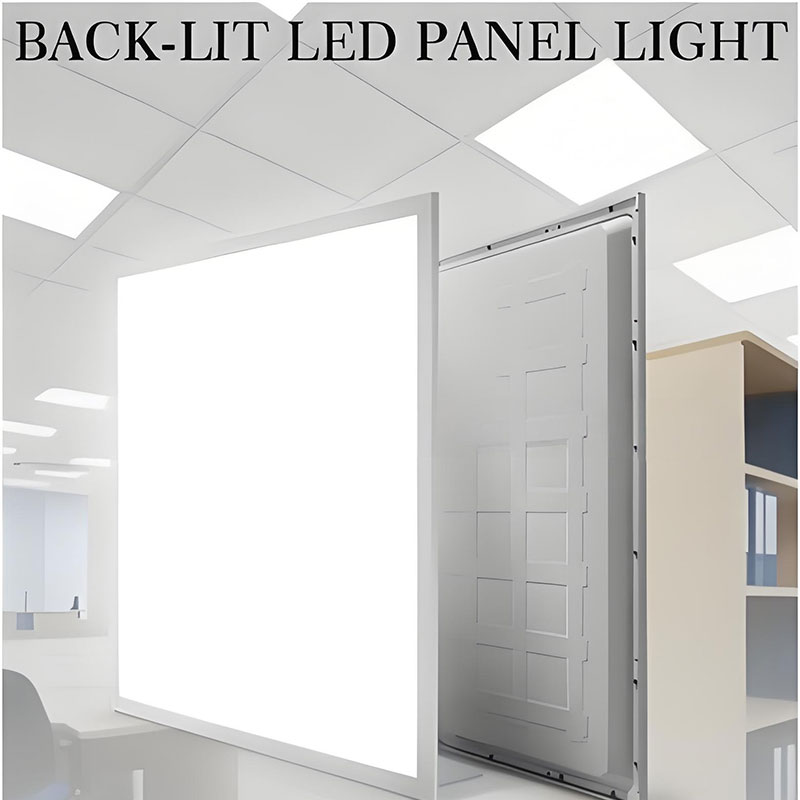

Panel Light structure

FEATURE:

  • Backlit LED for superior white and brightness uniformity.
  • Performance stability, Good Promotion Price.
  • Low energy consumption, good heat dissipation.
  • 50,000 hours minimum life expectancy.

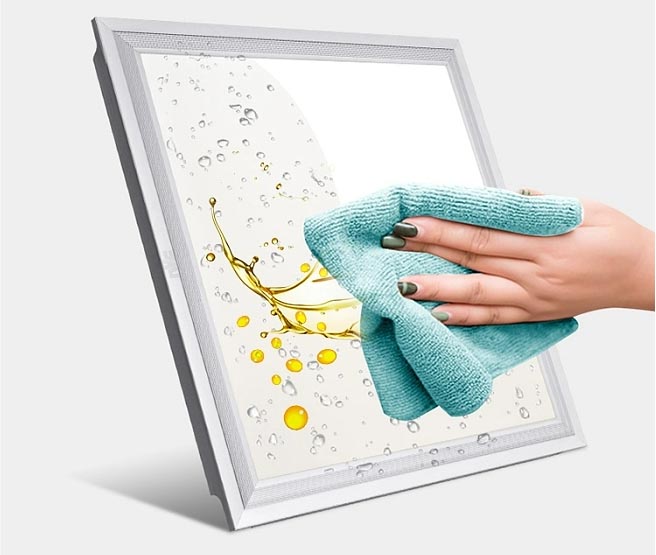

  • Durable diffuser for easy cleaning.
  • 2-3-5 years warranty Optional.

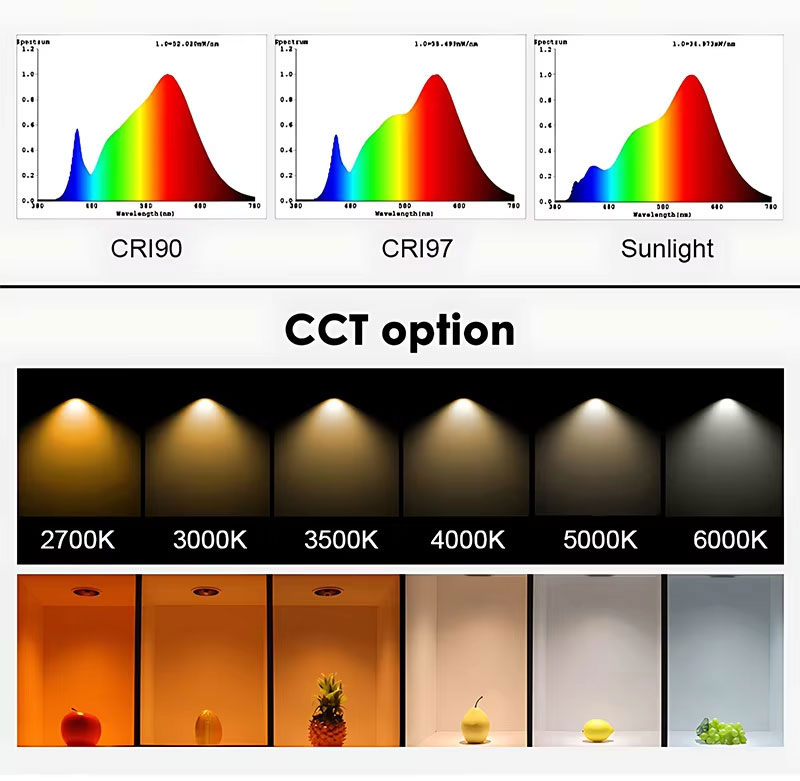

Panel light dimension Lighting performance

CCT Changeable Backlit Led Panel Light 600x600

  • 3000K-4000K-6000K, three colors switch freely, greatly save stocks
  • Low consumption; More than 80% saving of the power
  • Long lifetime 50,000 hours
  • Aluminum extrusion with good heat-dissipation
  • CRI:>80, IP20 protection class
  • High luminous efficacy 90-140LM/W optional
  • LIFUD, BOKE, TRIDONIC driver for choice, flicker free
  • No LGP inside, won't get yellowing
  • Simple structure, low failure rate, easy to maintain and repair
  • Multiple installation modes and accessories are available including ceiling recessed, suspended, surface

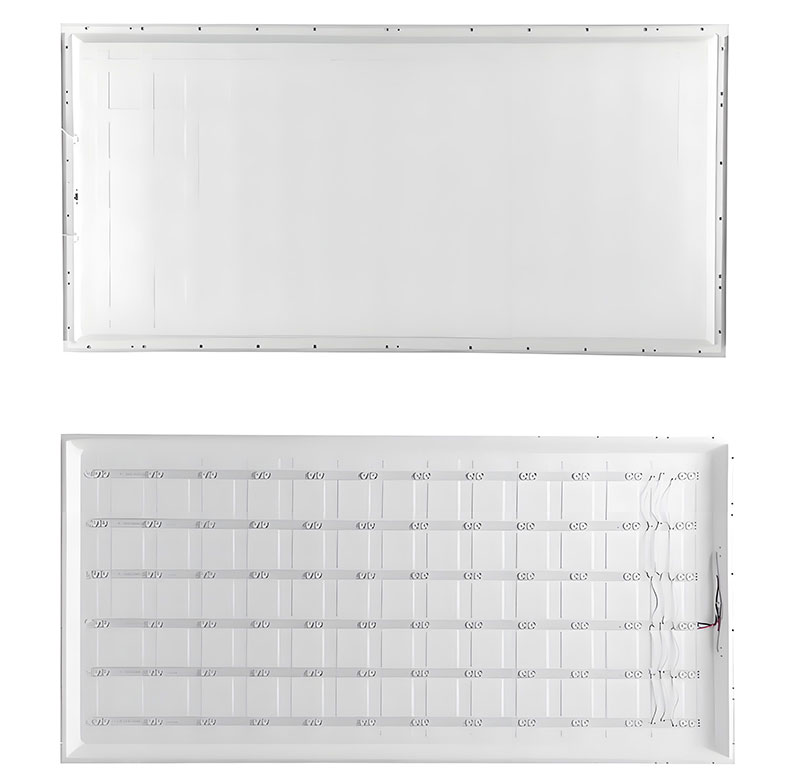

CCT changeable showcase

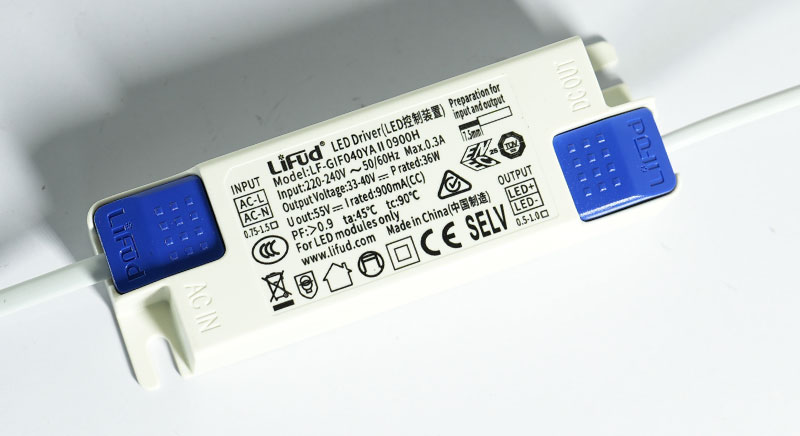

High Quality driver

High Quality driver LIFUD, BOKE, TRIDONIC, EAGLERISE

Power Factor>0.9 | No flickering | 50,000 hours lifespan | CE, Rohs, CB, ERP, SAA approved | Five Years Warranty

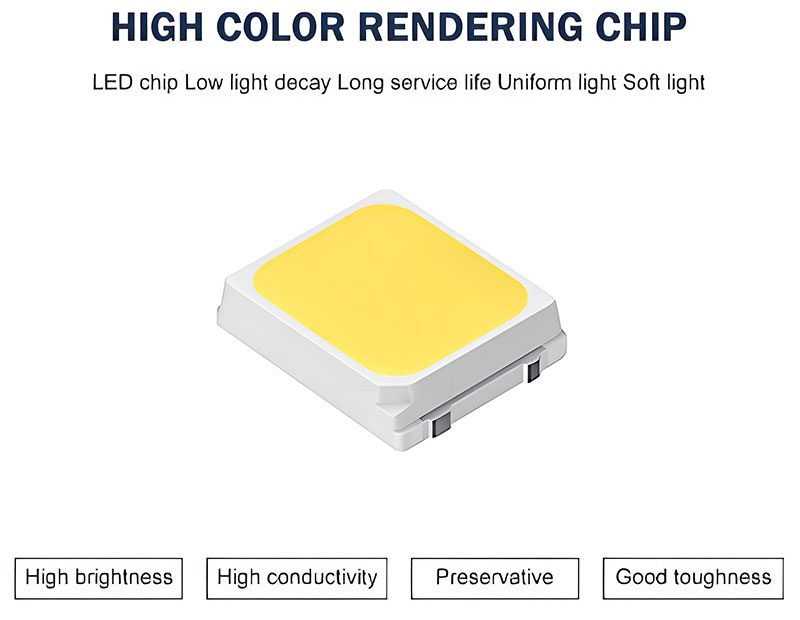

Epistar SMD2835 LED Chip

Adopt Epistar SMD2835 LED Chip

High brightness, 1W/PC, total 48PCS (600x600), 100-150LM/W | CRI>80 | Pass LM80 test

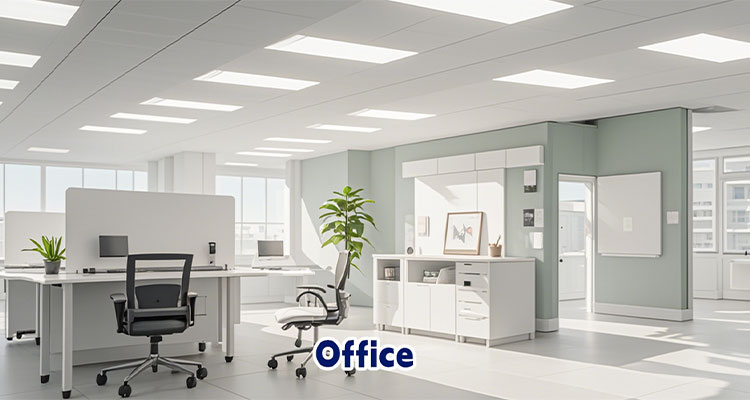

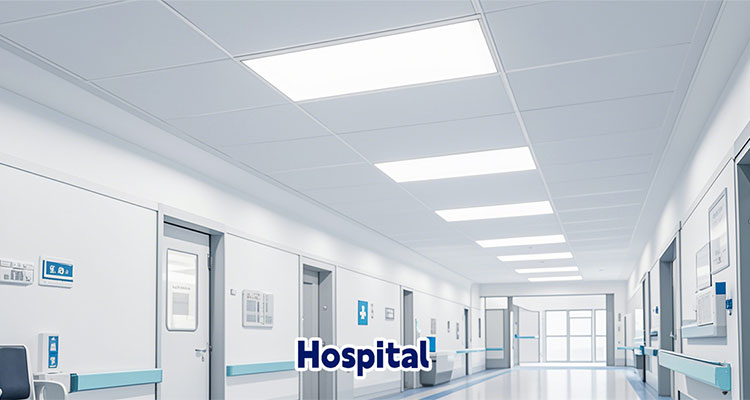

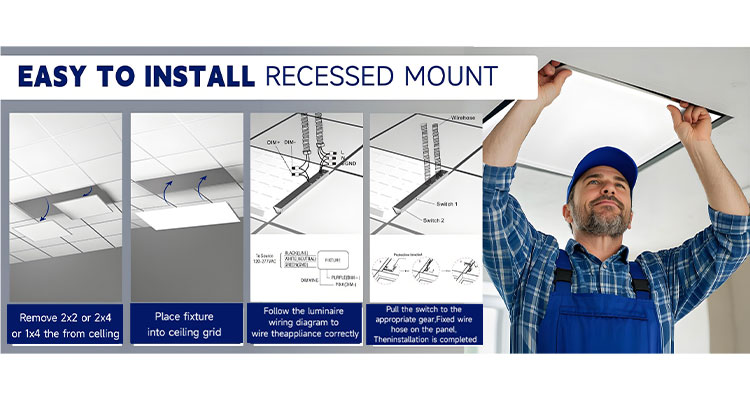

Product detail 1 Product detail 2 Product detail 3 Product detail 4 Product detail 5

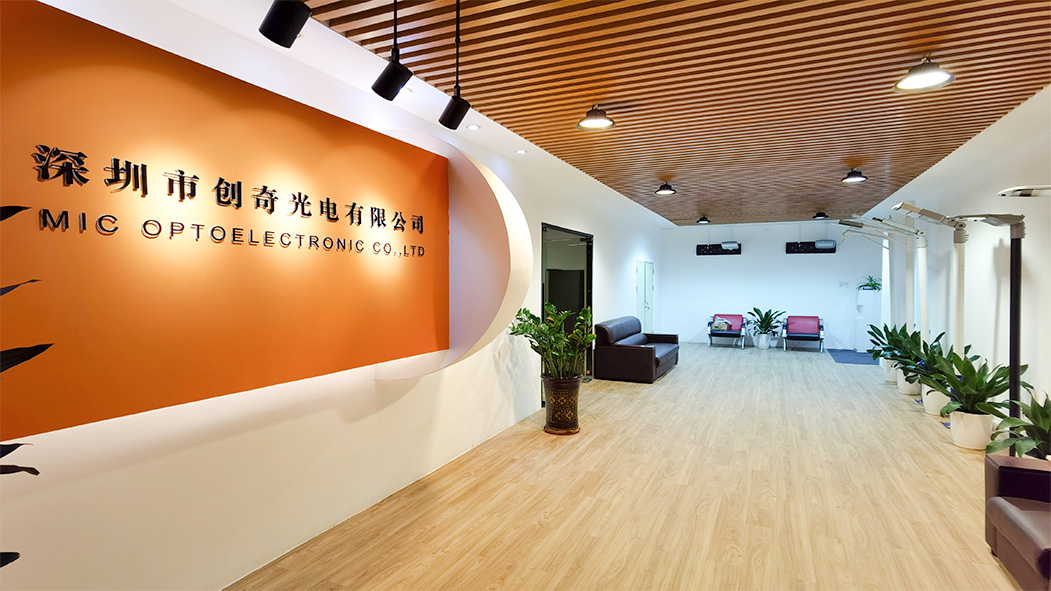

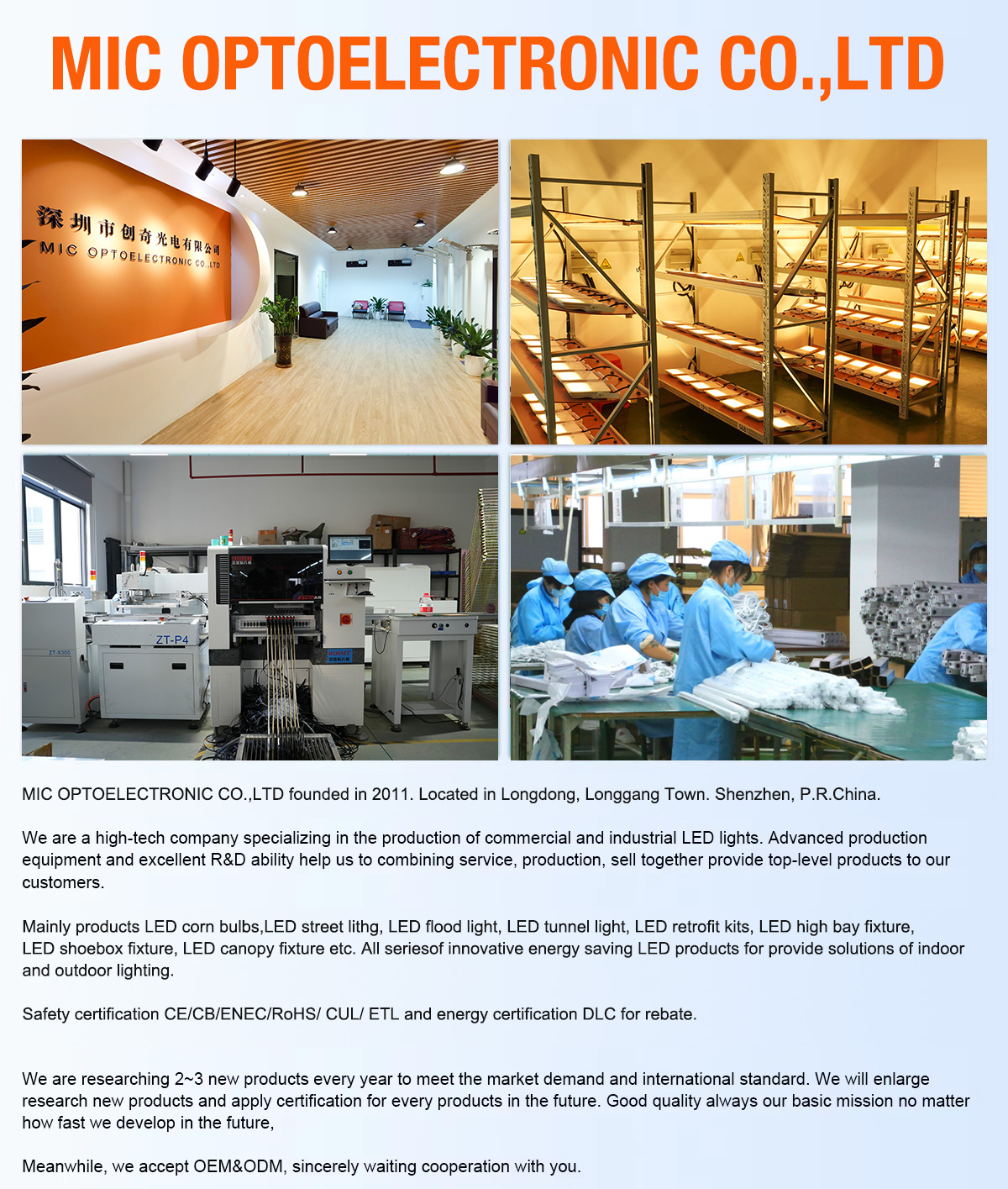

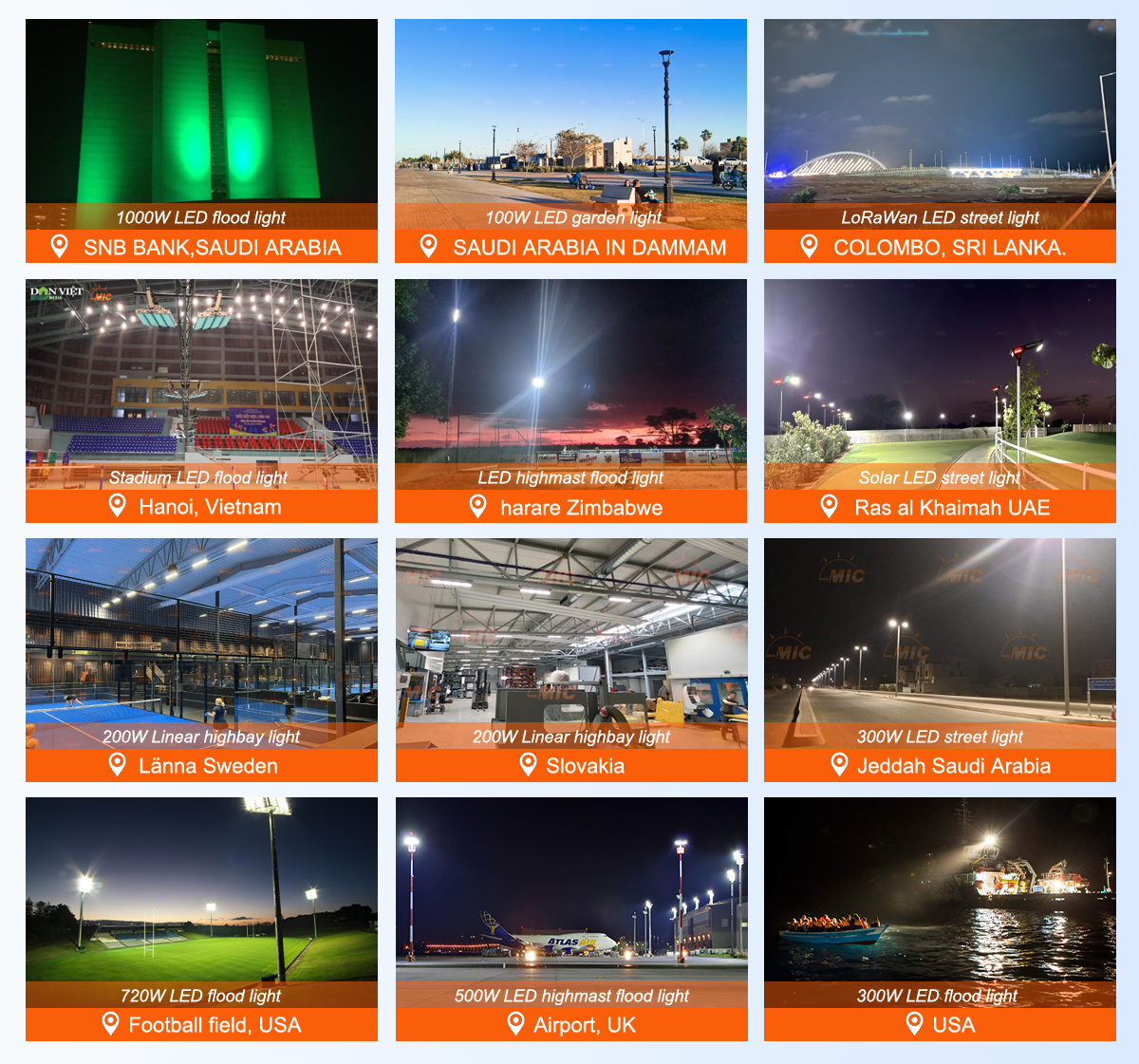

Production Facility VR Factory Warehouse Certificates Manufacturing Line Testing Area Showroom
Why Choose Us
Advantage 1 Advantage 2
Packaging and Logistics
Packaging method
Frequently Asked Questions
Are you a factory or trade company?

We are a professional LED Lighting products factory!

Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity.

Can you OEM or ODM?

Yes, we have a strong developing team. The products can be made according to your request.

Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

What is the product warranty?

We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone's satisfaction.

Do you guarantee safe and secure delivery of products?

Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
