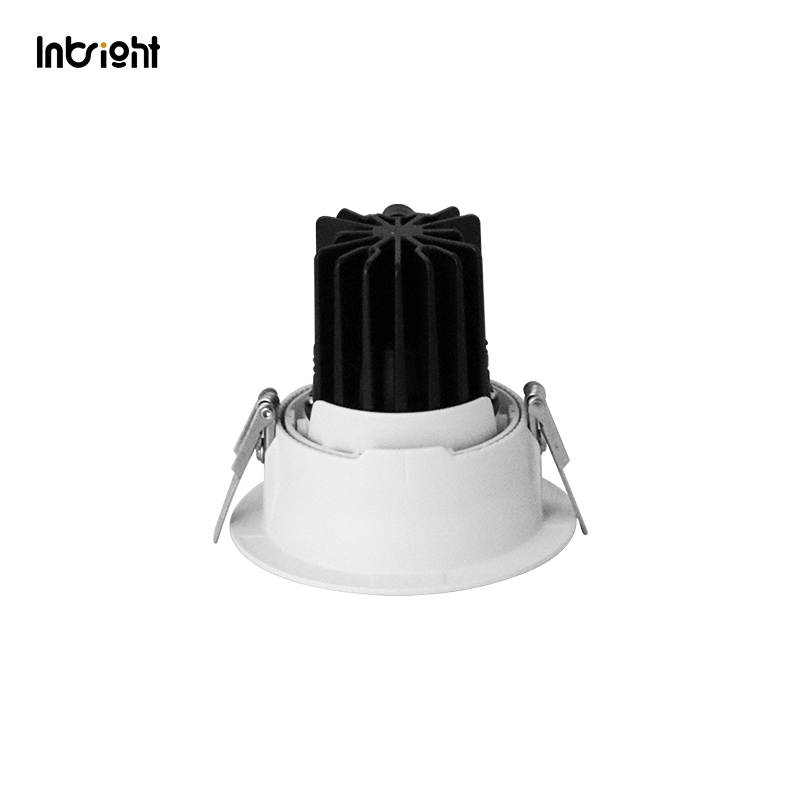

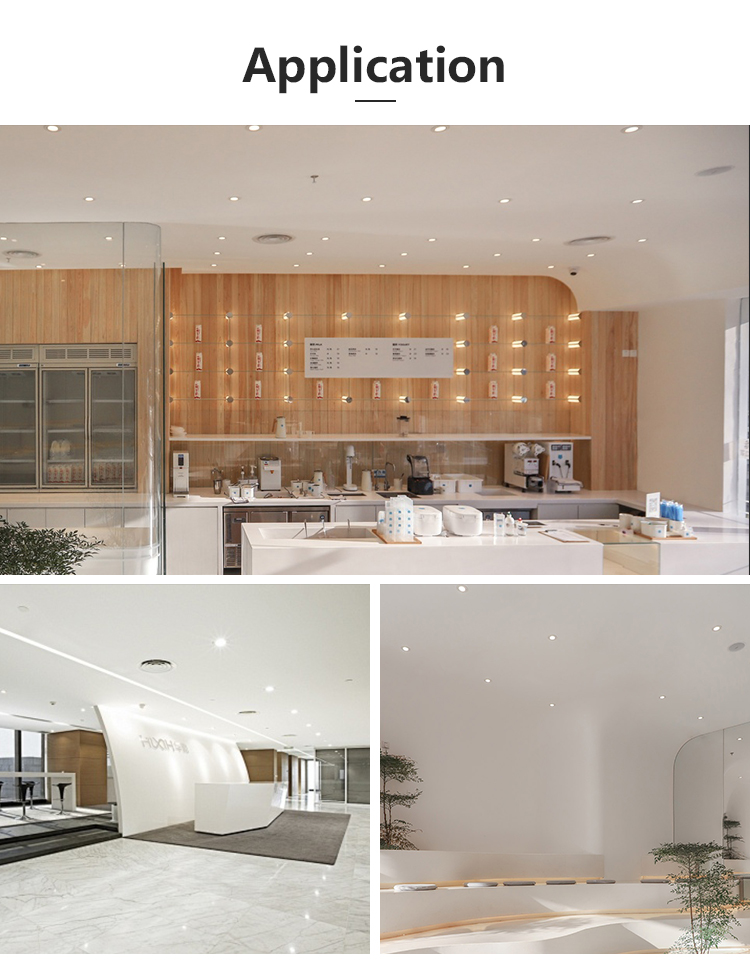

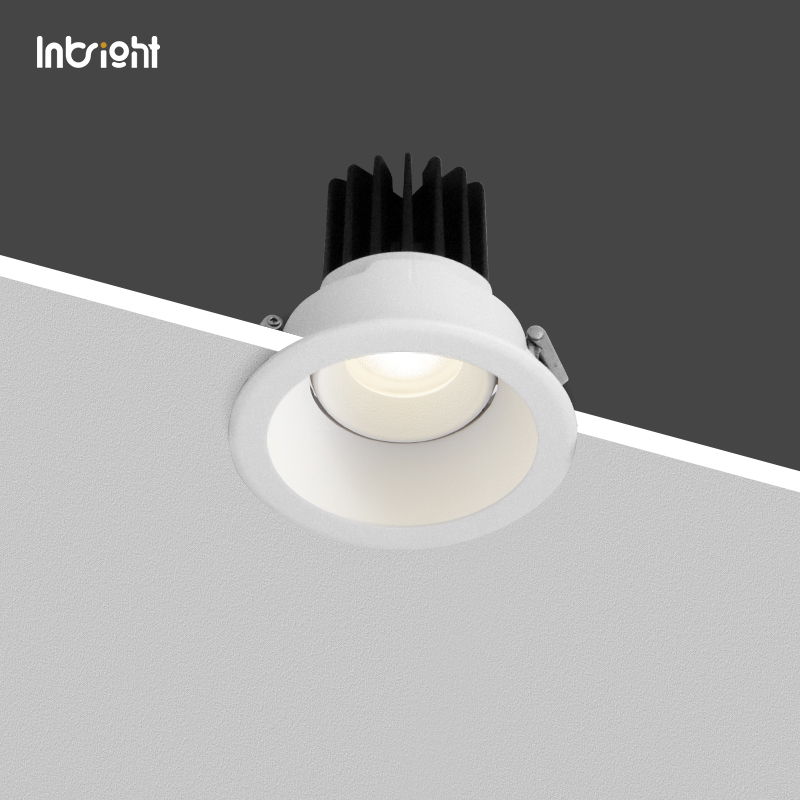

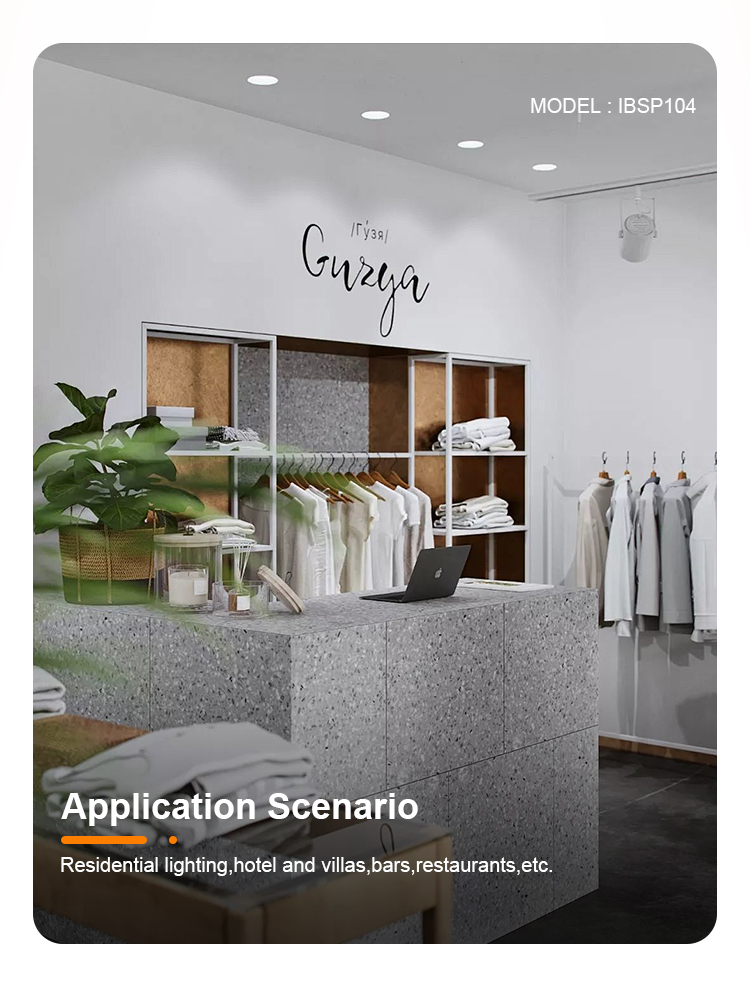

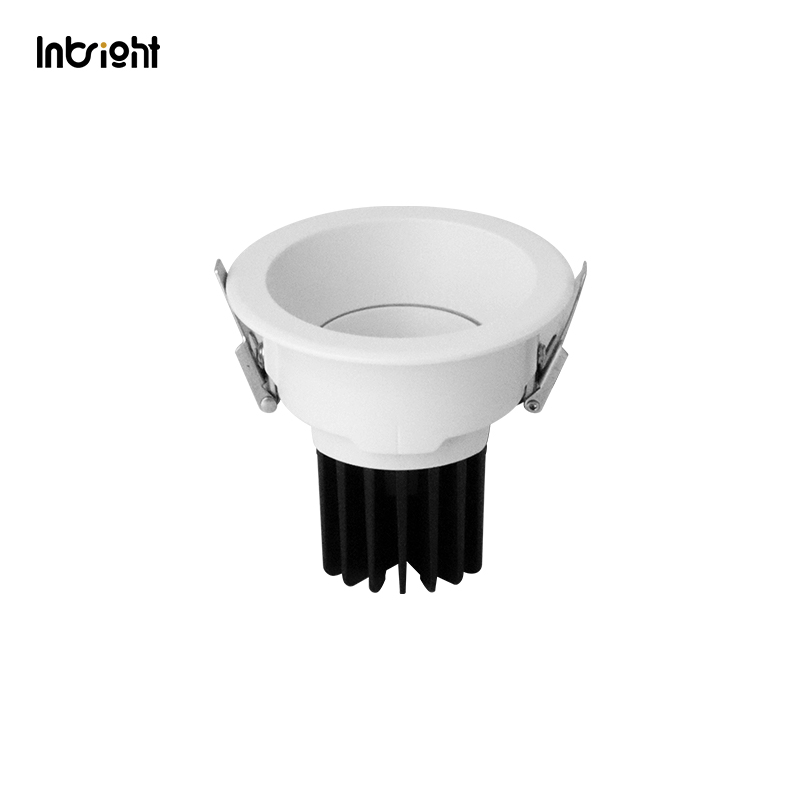

This DALI dimmable LED downlight is designed for commercial and architectural lighting. Featuring COB LED technology, anti-glare optics, and IP65 protection, it delivers efficient, comfortable, and reliable lighting for hotels, offices, and retail spaces.
Supports DALI / 0-10V / Triac for precise control
Deep recessed COB + reflector reduces glare

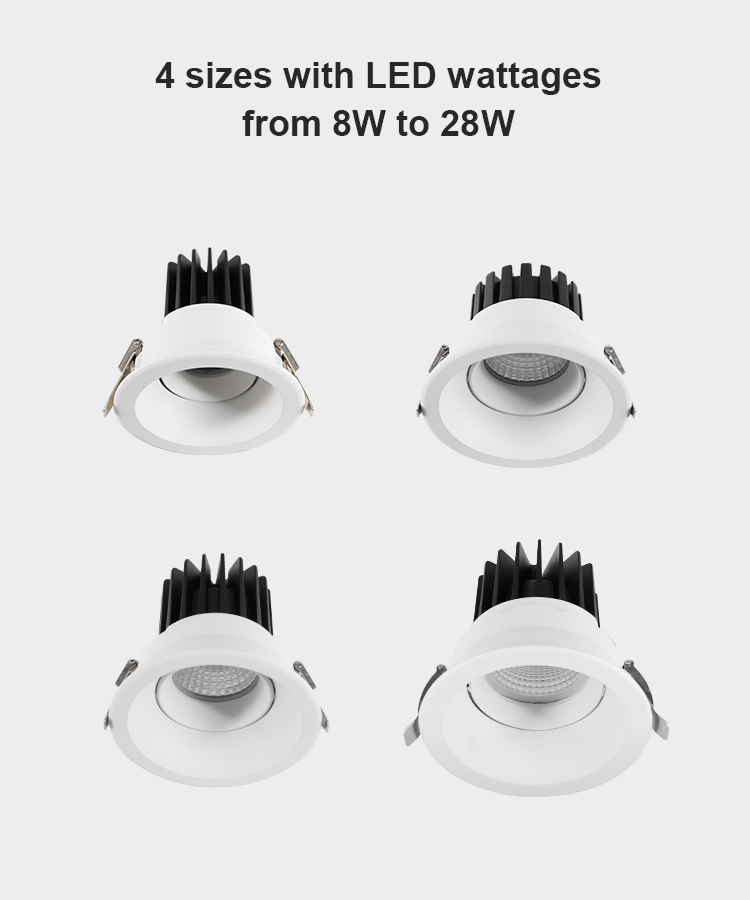

From 8W to 40W for different projects
15° / 24° / 38° / 45° / 60° flexible for accent & general lighting
CRI≥90 ensures accurate colors
Ensures durability and protection in challenging conditions
Stable performance and long lifespan
| Product Name | LED Downlight | |||
|---|---|---|---|---|
| Model No. | IBSP104CT080 | IBSP104CT095 (H78) | IBSP104CT095 (H98) | IBSP104CT120 |
| Watts | 8W | 10W | 15W | 28W |

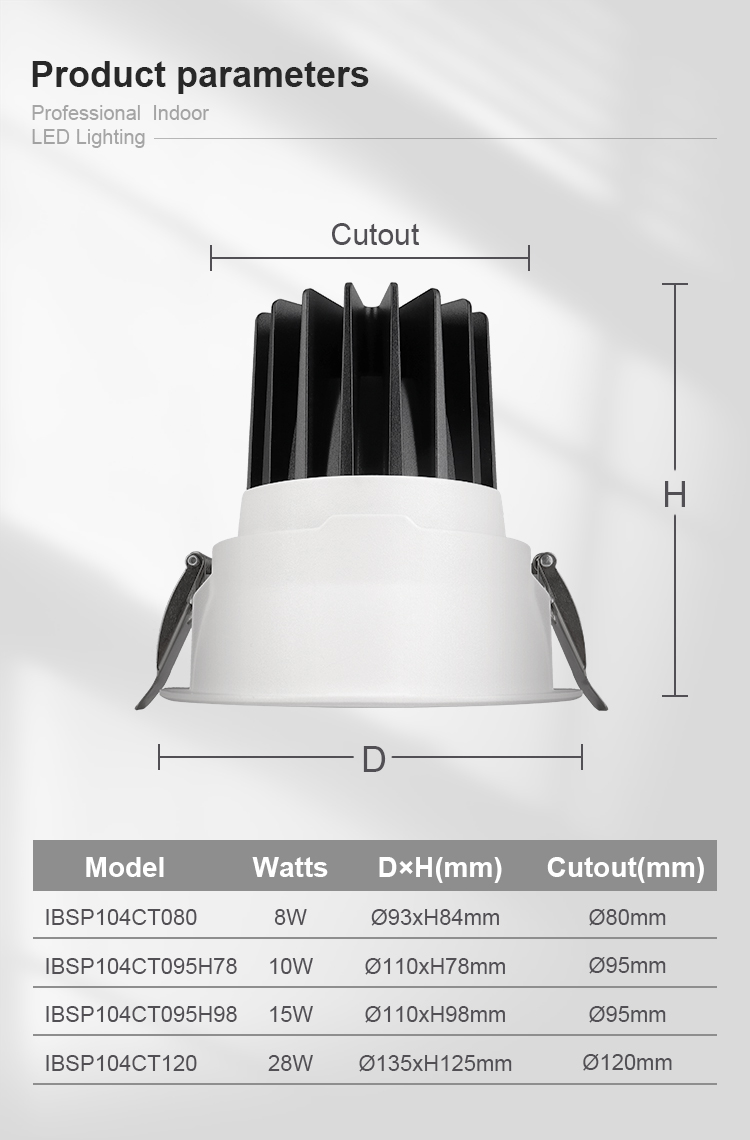

| Lamp Outer Size | Ø93mm×H85mm | Ø110mm×H78mm | Ø110mm×H98mm | Ø135mm×H125mm |
| Cutout Hole Size | Ø80mm | Ø95mm | Ø95mm | Ø120mm |
| LED Color | 2700K | 3000K | 3500K | 4000K | 5000K | 5700K | 6500K | |||
| Beam Angle | Reflector 15° | 24° | 38° | 45° | 60° Lens 15° | 24° | 38° (Adjustable: horizontal 355° + vertical 30°) | |||
| Body Material | Die-casting Aluminum | |||
| CRI | Ra.80 / Ra.90 | |||

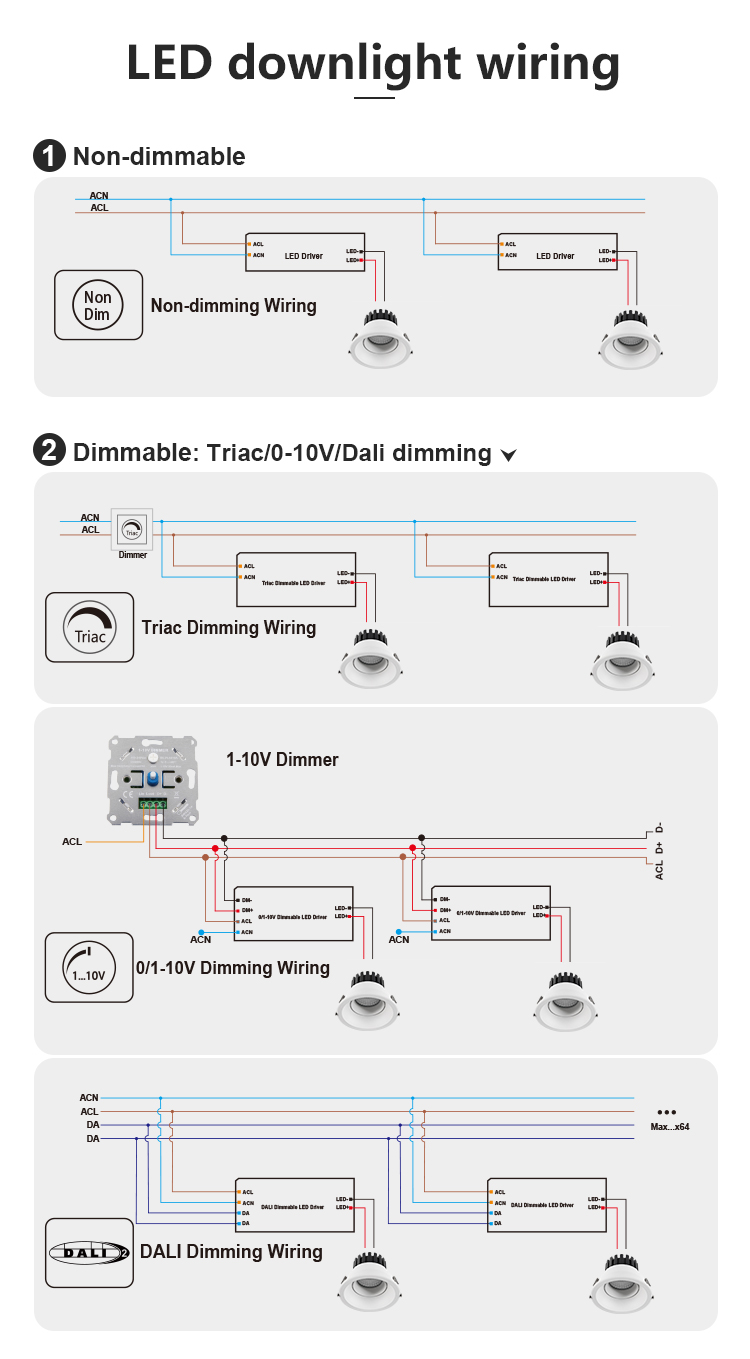

This LED downlight supports DALI, 0-10V, and Triac intelligent dimming protocols, allowing for precise control and integration into smart building systems.
Yes, it features an IP65 waterproof and dustproof design, which makes it suitable for damp locations, bathrooms, and commercial outdoor architectural lighting.
The combination of a deep recessed COB LED design and high-performance reflectors reduces direct glare, improving visual comfort for environments such as offices, lobbies, and hotels.
We offer beam angles of 15°, 24°, 38°, 45°, and 60° to accommodate both narrow accent lighting and wide general lighting layouts.

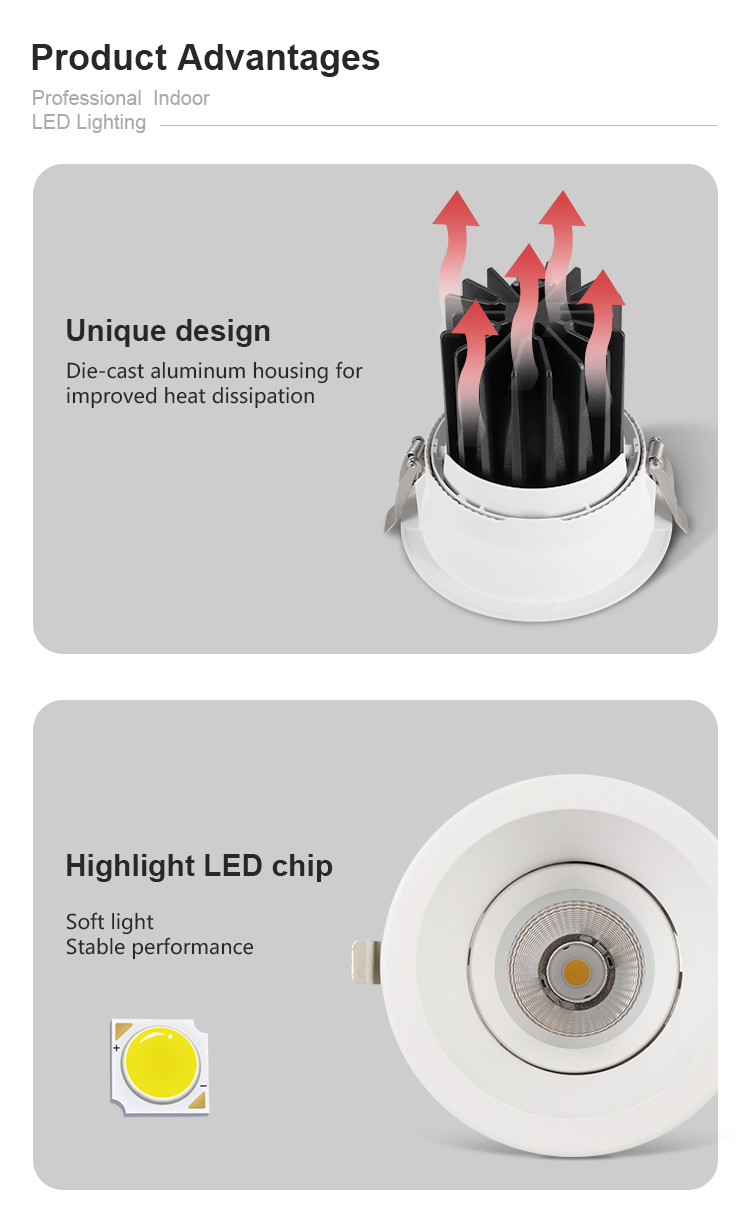

The downlight is constructed with a die-cast aluminum housing, which provides superior heat dissipation, ensures stable performance, and extends the overall lifespan of the LED components.

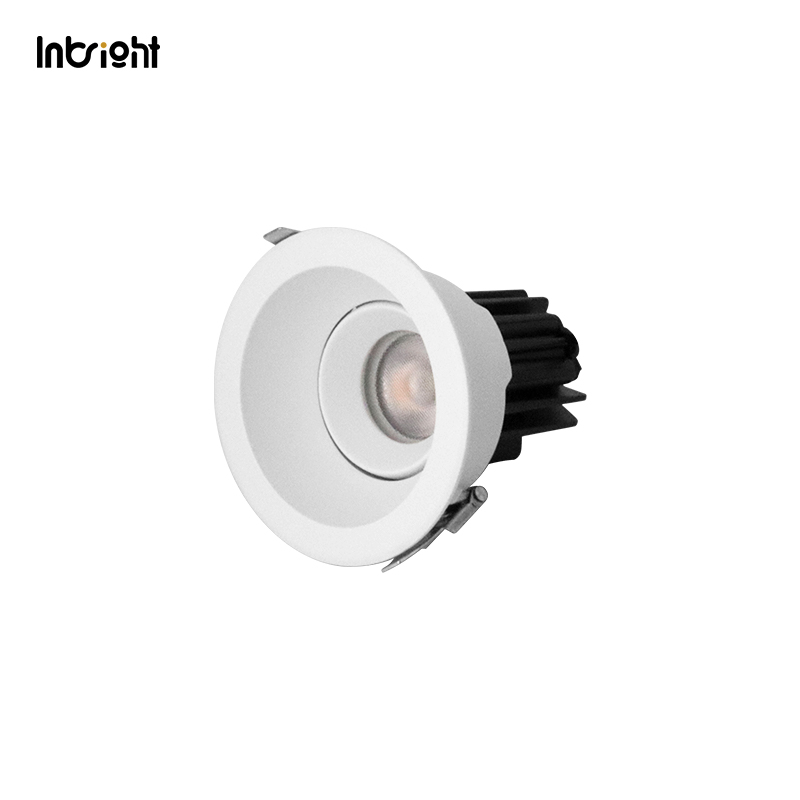

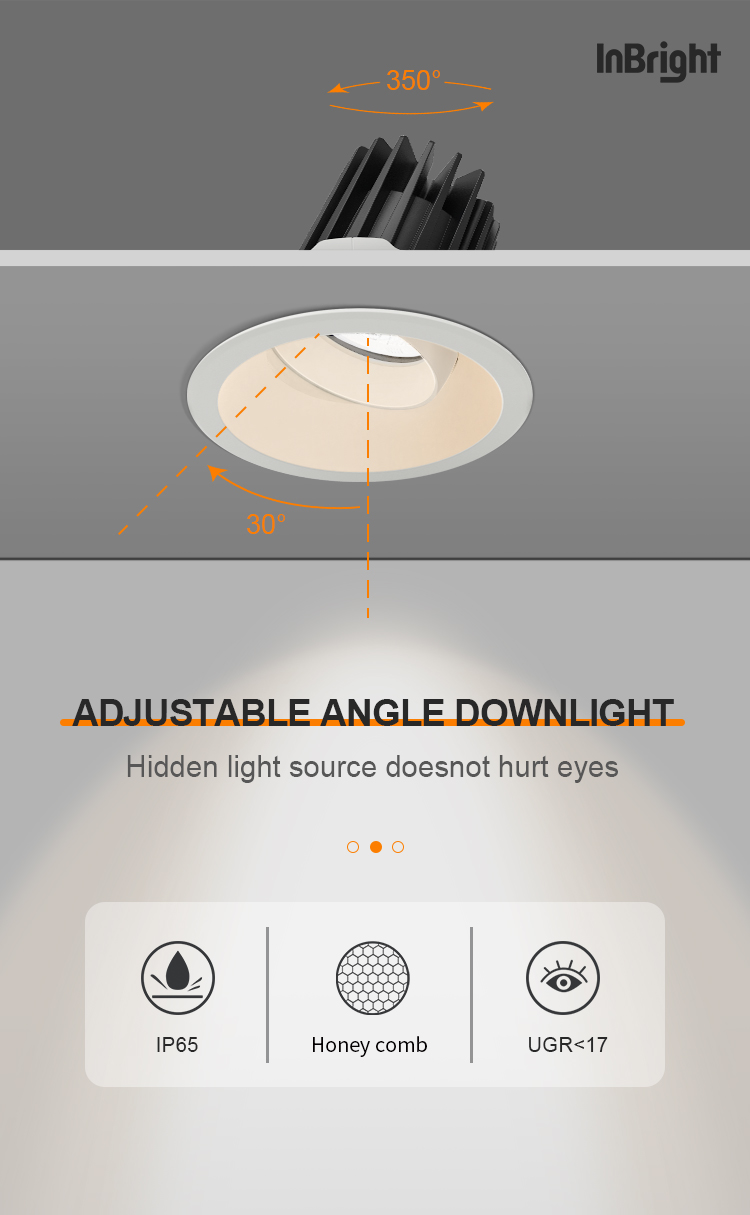

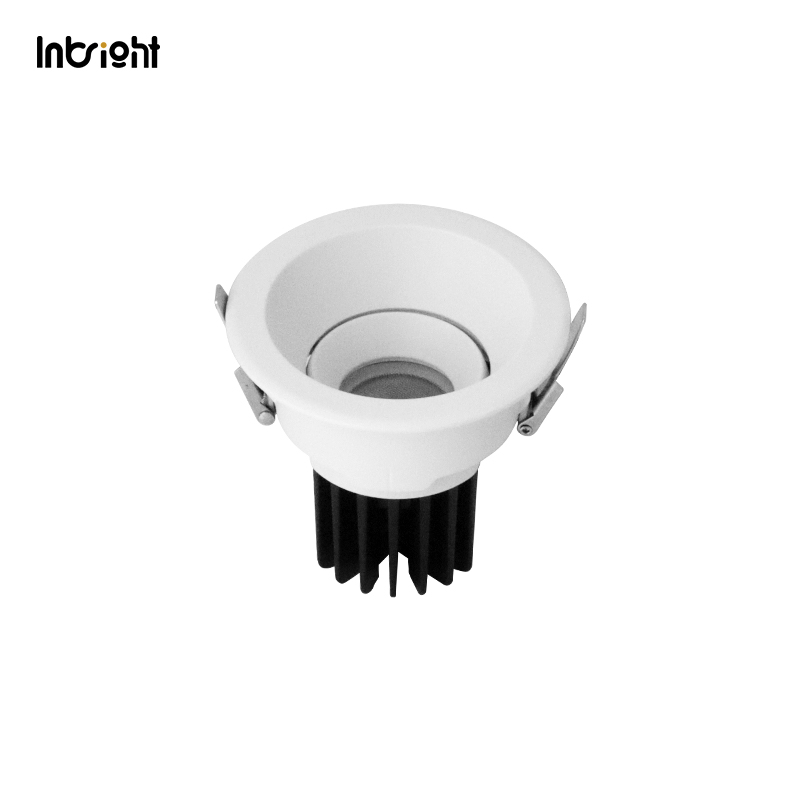

Yes, the fixture supports adjustments up to 355° horizontally and 30° vertically, offering flexibility for highlighting specific areas or artworks.
