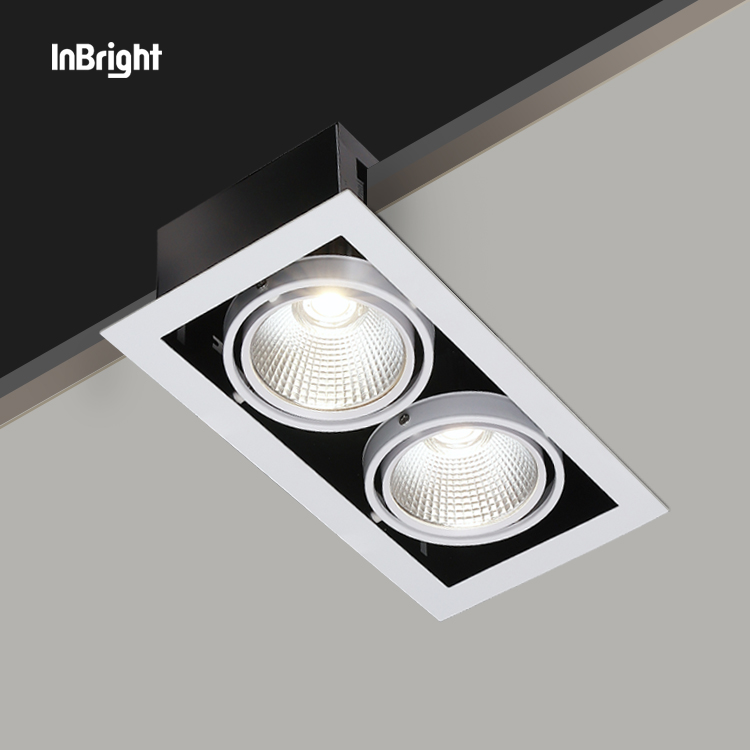

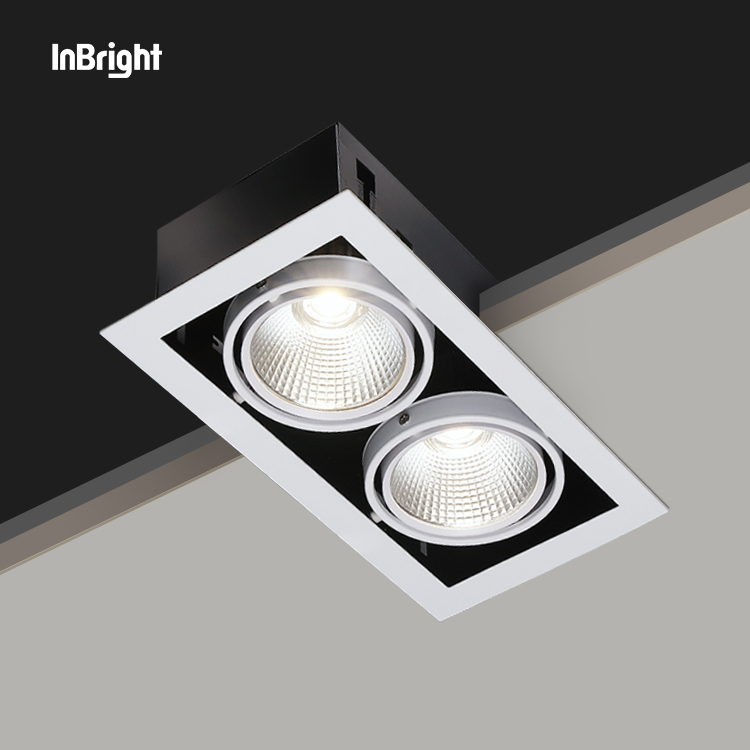

Ceiling Grille Led Spotlight 2x10w 2x20w 2x30w Double Head Adjustable Multiple Spot Light
Ceiling Grille Led Spotlight 2x10w 2x20w 2x30w Double Head Adjustable Multiple Spot Light
Ceiling Grille Led Spotlight 2x10w 2x20w 2x30w Double Head Adjustable Multiple Spot Light
Ceiling Grille Led Spotlight 2x10w 2x20w 2x30w Double Head Adjustable Multiple Spot Light
Ceiling Grille Led Spotlight 2x10w 2x20w 2x30w Double Head Adjustable Multiple Spot Light
1 / 5
Ceiling Grille Led Spotlight 2x10w 2x20w 2x30w Double Head Adjustable Multiple Spot Light
Ceiling Grille Led Spotlight 2x10w 2x20w 2x30w Double Head Adjustable Multiple Spot Light
Ceiling Grille Led Spotlight 2x10w 2x20w 2x30w Double Head Adjustable Multiple Spot Light
Ceiling Grille Led Spotlight 2x10w 2x20w 2x30w Double Head Adjustable Multiple Spot Light
Ceiling Grille Led Spotlight 2x10w 2x20w 2x30w Double Head Adjustable Multiple Spot Light

Ceiling Grille Led Spotlight 2x10w 2x20w 2x30w Double Head Adjustable Multiple Spot Light

Send Inquiry

Product Description

Double Heads Down Lights LED Ceiling Light 10W 20W 30W Multiple LED COB Recessed Anti-Glare Grille Downlight

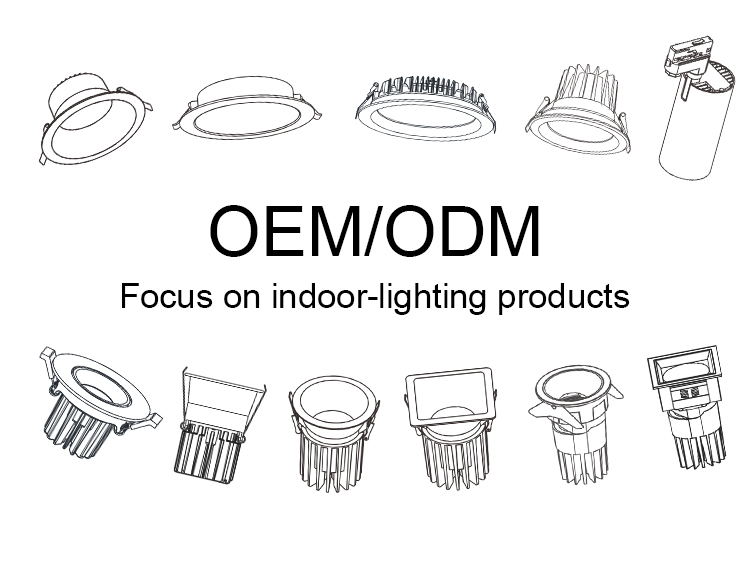

Double Heads Down Lights LED Ceiling Light

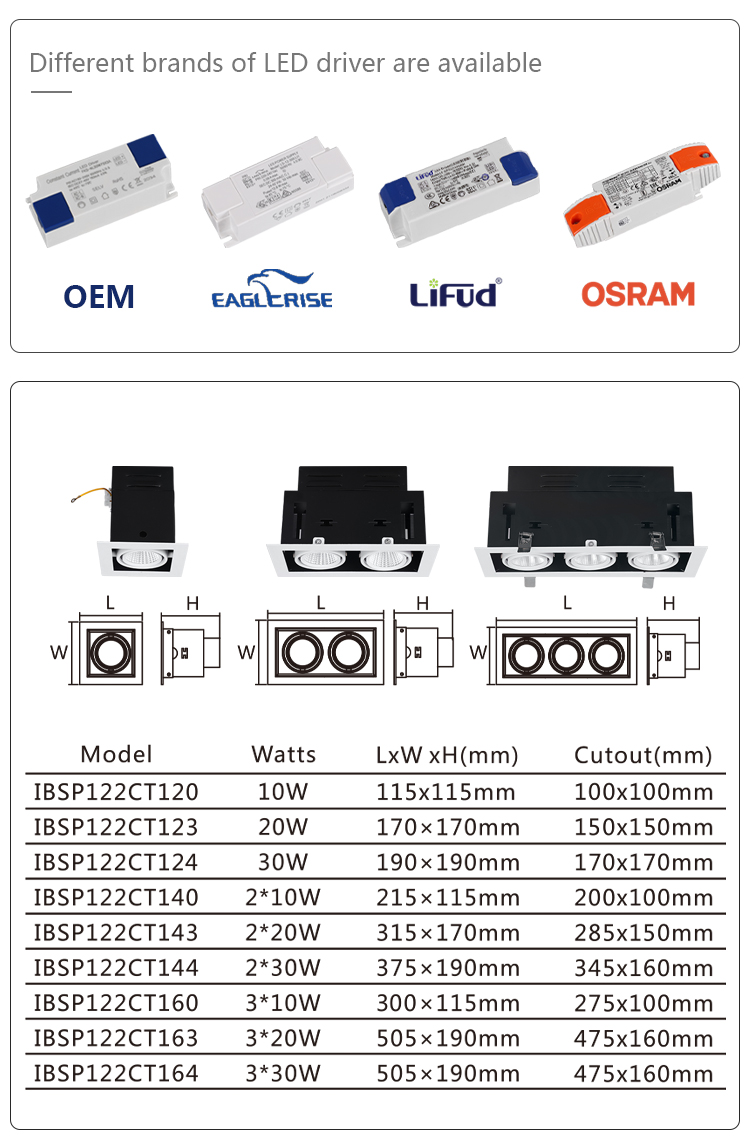

Product Parameters
Model No. Watts Lamp Outer Size Cutout Hole Size LED Color Beam Angle CRI
IBSP122CT120 10W 137×137mm 115x115mm 2700K
3000K
3500K
4000K
5000K
5700K
6500K 		15°
24°
38° 		Ra.80
Ra.90
IBSP122CT123 20W 170×170mm 140x140mm
IBSP122CT123 30W 190×190mm 160x160mm
IBSP122CT140 2 x 10W 237×137mm 215x115mm
IBSP122CT143 2 x 20W 315×170mm 285x140mm
IBSP122CT143 2 x 30w 375×190mm 345x160mm
IBSP122CT160 3 x 10W 337×137mm 312x115mm
IBSP122CT163 3 x 20W 430×170mm 400x140mm
IBSP122CT163 3 x 30W 505×190mm 475x160mm

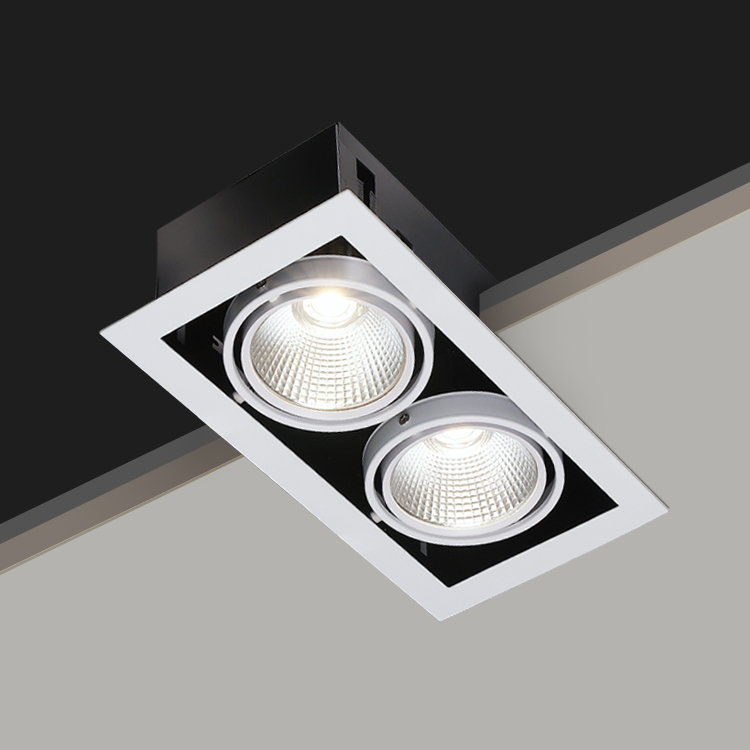

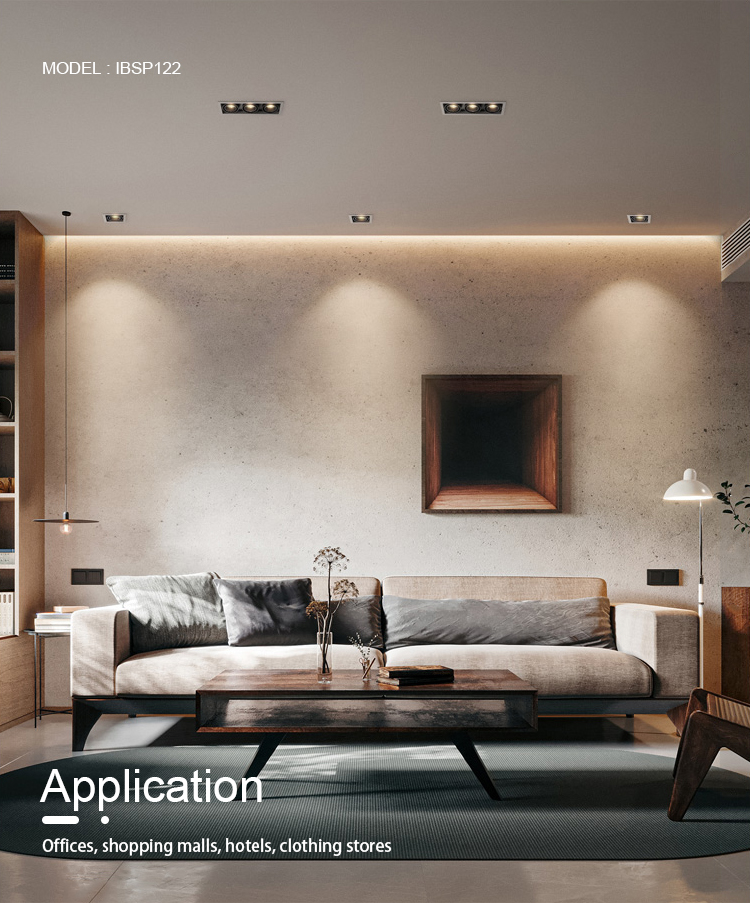

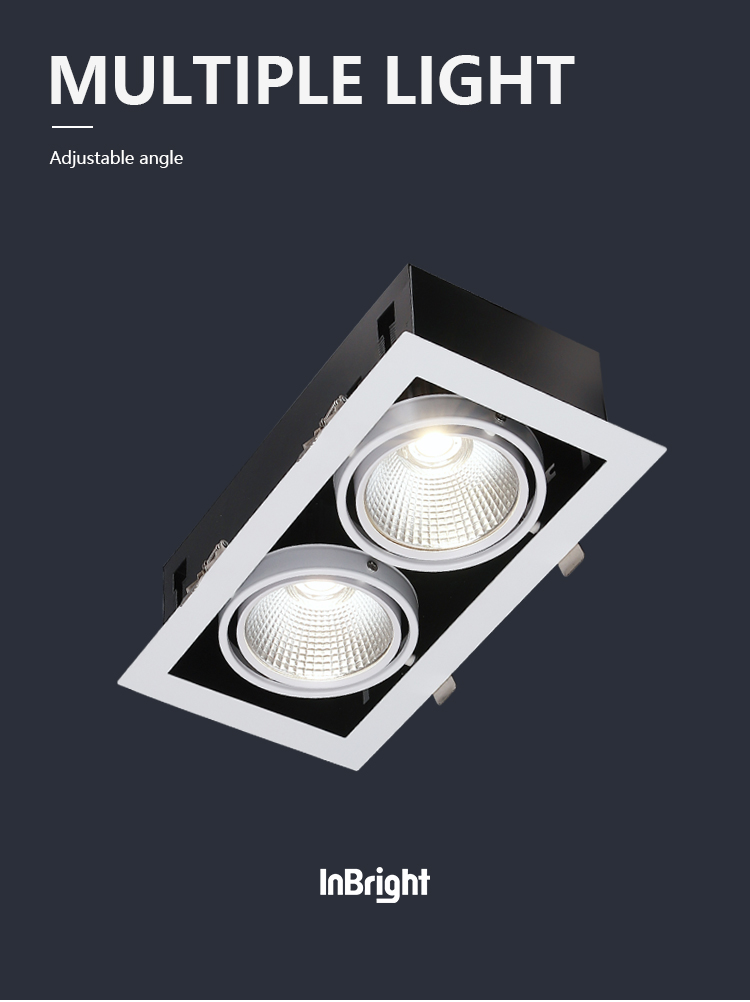

LED Downlight Detail 1 LED Downlight Detail 2 LED Downlight Detail 3

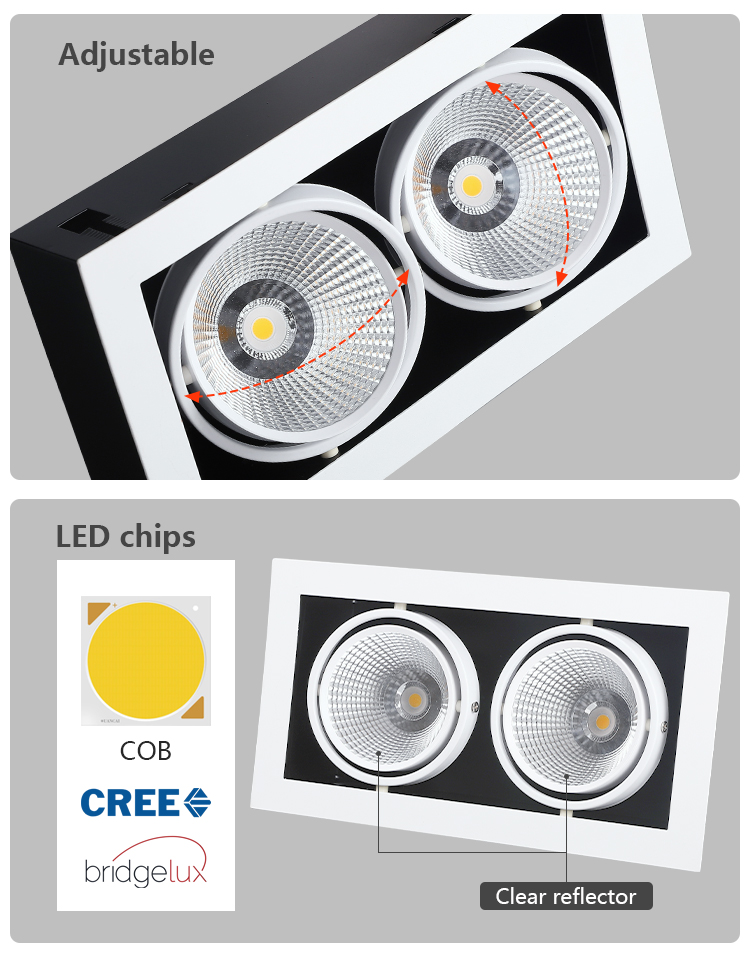

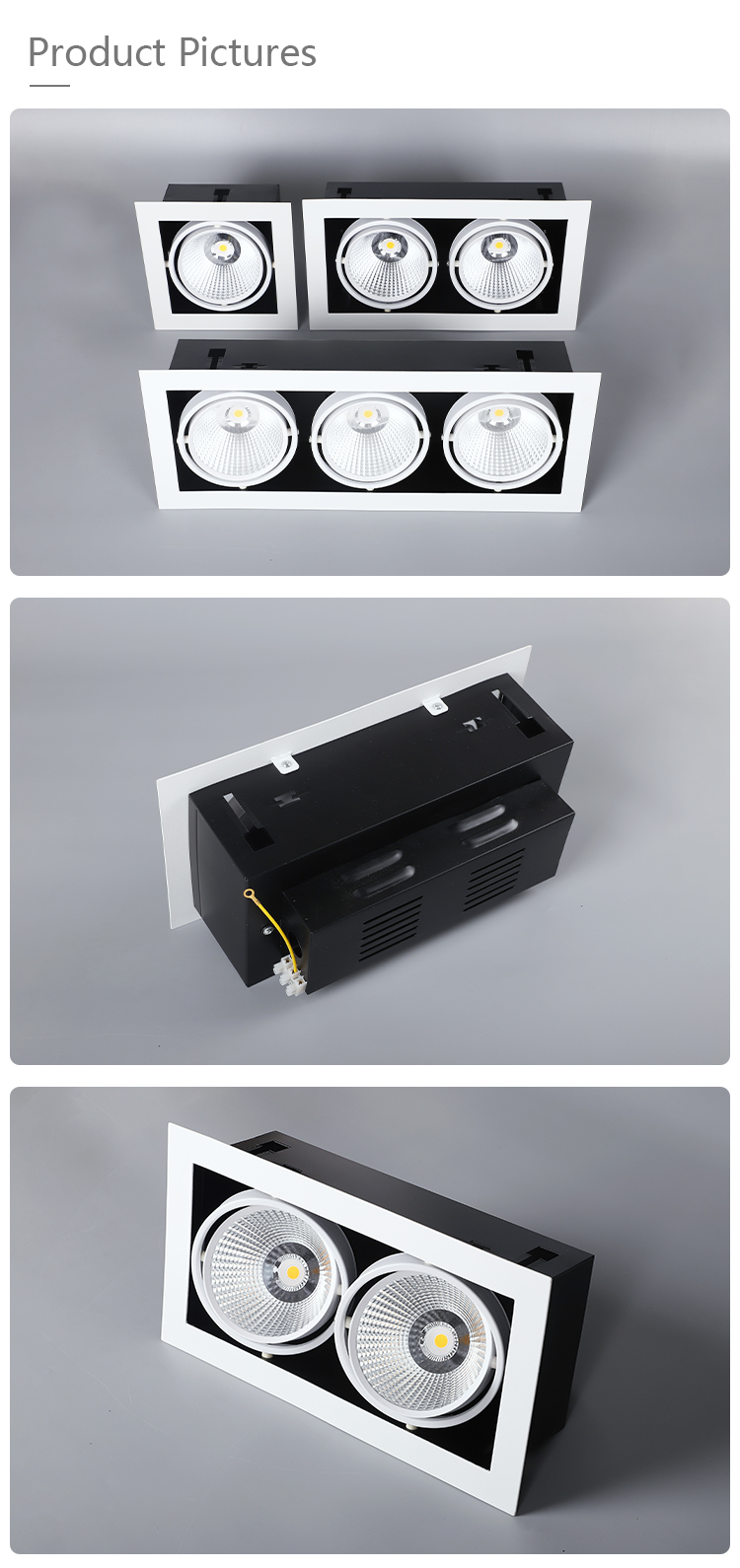

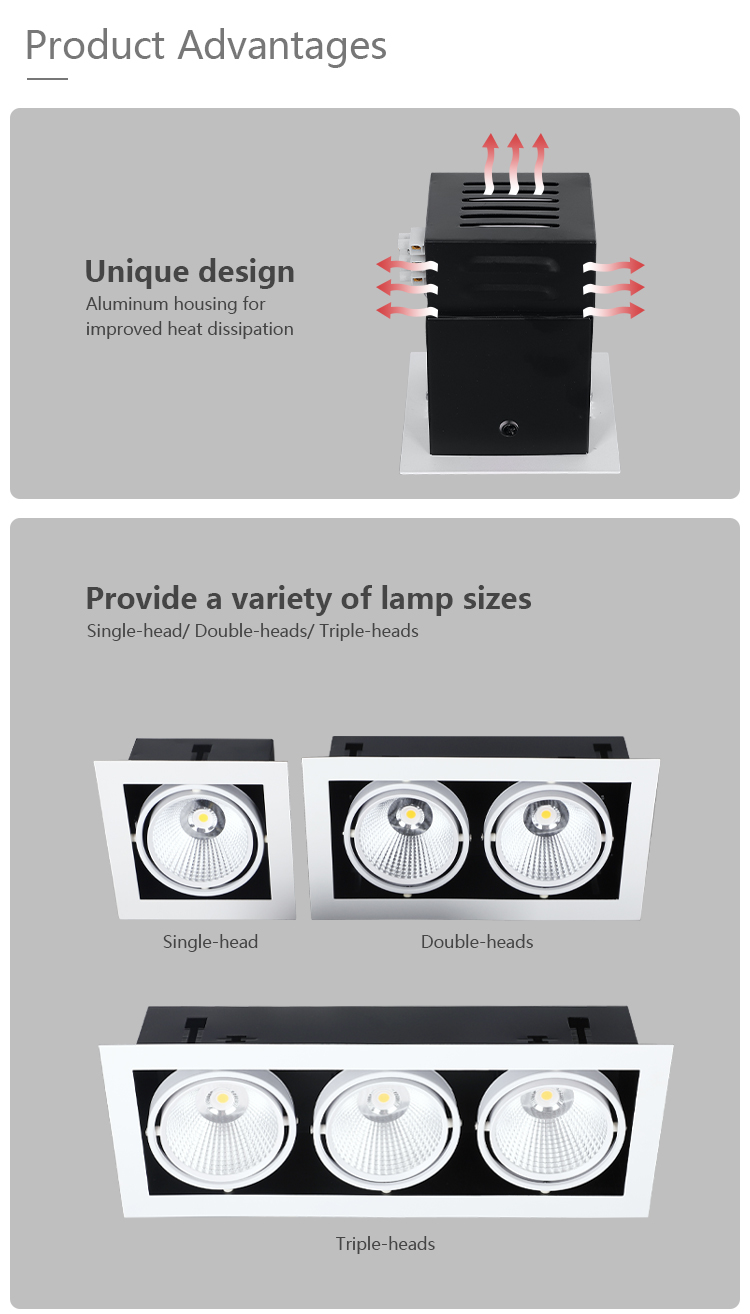

LED Downlight Detail 4 LED Downlight Detail 5 LED Downlight Detail 6
LED Downlight Dimension Guide
LED Downlight Color Options 1 LED Downlight Color Options 2 LED Downlight Color Options 3 LED Downlight Color Options 4

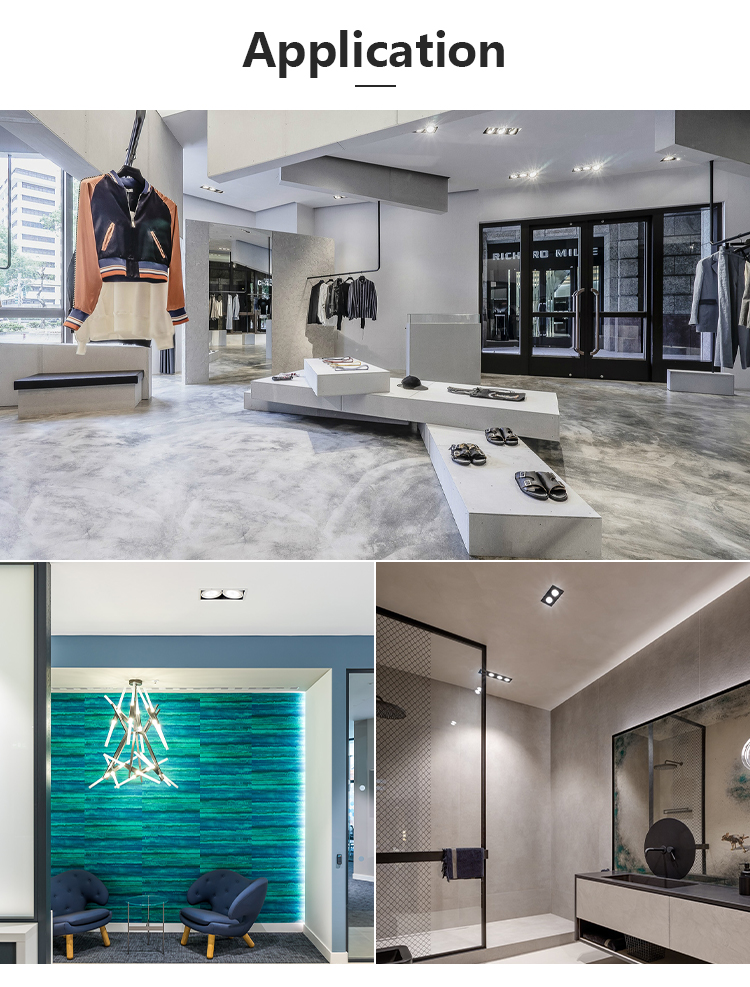

Downlight Application Showcase
Technical Drawing 1 Technical Drawing 2
Installation Step 1 Installation Step 2 Installation Step 3
Product Angle Showcase 1 Product Angle Showcase 2 Product Angle Showcase 3
Quality Standard 1 Quality Standard 2 Quality Standard 3
Product Family Overview
LED Series Selection Map
Frequently Asked Questions
Q1: What wattages are available for this series of recessed downlights?
A: This series is available in single head options of 10W, 20W, and 30W. We also offer double head (2x10W, 2x20W, 2x30W) and triple head (3x10W, 3x20W, 3x30W) configurations to fit different commercial and residential space requirements.
Q2: How does the anti-glare feature work on this grille downlight?
A: The downlights feature a deeply recessed structure combined with a special anti-glare grille. This design prevents direct eye contact with the LED light source, creating a comfortable, low-glare visual environment while maintaining efficient light output.
Q3: Which color temperatures can I choose from?
A: You can choose from a wide range of color temperatures to match your project needs: Warm White (2700K, 3000K, 3500K), Neutral White (4000K, 5000K), and Cool White (5700K, 6500K).

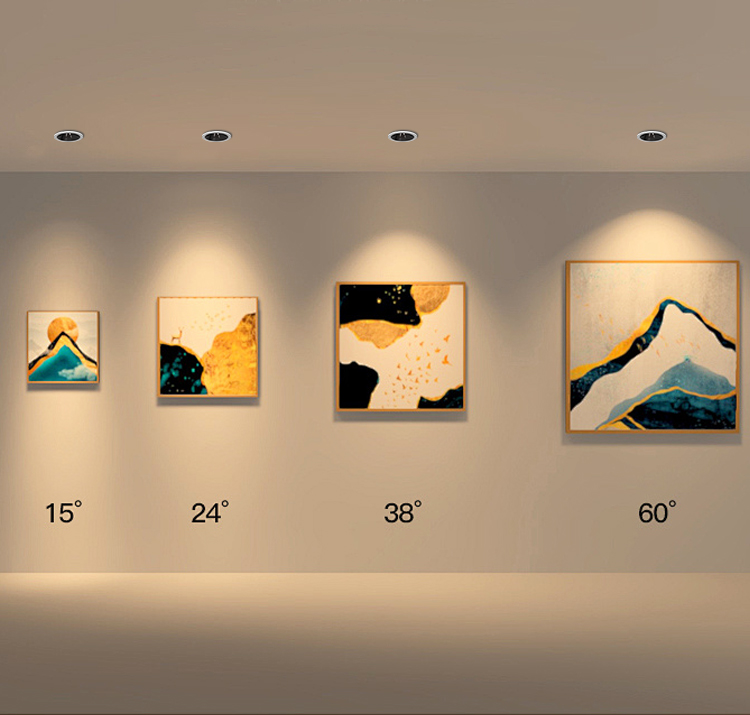

Q4: What beam angles are supported by these LED COB downlights?
A: The downlights support three professional beam angles: 15° for spotlighting, 24° for medium lighting, and 38° for wider flood lighting, allowing for precise control of light distribution.
Q5: How do I select the right cutout hole size for installation?
A: The cutout hole size depends on the specific model. It ranges from 115x115mm for the single 10W model up to 475x160mm for the triple 30W model. Please refer directly to the Product Parameters table above for the exact matching cutout size for your selected model.
Q6: What is the Color Rendering Index (CRI) of these lights?
A: We offer options of both Ra.80 and high-fidelity Ra.90. The Ra.90 option offers superior color rendering, making colors in your spaces appear vibrant, realistic, and close to natural sunlight.
